INT KOREA

INT KOREA

Coating Machine

Model

Series

Coating Machine


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

Coating Machine

With the cutting edge technology in Coating Solution, we provide the complete coating solutions in a wide range of Industry such as Electronic, Semiconductor, Pharmaceutical, Packaging and Consumer Goods to meet every customer’s requirements and guarantees the quality product.

Coating Type: Comma / Gravure / Micro / Slot Die / Kiss / Reverse / 5 Rolls Type and more Machine Speed: 50~200m/min (Depends on Web and Materials)



SLOT DIE Coating

Comma Coating Unit

Micro Coating Unit

Laminating Unit

Accumulator Unit

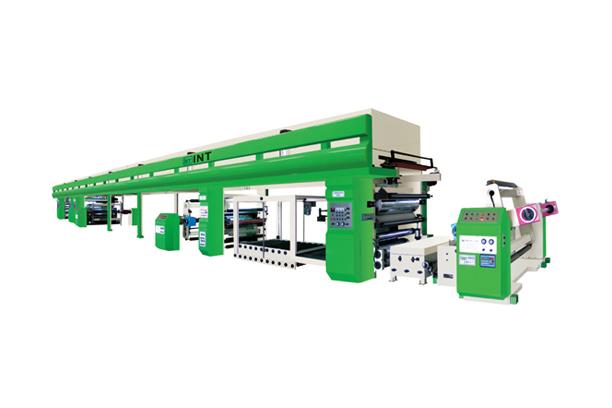

MODEL : ILC - CO Series





CONSISTING OF

1. 1st Unwinding Unit (With EPC Unit) : 1 set

2. Infeeding Unit : 1 set

3. Coating Unit : Depends on Specification (Coating Type: Comma / Gravure / Micro / Slot Die / Kiss / Reverse / 5 Rolls Type and more)

4. Dryer & Heat Exchange Unit : 6 zone

5. 2nd Unwinding Unit: 1 Set

6. Laminating Unit: 1 Set

7. Outfeeding Unit : 1 set

8. Accumulator Unit : Depends on Specification

9. Rewinding & Auto Splicing Unit: 1 set

10. Operating Panel/Main Control Cabinet : 1 lot





MAJOR SPECIFICATION

1. Web
a) OPP Film : 20 ~ 60 microns
b) CPP Film : 25 ~ 60 microns
c) Polyester : 12 ~ 30 microns

2. Web Width : Max. 1600 mm

3. Machine Speed : Max. 150 m/min

4. Working Speed : Max. 120 m/min

5. Guide Roll Width: Max 1,700mm

6. Winding Diameter : Max. ø800 mm

* Specification can be adjustable depends on customer’s requirements
