INT KOREA

INT KOREA

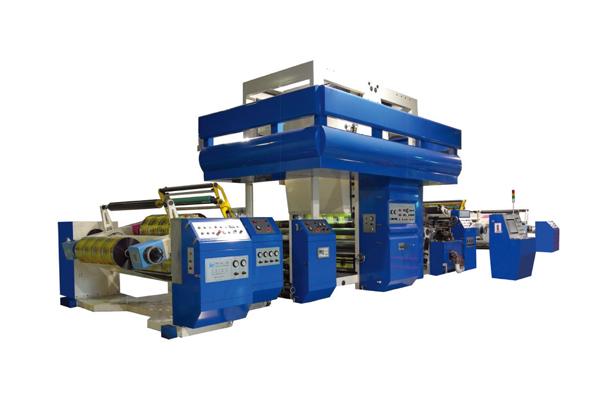

Single Extrusion Laminating Machine

Model

Series

Extrusion Laminating Machine


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

Single Extrusion Laminating Machine

INT is specialized in the design and manufacture of Single Extrusion Coating and Laminating Machine. We deliver the most optimized machine with innovative technology for all packaging Industry.

Machine Speed upto 250m/min
Working Speed 200m/min



Main Control Panel

Extruder Unit

T-DIE (CLOREN, USA)

Winding Unit



MODEL: ILC-EL-CO Series



CONSISTING OF

1. Unwinding & Auto Splicing Unit (With EPC Unit) : 1 set

2. Infeeding Unit : 1 set

3. Anchor Coating Unit : 1 set

4. Dryer & Heat Exchange Unit : 1 set

5. Extrusion Die (CLOREN – USA / EDI – USA / JYHOKU – Japan)

6. Extruder (Ø100mm) : 1 set

7. Laminating Unit : 1 set

8. Sandwich Winding & Auto Splicing Unit : 1 set

9. Powder Spray Unit : 1 set

10. Rewinding & Auto Splicing Unit : 1 set

11. Operating Panel/Main Control Cabinet : 1 lot





MAJOR SPECIFICATION

1. Web
a) OPP Film : 20 ~ 60 microns
b) CPP Film : 20 ~ 60 microns
d) Polyester : 12 ~ 25 microns
e) O – Nylon : 15 ~ 25 microns
f) AL-Foil : 6 ~ 40 microns
g) Paper : 20 ~ 80gsm
h) Metalized Film : 10 ~ 30 microns
i) RESIN : LDPE, PP, EVA, EAA

2. Web Width: Max. 1,500mm

3. Machine Speed : Max. 250 m/min

4. Working Speed : Max. 200 m/min

5. Guide Roll Width: Max. 1,600mm

6. Winding Diameter : Max. ø800 mm

7. Sandwich Winding Diameter : Max. ø600 mm

* Specification can be adjustable depends on customer’s requirements





Signle Extrusion Coating and Laminating machines are usually customized and configured for variety of applications. INT’s Extrusion Laminating Machine is fully integrated, process a wide range of different materials such as Film, Aluminum Foil, Paper and Board.
