INT KOREA

INT KOREA

Gravure Printing Machine

Model

Series

Gravure Printing Machine


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

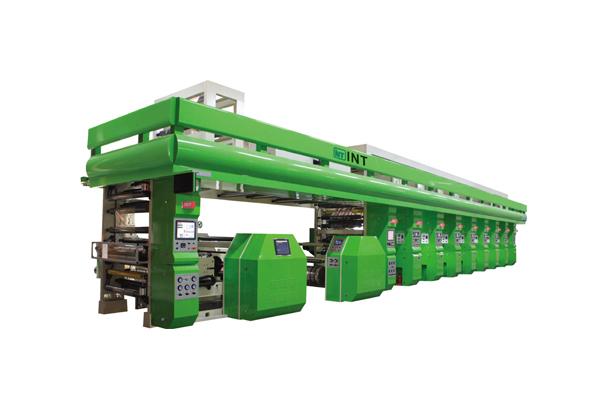

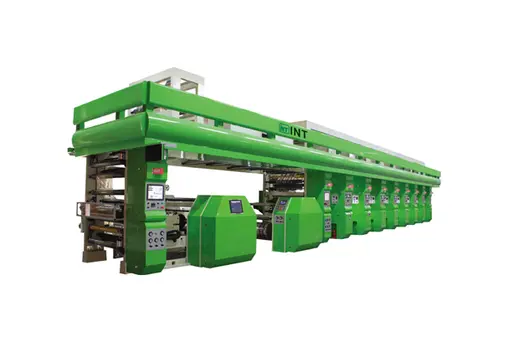

Gravure Printing Machine (Line Driving ‒ Mechanical Type)

The best optimized Gravure Printing Machine for Flexible Packaging Industry.
It’s highly efficient and economical model for both long and short production.

Machine Speed upto 250m/min
Working Speed 230m/min



Printing Unit

Color Mark Displayer

Turn Bar Unit

Winding Unit





MODEL: ILC-PR Series

CONSISTING OF

1. Unwinding & Auto Splicing Unit : 1 set

2. Infeeding Unit : 1 set

3. Printing Unit: Max. 12

4. Outfeeding Unit : 1 Set

5. Rewinding & Auto Splicing Unit : 1 Set

6. Operating(Touch) Panel/Main Control Cabinet : 1 Set



MAJOR SPECIFICATION

Number of Color: 6~12 Colors (Mechanical Line Driving System)

2. Web
a) OPP: 15 ∼ 60 micron
b) CPP: 20 ∼ 60 micron
c) PET: 10 ∼ 25 micron
d) LDPE: 25 ∼ 80 micron
d) PAPER: 28 ∼ 80 gsm


3. Guide Roll Width: Max. 1,600mm

4. Web Width: 600~1,500mm

5. Machine Speed: 250 m/min

6. Working Speed: Max. 230 m/min (OPP Film working)

7. Winding Diameter: Max. Ø1,000 mm

* Specification can be adjustable depends on customer’s requirements



Highly efficient Gravure Printing Machine, satisfies every customer’s demand for a compact, cost efficient and highly productive machine. It’s the best optimized machine for short, medium and long run production of great quality in flexible printing work.
