HYUNDAI WIA

HYUNDAI WIA

Machine (Line Center)

Model

Series

FA


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

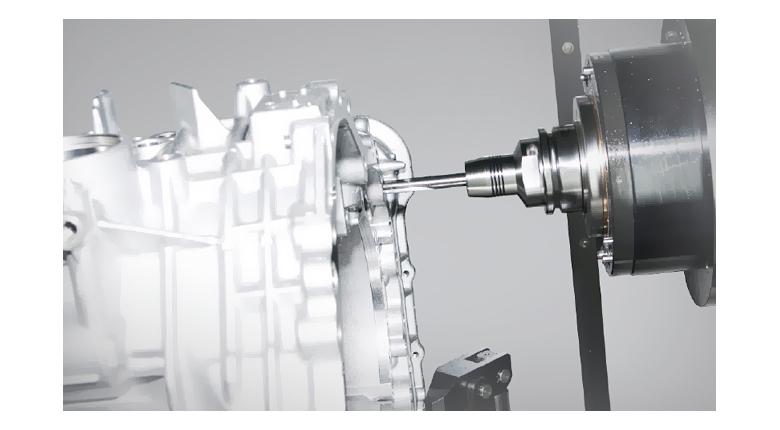

Optimized for passenger car T/M case & housing and engine cylinder block & head processing

Quick tool change speed (3.0 sec.)

Minimum installation area

Common bed for centralized/single coolant

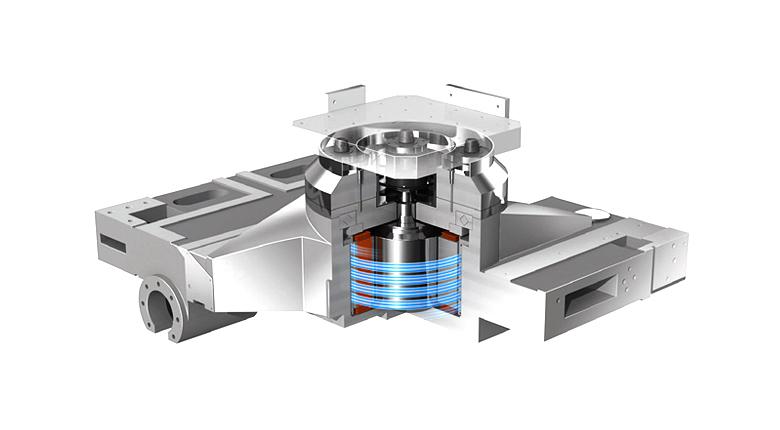

A-axis/B-axis NCRT applicable to respond to diverse processes



Specifications

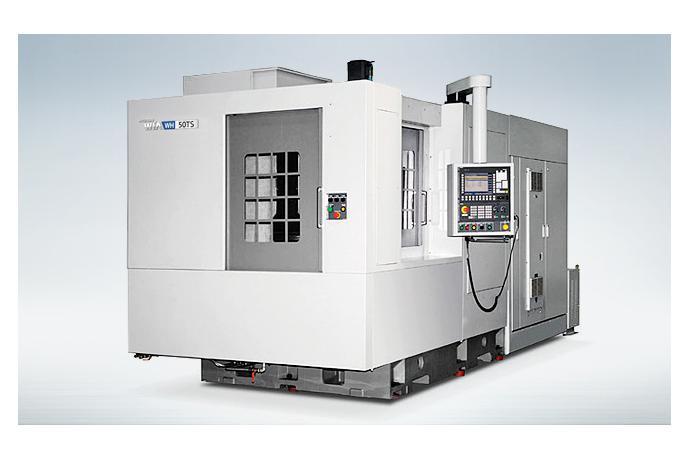

Description Unit WH50TS
Table Size mm Ø500
Max. Load Capacity kg 500

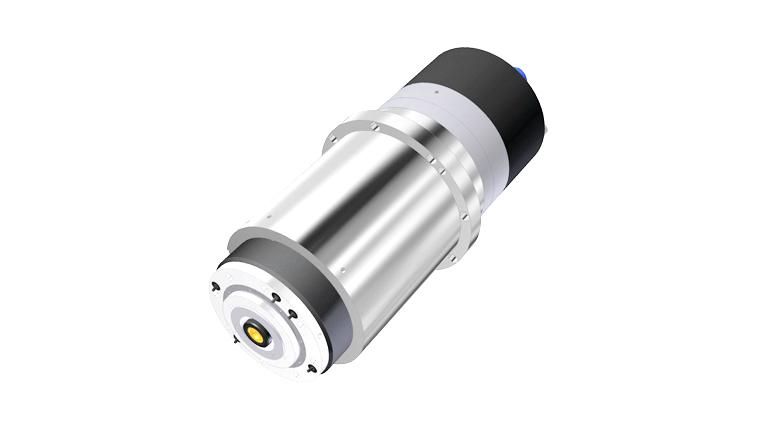

Spindle Driving Method - Built in
Spindle Taper - HSK-A63
Spindle RPM r/min 16,000
Spindle Power kw 28
Spindle Torque Nm 63

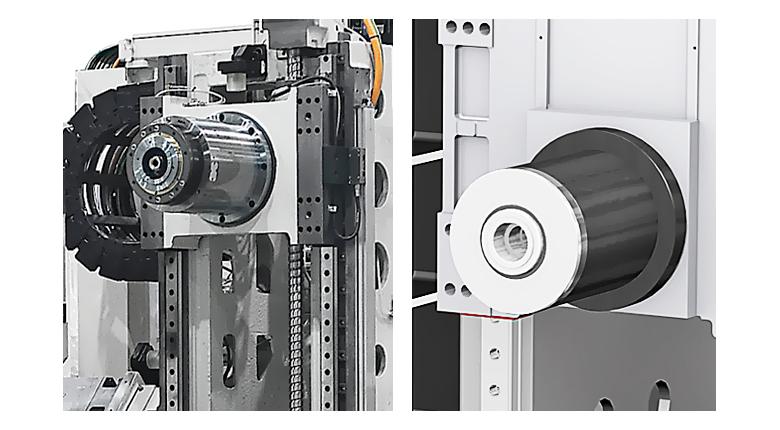

Travel(X/Y/Z) mm 630/560/630

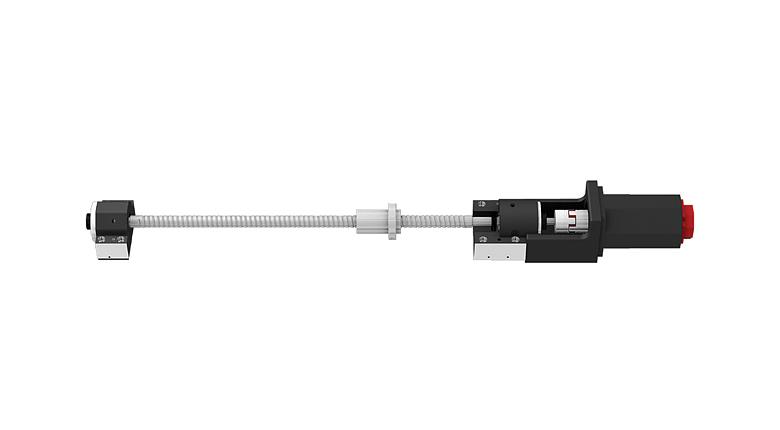

Rapid Feed Rate(X/Y/Z) m/min 62/62/62
Slide Type - LM
No. of Tools EA 40
Tool Change Time
(Chip To Chip)
sec 3
CNC - S840D
