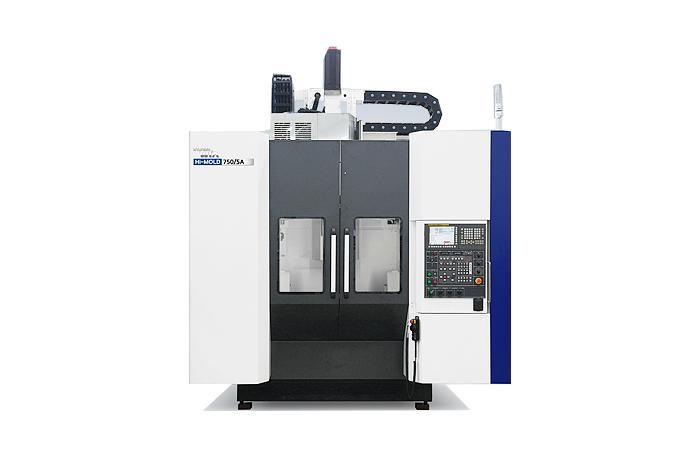

HYUNDAI WIA

HYUNDAI WIA

5-Axis M/C

Model

Series

Vertical Machining Centers


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

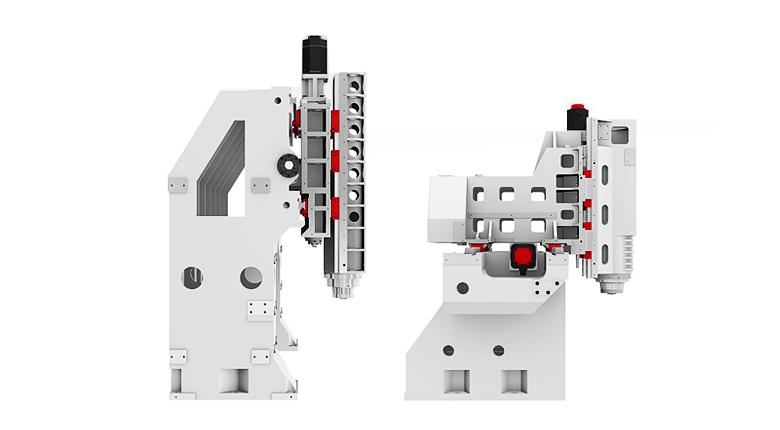

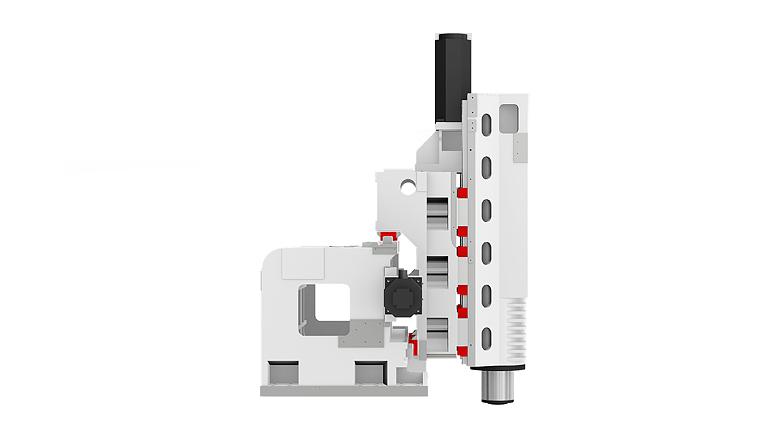

Double column structure

Highly accurate main spindles with ultra-precise angular contact bearings

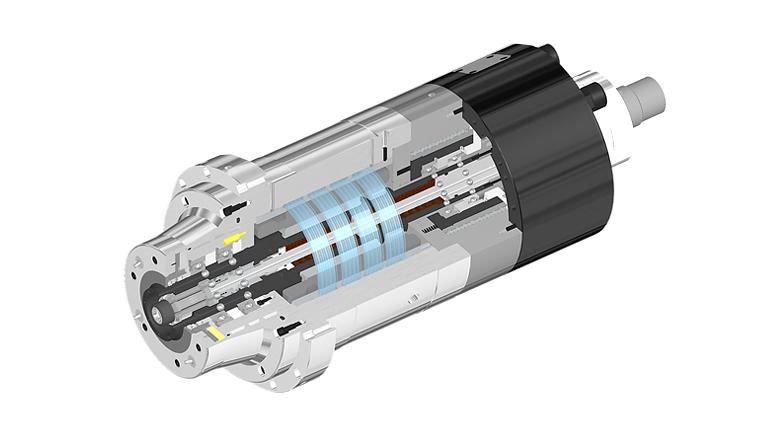

Built-in ultra-high-speed (15,000rpm) main spindle for highest quality of molds

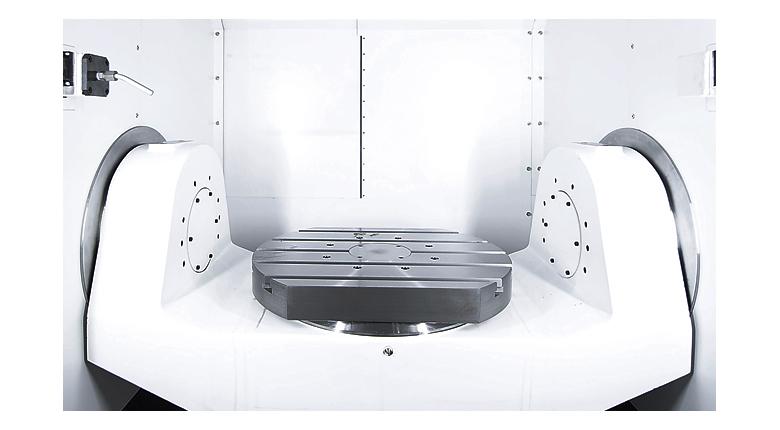

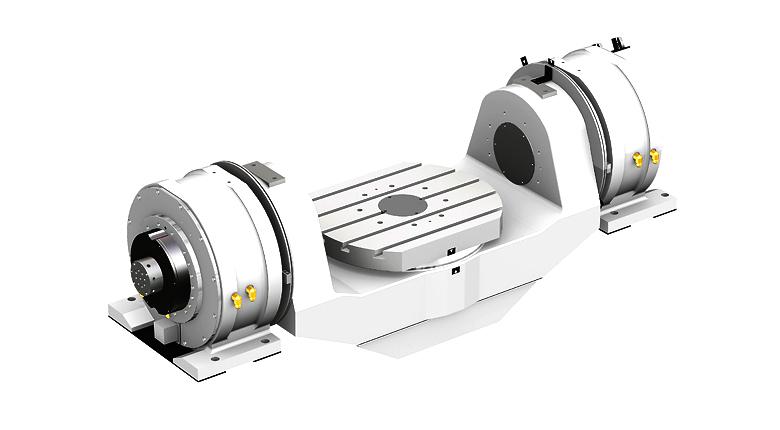

Built-in 5-axis table bed to satisfy various processing needs

Hyundai WIA mold package delivers optimal processing of mold parts



Specifications

Description Unit Hi-MOLD750/5A
Table Size mm Ø630×500
Max. Load Capacity kg 500
Spindle Driving Method - Built in
Spindle Taper - HSK-A63
Spindle RPM r/min 15,000
Spindle Power kw 25/22
Spindle Torque N.m 167/95
Travel(X/Y/Z) mm 650/765(+350ATC)
/510
Travel(A/C) deg 150°(+30°~-120°)/360°
Rapid Feed Rate(X/Y/Z) m/min 50/50/50
Rapid Feed Rate(A/C) r/min 40/50
Slide Type - LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)
sec 4.5
CNC - F31iA5
