HYUNDAI WIA

HYUNDAI WIA

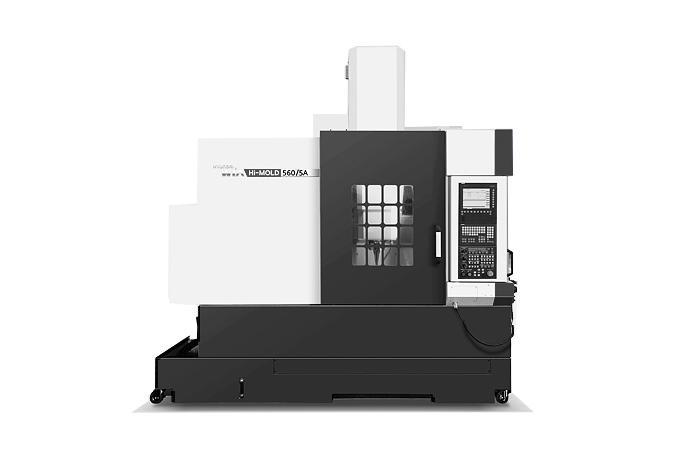

5-Axis M/C

Model

Series

Vertical Machining Centers


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

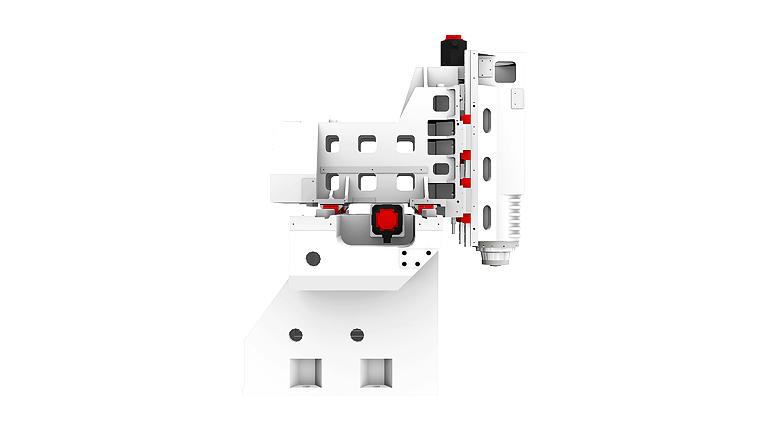

Highly reliable wall type structure

Highly accurate main spindles with ultra-precise angular contact bearings

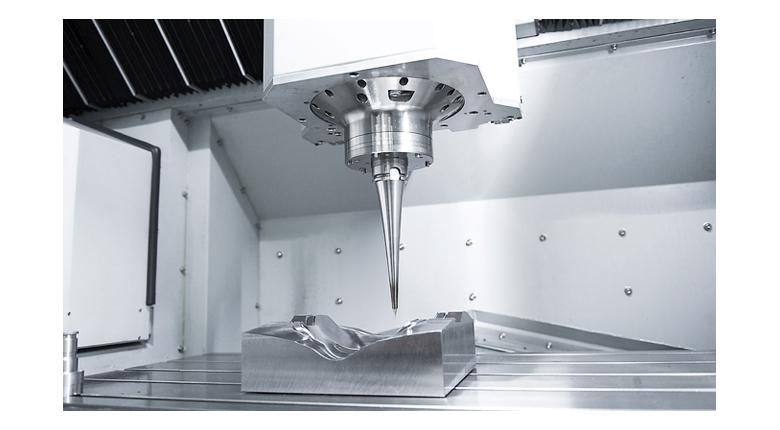

Built-in ultra high-speed (40,000rpm) main spindle for the highest quality of molds (Opt.)

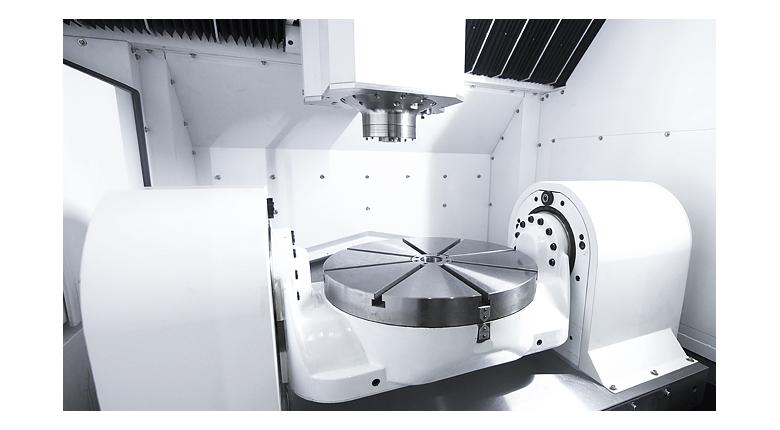

Built-in 5-axis table to satisfy various processing needs (Hi-MOLD560/5A)

Hyundai WIA mold package delivers optimal processing of mold parts

Latest SIEMENS 840D Controller for various software needs



Specifications

Description Unit Hi-MOLD560/5A
Table Size mm Ø500×270
Max. Load Capacity kg 250
Spindle Driving Method - Built in
Spindle Taper - HSK-A63
Spindle RPM r/min 24,000
Spindle Power kw 33/25
Spindle Torque N.m 96/72.5
Travel(X/Y/Z) mm 1,000(+350 ATC)
/560/450
Travel(A/C) deg +30° ~ -120°/360°
Rapid Feed Rate(X/Y/Z) m/min 50/50/50
Rapid Feed Rate(A/C) r/min 100/170
Slide Type - LM

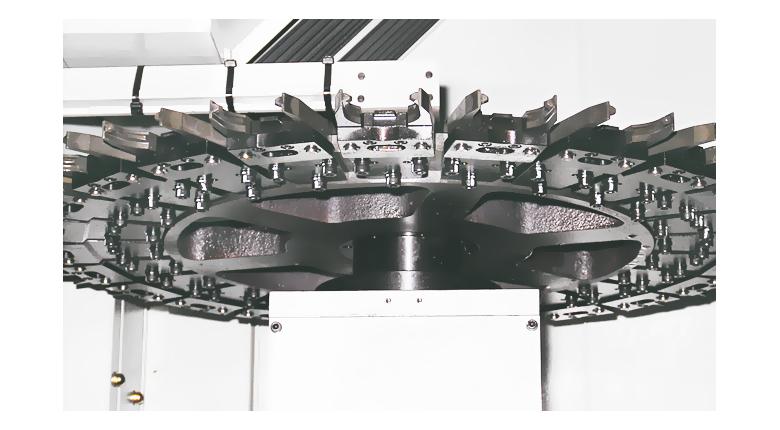

No. of Tools EA 24
Tool Change Time
(Chip To Chip)
sec 5.5
CNC - S840D
