HYUNDAI WIA

HYUNDAI WIA

Mold Machining

Model

Series

Vertical Machining Centers


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

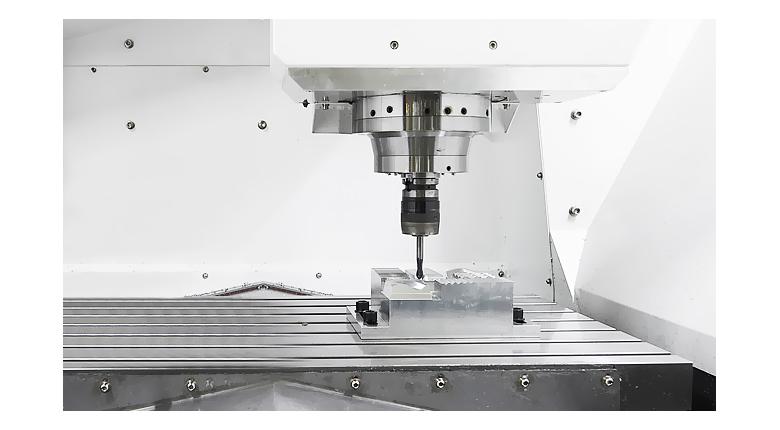

Wall type machining center for utmost quality of molding

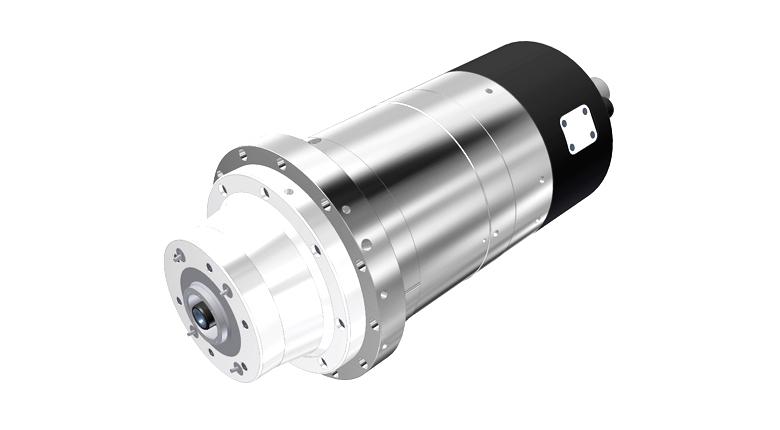

High-precision spindle design with precision angular contact bearing

20,000 rpm built-in spindle for high quality surface finish (Option : 24,000 rpm)

Ball screw nut cooling system on all axes is standard

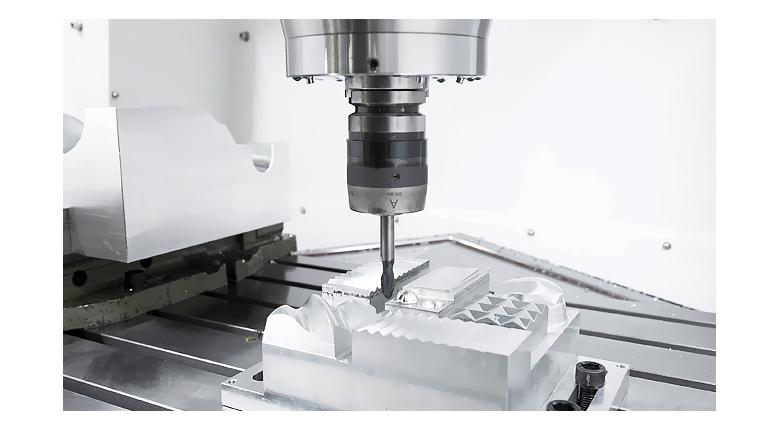

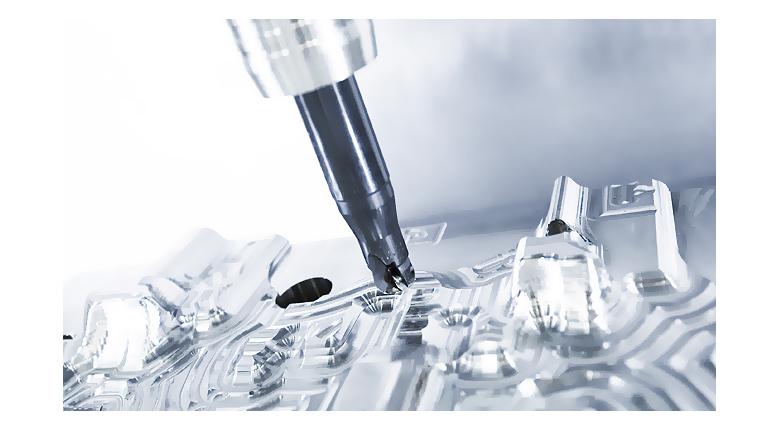

Hyundai WIA mold package delivers optimal processing of mold parts



Specifications

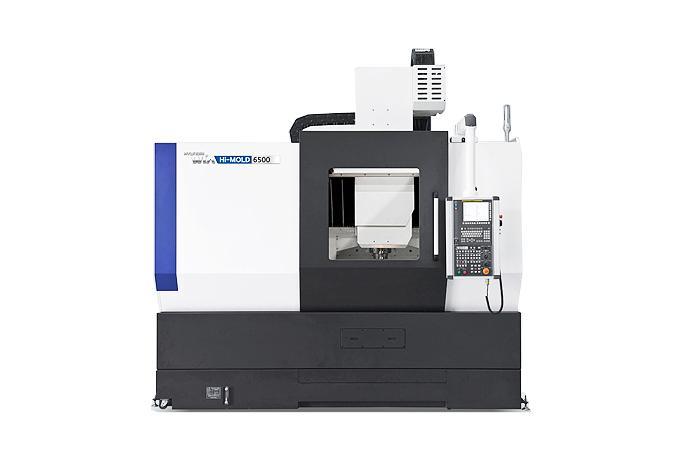

Description Unit Hi-MOLD6500

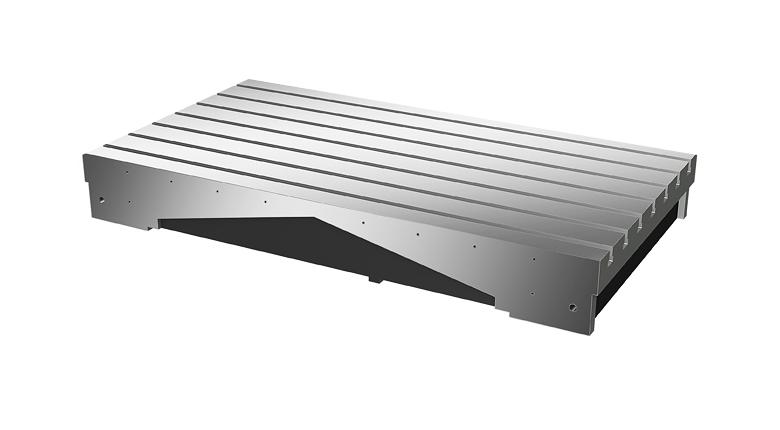

Table Size mm 1,200 x 650
Max. Load Capacity kg 1000
Spindle Driving Method - Built in
Spindle Taper - BBT40
Spindle RPM r/min 20,000
Spindle Power kw 22/18.5
Spindle Torque N.m 53/37(39/27.3)
Travel(X/Y/Z) mm 1,100/650/550
Rapid Feed Rate(X/Y/Z) m/min 40/40/40
Slide Type - LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)
sec 5
CNC - F31iB
