HYUNDAI WIA

HYUNDAI WIA

Heavy-Duty Cutting

Model

Series

Vertical Machining Centers


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

Main spindle with super precision angular contact bearing

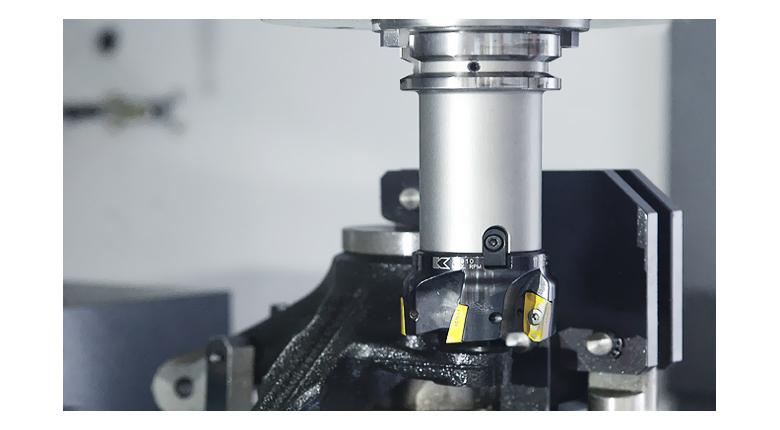

High-powered, high-torque main spindle for superb heavy duty cutting

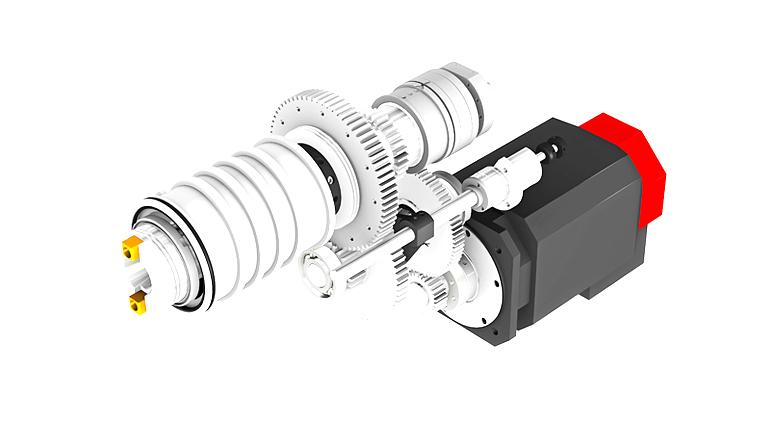

Main spindle with gear drive for high-power and high torque

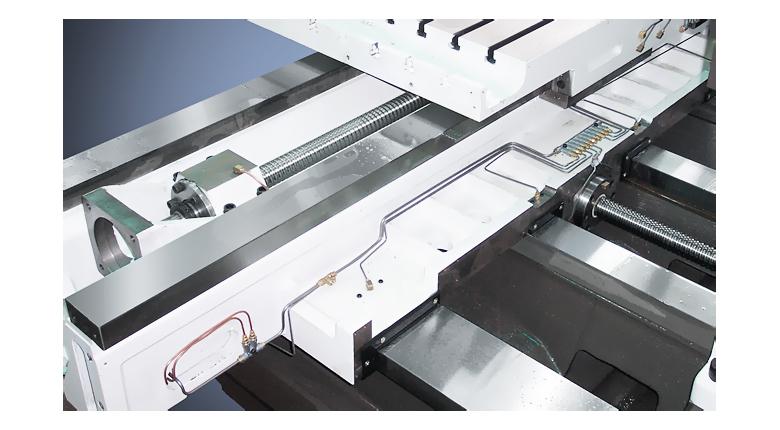

Box guideways for exceptional feeding during heavy duty cutting

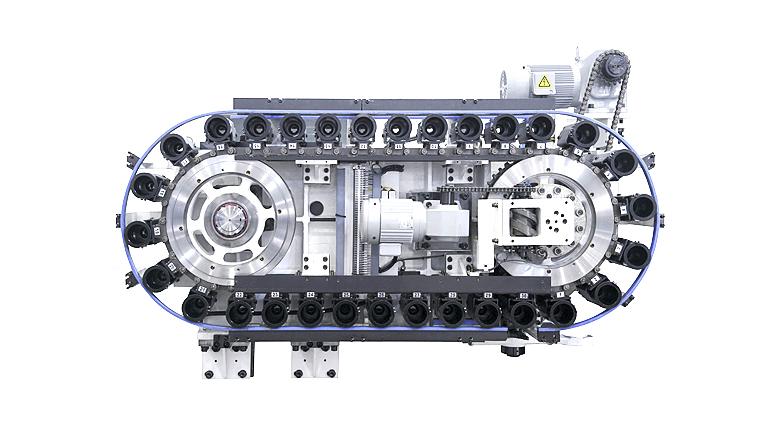

Latest Servo ATC for highly efficient tool exchanging



Specifications

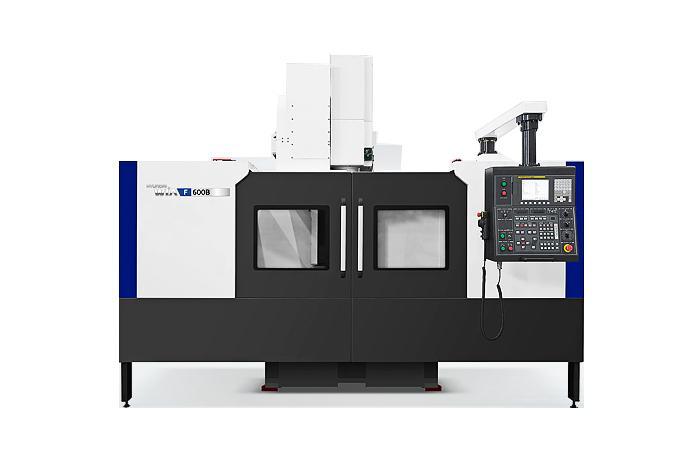

Description Unit F600B

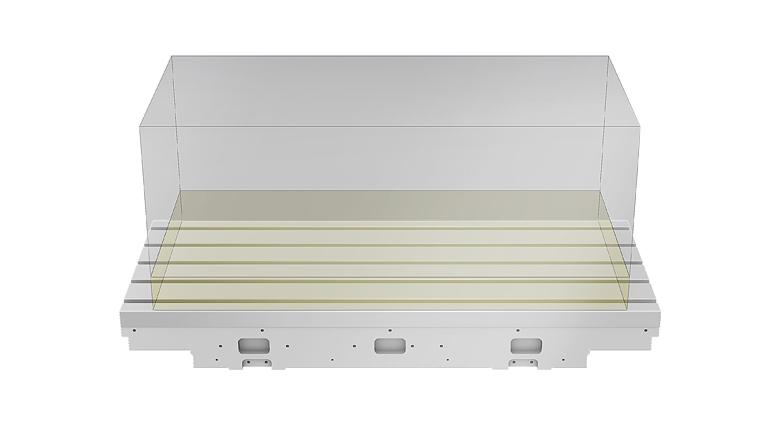

Table Size mm 1,600×600
Max. Load Capacity kg 1000
Spindle Driving Method - GEAR
Spindle Taper - BT50
Spindle RPM r/min 4,500
Spindle Power kw 15/11
Spindle Torque N.m 731/535
Travel(X/Y/Z) mm 1,150/600/600
Rapid Feed Rate(X/Y/Z) m/min 24/24/24
Slide Type - BOX
No. of Tools EA 20
Tool Change Time
(Chip To Chip)
sec 6.8
CNC - H/W FANUC i
