HYUNDAI WIA

HYUNDAI WIA

High Speed M/C

Model

Series

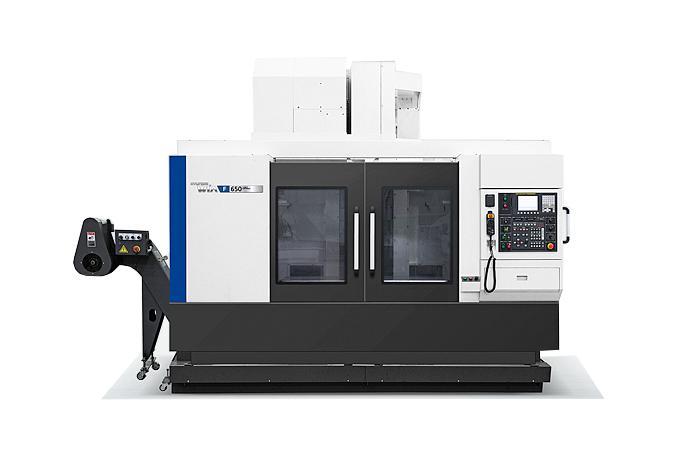

Vertical Machining Centers


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

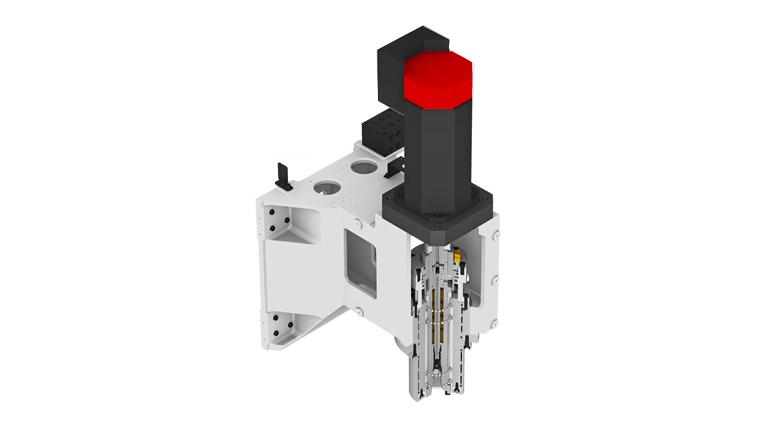

High accuracy headstock features a high precision angular contact bearing

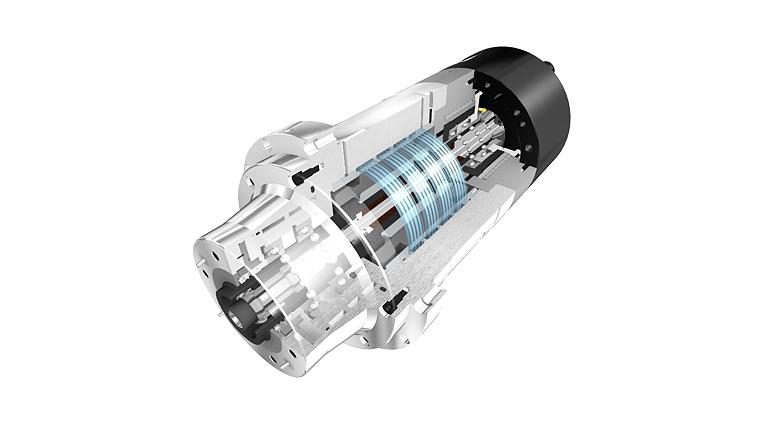

High power, high torque headstock for precision in cutting

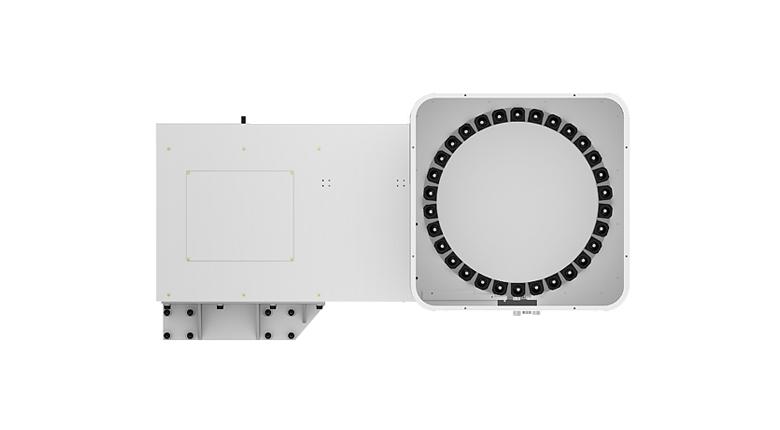

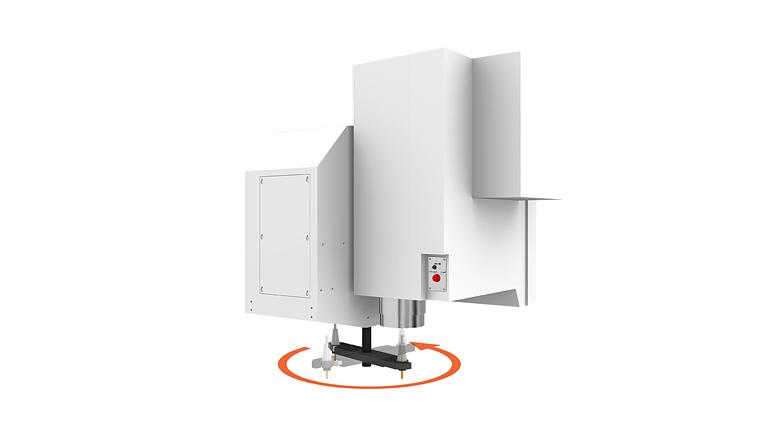

Latest Servo ATC implementation for the quickest tool exchange

Fast feeding through the 4 Way Y-axis (F650 Plus, F650/50)

Front Roller Guide Way for high accuracy cutting (F500/50, F650/50)

Latest SIEMENS 828D controls with wide range of supporting software (F400)



Specifications

Description Unit F650PLUS F650/50
Table Size mm 1600x650 1600x650
Max. Load Capacity kg 1300 1300
Spindle Driving Method - Belt Belt
Spindle Taper - BBT40 BT50
Spindle RPM r/min 8,000 6,000
Spindle Power kw 15/11 15/11
Spindle Torque N.m 286/143 358/179
Travel(X/Y/Z) mm 1400/660/635 1400/660/635
Rapid Feed Rate(X/Y/Z) m/min 36/36/30 36/36/30
Slide Type - LM LM
No. of Tools EA 30 24
Tool Change Time
(Chip To Chip)
sec 3.8 6
CNC - H/W FANUC i H/W FANUC i
