HYUNDAI WIA

HYUNDAI WIA

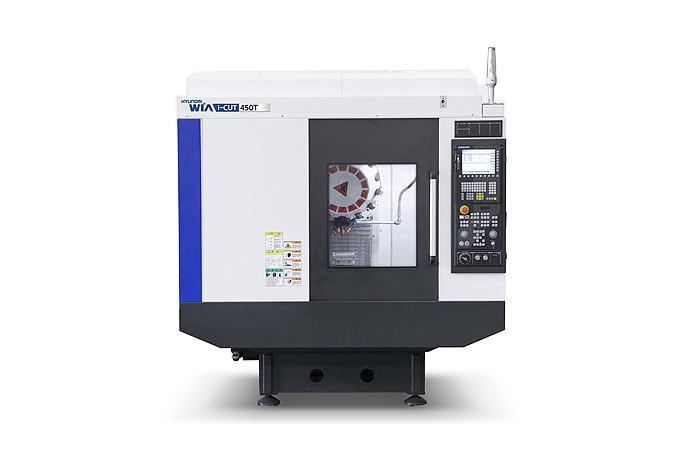

Tapping Center

Model

Series

Vertical Machining Centers


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

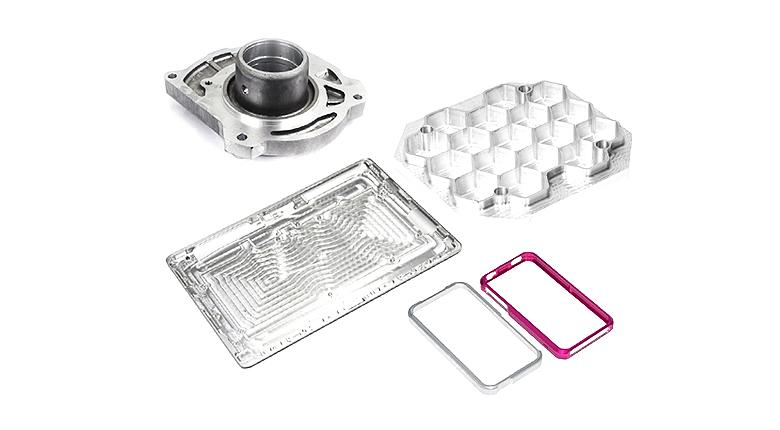

450mm of Y-axis travel optimized for small & mid-size parts machining

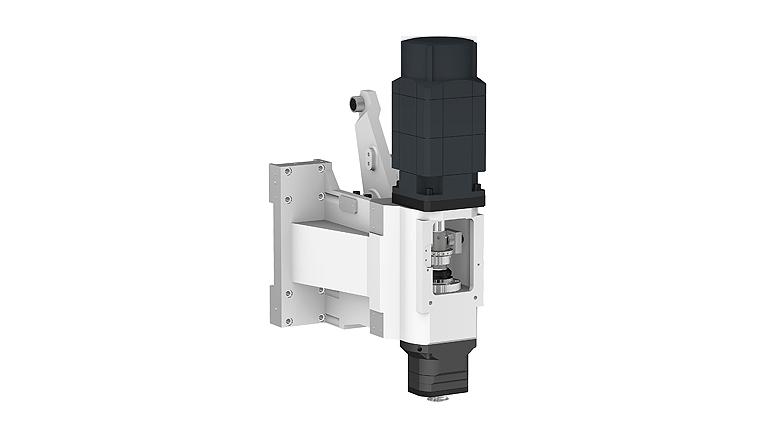

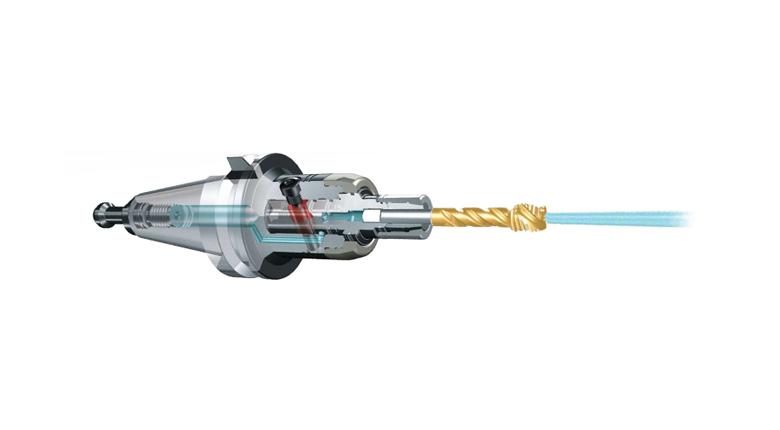

High-speed (max. 15,000 rpm), direct-connection spindle

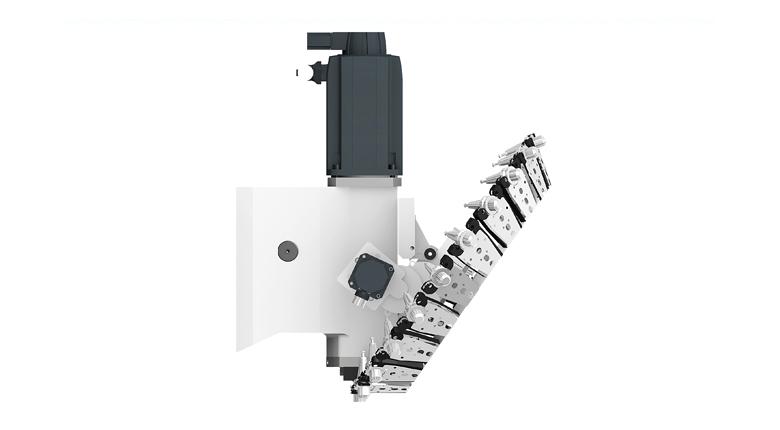

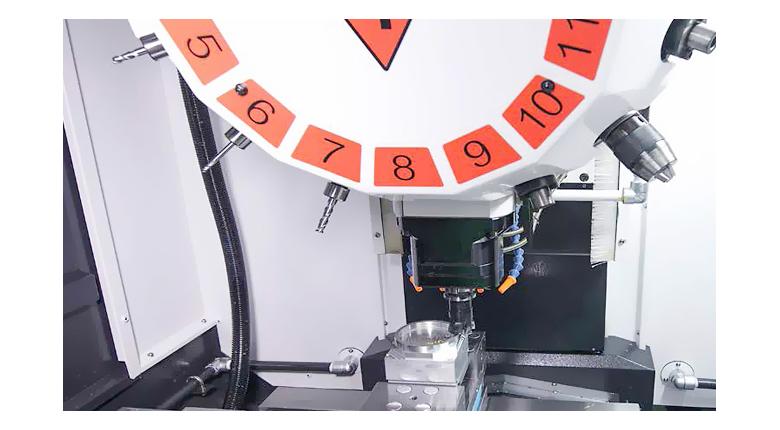

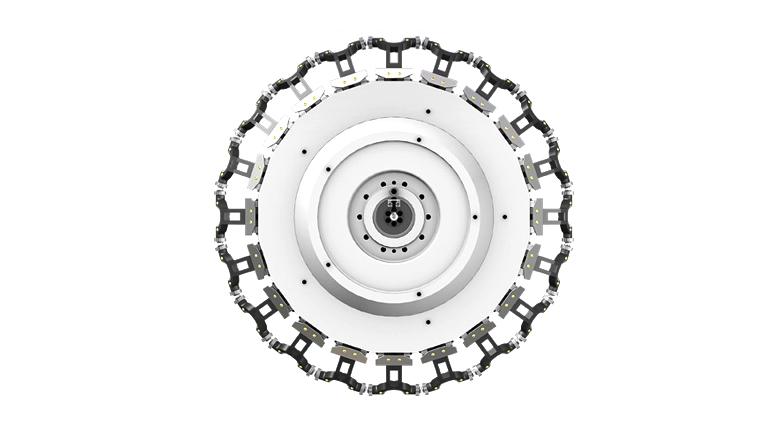

Servo motor-powered armless-type ATC



Specifications

Description Unit i-CUT450T
Table Size mm 850×460
Max. Load Capacity kg 300
Spindle Driving Method - Direct
Spindle Taper - BBT30
Spindle RPM r/min 12,000
Spindle Power kw 14.1/4.1
Spindle Torque N.m 45/21
Travel(X/Y/Z) mm 700/450/330
Rapid Feed Rate(X/Y/Z) m/min 56/56/56

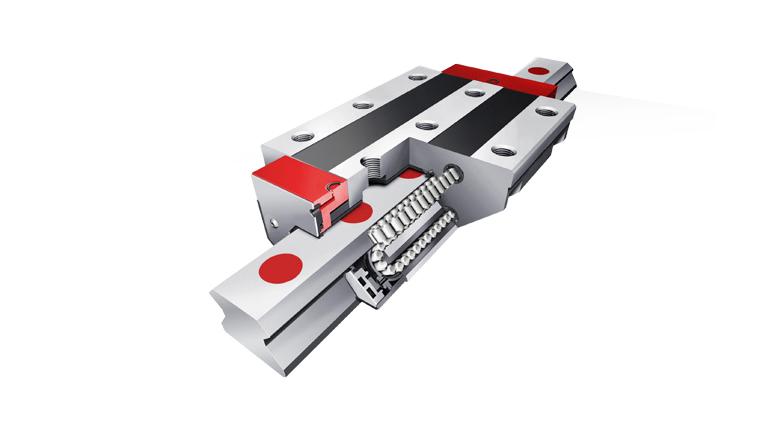

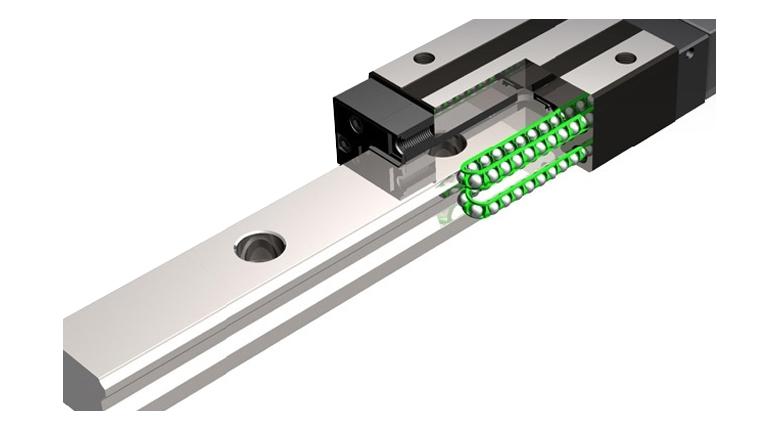

Slide Type - LM
No. of Tools EA 14
Tool Change Time
(Chip To Chip)
sec 1.89
