Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

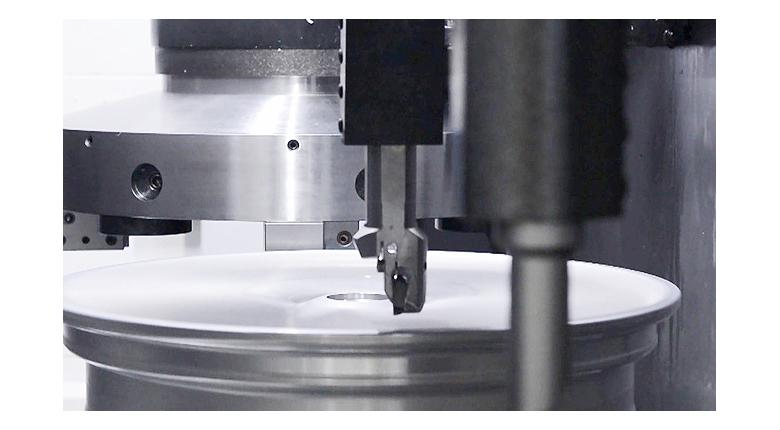

Max. aluminum wheel processing capacity (21.5")

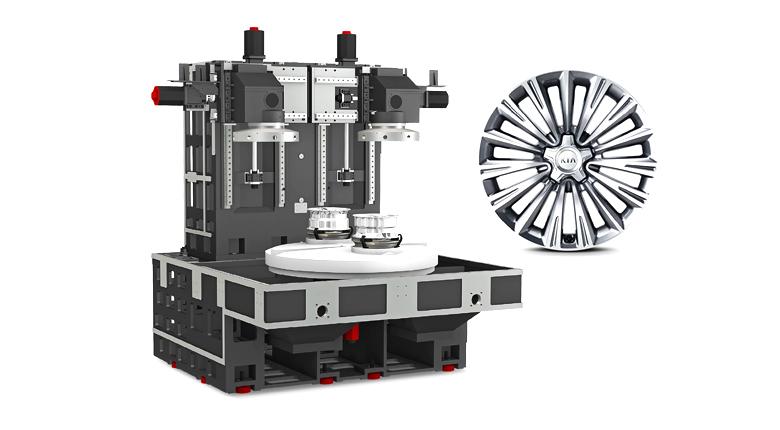

2-turret, high-speed aluminum wheel processing machine

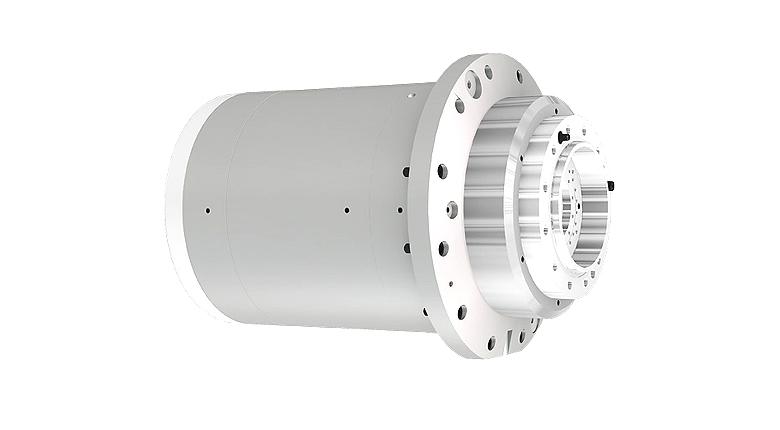

ACC servo motor-based speed control and minimization of shock at shutdown

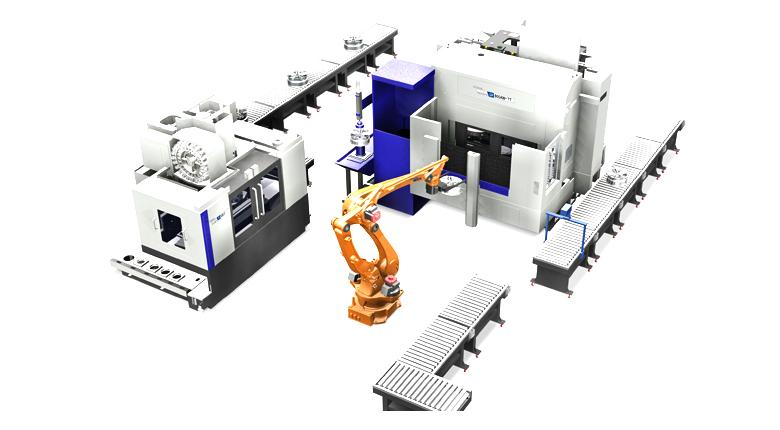

Optimum machine structure for automation

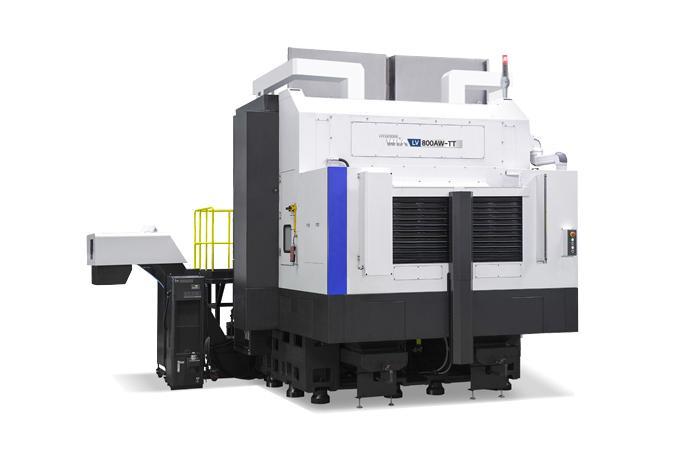

| Description | Unit | LV800AW-TT |
| Max Turning Dia | mm | 650 |
| Max Turning Length | mm | 650 |
| Wheel Size | inch | 22.5″ |
| Driving Method | - | Built in |
| Spindle RPM | r/min | 3,000 |
| Spindle Output | kw | 55 |
| Spindle Torque | N.m | 495 |
| Travel(X/Z) | mm | 420/650 |
| Rapid Travel(X/Z) | m/min | 30/30 |

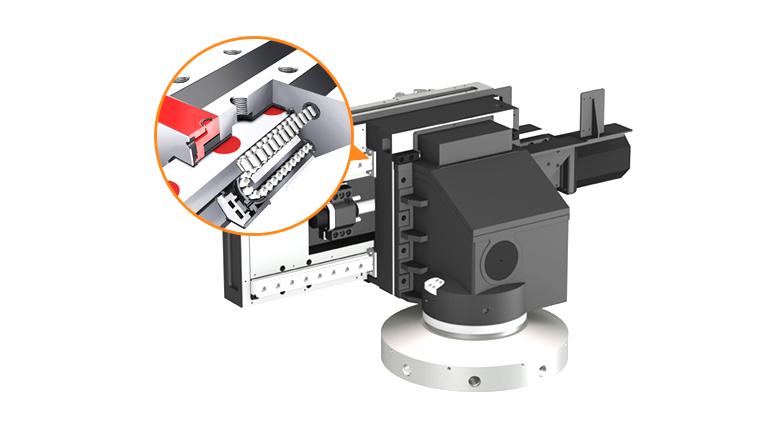

| Slide Type | - | LM |
| No. of Tools | EA | 8 |
| Tool Size | mm | 25/40 |
| CNC | - | H/W FANUC i |
