HYUNDAI WIA

HYUNDAI WIA

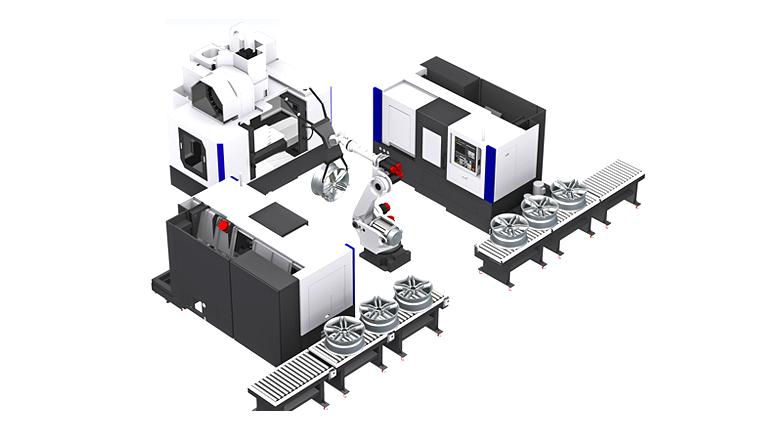

Aluminium Wheel Cutting

Model

Series

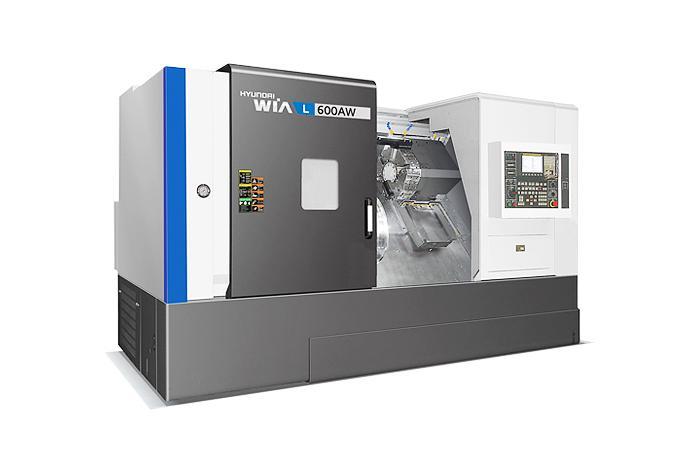

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

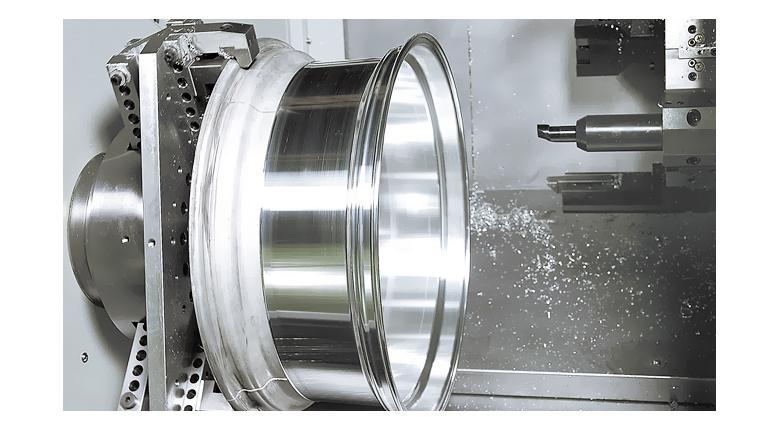

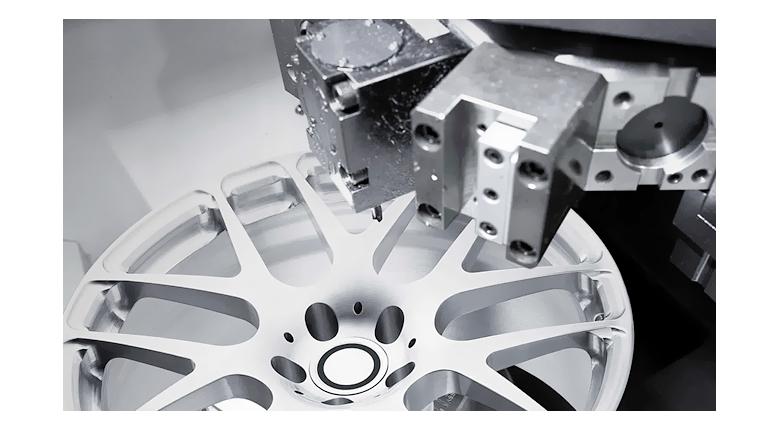

Aluminum Wheel Processing Capability up to 24″ in diameter - L600AW

Best in class work load capacity : Max. swing of 850mm (33.5″) - L600AW

Effective chip flush with standard high volume coolant shower and flush system

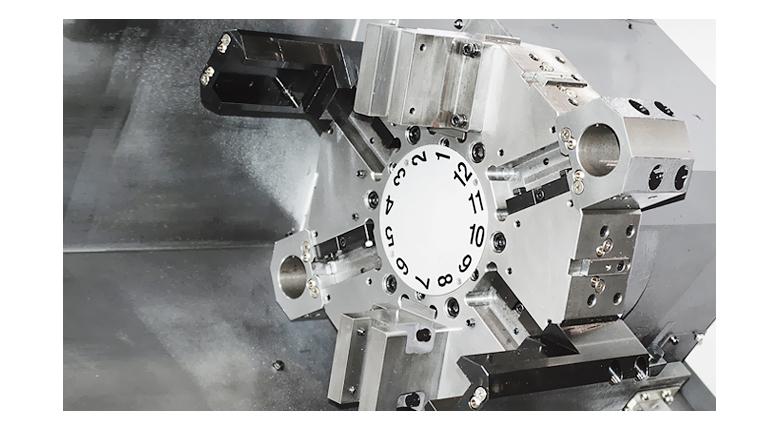

Servo driven high speed turret

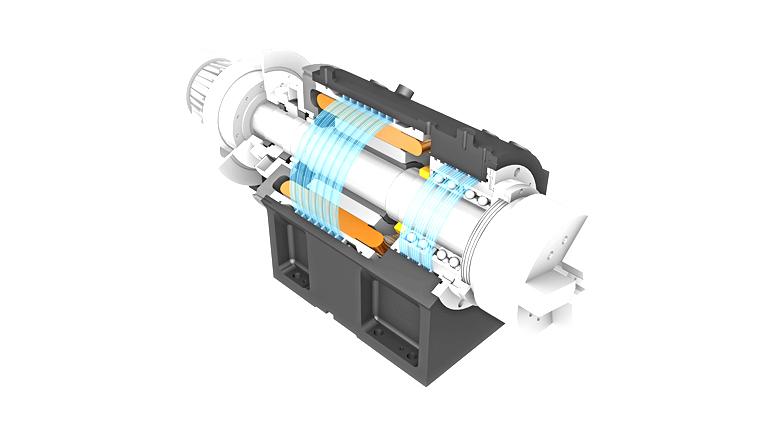

Built-In Motor for use of live tools (L600AW MF- Option)



Specifications

Description Unit L500AW L600AW
Max Turning Dia mm 480 600
Max Turning Length mm 710 710
Wheel Size inch 17″ 17″
Driving Method - Belt Belt
Spindle RPM r/min 3,000 3,000
Spindle Output kw 30/37 30/37
Spindle Torque N.m 373.5/460.7 373.5/460.7
Travel(X/Z) mm 355/720 370/720
Rapid Travel(X/Z) m/min 20/24 20/24
Slide Type - BOX BOX
No. of Tools EA 12 12
Tool Size mm 32/63 32/63
CNC - H/W FANUC i H/W FANUC i
