HYUNDAI WIA

HYUNDAI WIA

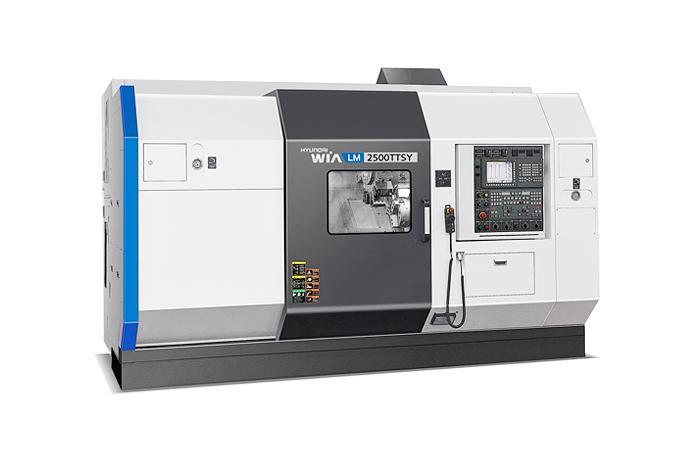

Multi-Axis T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

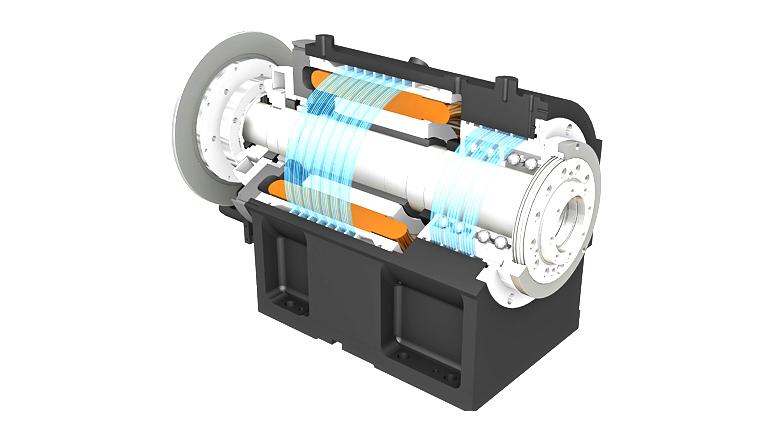

Large output built-In spindle motor

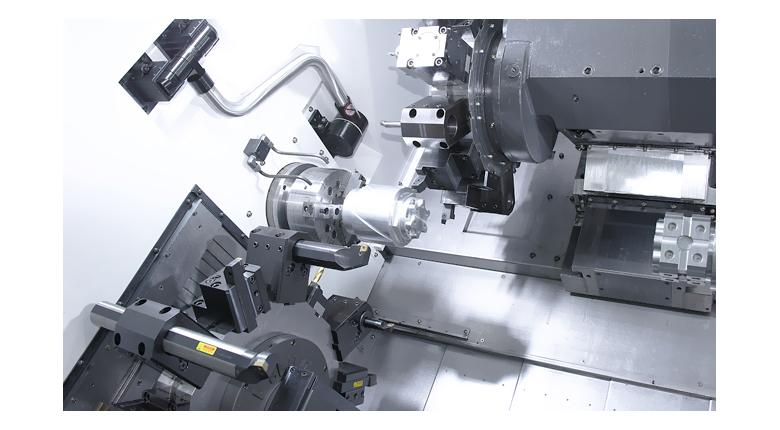

High productivity guaranteed by adoption of upper and lower turrets

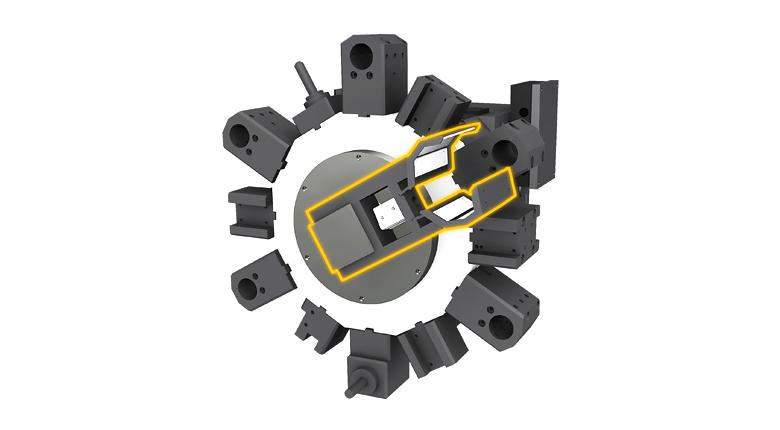

Highly sturdy BMT turret adopted

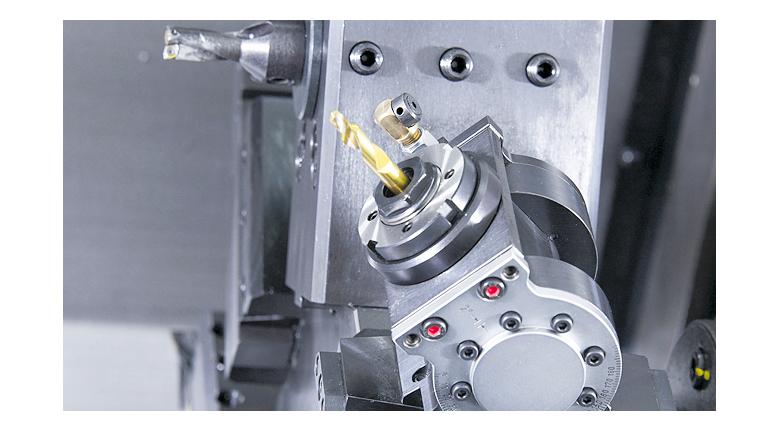

Combined processing possible by the addition of Y axis to the upper turret (TTSY specifications)

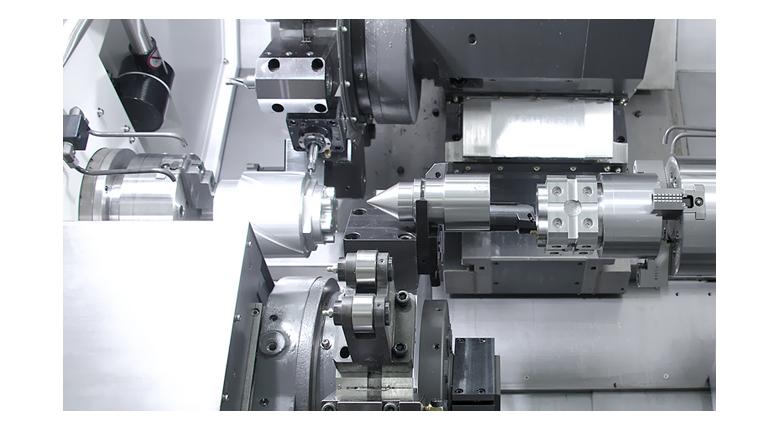

Specific cutting time reduced due to synchronous rotation control of the opposite-type main spindle

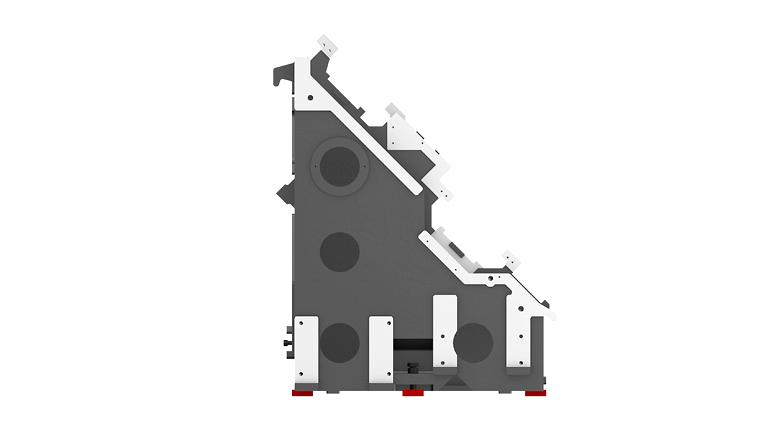

High degree of sturdiness achieved by adopting all axis box guide (LM2500TT Series)

Design of the hybrid-type feed shaft combining box guide and roller guide (LM1600/1800TT Series)



Specifications

Description Unit LM2500TTMS LM2500TTSY
Max Turning Dia mm 390 390
Max Turning Length mm 900 900
Chuck Size inch Main 10″
Sub 10″
Main 10″
Sub 10″
Driving Method - Built in Built in
Spindle RPM r/min 4,000 4,000
Spindle Output kw 15/26 15/26
Spindle Torque N.m 295/433 295/433
Travel(X1/X2/Z1/Z2/ZB) mm 270/190/920/920/920 -
Travel(X1/X2/Z1/Z2/ZB/Y) mm - 270/190/920/920/920/120
Rapid Travel(X1/X2/Z1/Z2/ZB) m/min 24/24/24/24/24 -
Rapid Travel(X1/X2/Z1/Z2/ZB/Y) m/min - 24/24/24/24/24/12
Slide Type - BOX BOX
No. of Tools EA 2 x 12 2 x 12
Tool Size mm 25/50 25/50
Milling Tool Speed r/min 4,000 4,000
CNC - F31i F31i
