HYUNDAI WIA

HYUNDAI WIA

Multi-Axis T/C

Model

Series

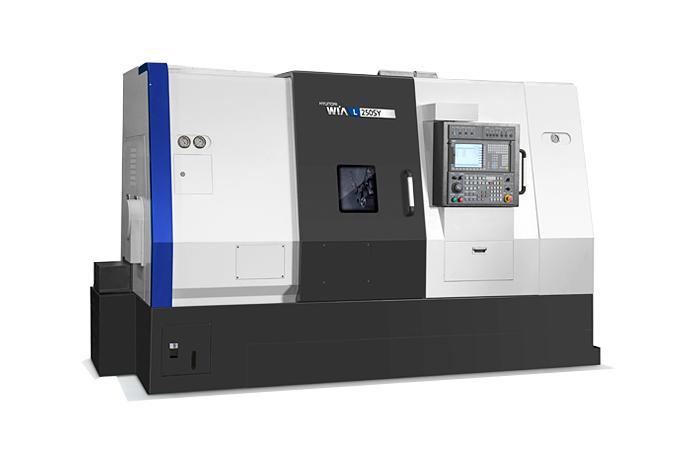

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

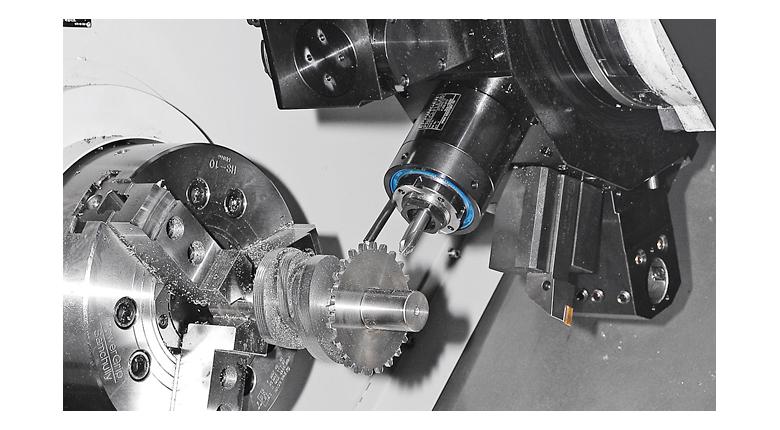

Cross-type Y-axis spindle enables for various high accuracy processing

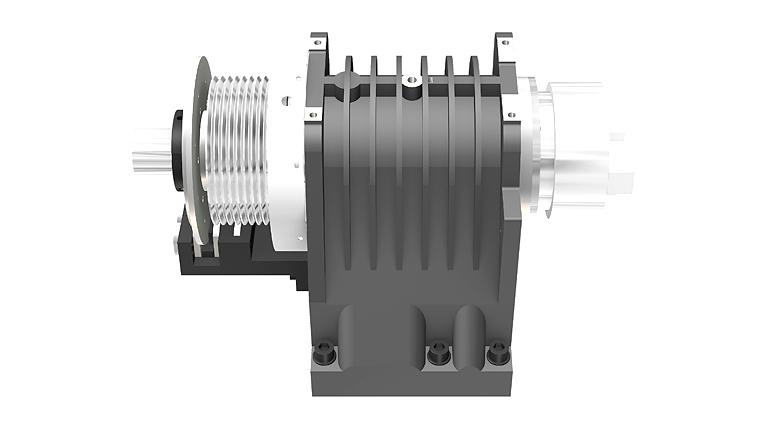

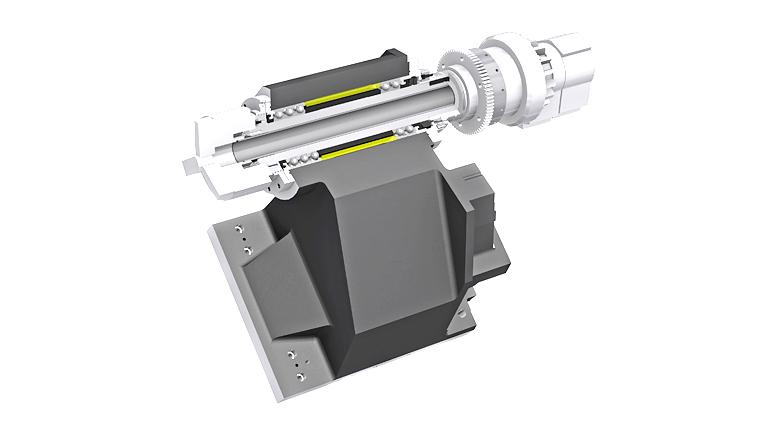

Main spindle with angular ball bearing for high stiffness and low thermal emission

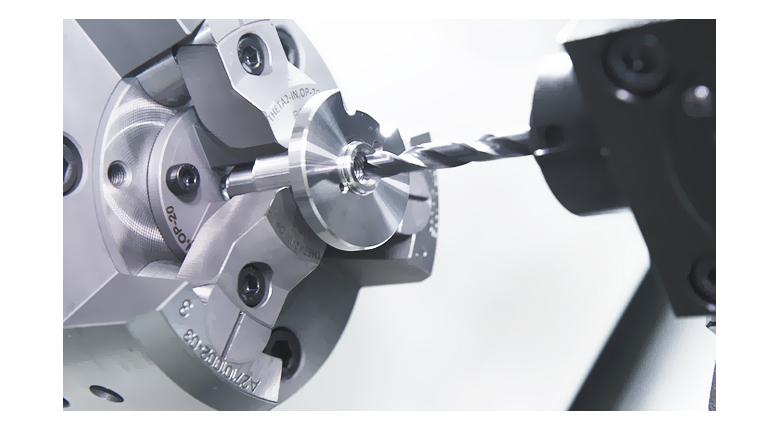

Integrated processing through implementation of sub spindles (L150/200/250SY)

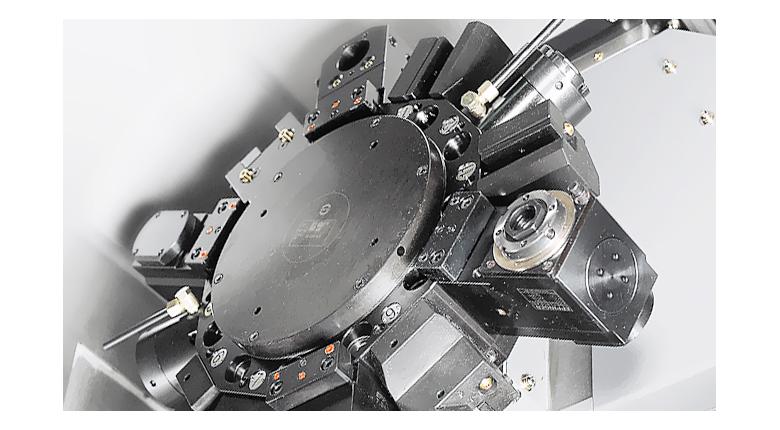

VDI tool shelf for fast and convenient tool exchange.

Front loading box guideway for heavy duty cutting (L250Y/SY)

Improved maintenance through lubrication mechanism in the front



Specifications

Description Unit L250Y L250SY
Max Turning Dia mm 310 310
Max Turning Length mm 620 620
Chuck Size inch 10″ Main 10″
Sub 6″
Driving Method - Belt Belt
Spindle RPM r/min 3,500 3,500
Spindle Output kw 18.5/22 18.5/22
Spindle Torque N.m 200.3/238.2 200.3/238.2
Travel(X/Y/Z) mm 230/110/675 -
Travel(X/Y/Z/ZB) mm - 230/110/675/700
Rapid Travel(X/Y/Z) m/min 20/10/24 -
Rapid Travel(X/Y/Z/ZB) m/min - 20/10/24/20
Slide Type - BOX BOX
No. of Tools EA 12 12
Tool Size mm 25/40 25/40
Milling Tool Speed r/min 4,000 4,000
CNC - F32i F32i
