HYUNDAI WIA

HYUNDAI WIA

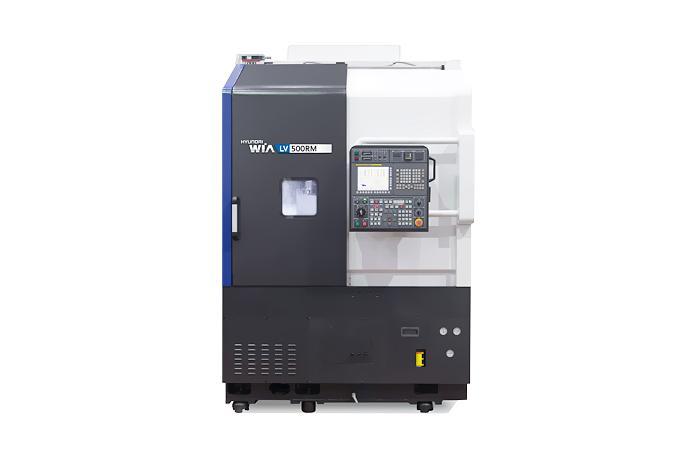

Vertical T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

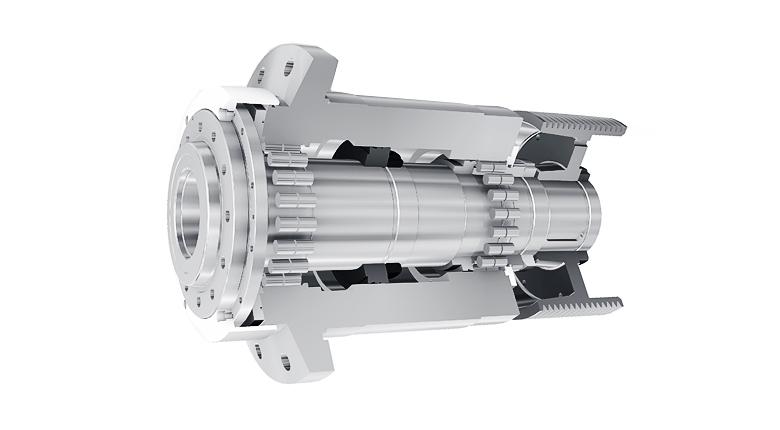

Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)

2-step chuck pressure mechanism adopted to minimize material deformation

Various peripheral equipment can be used for rational machining

All-in-one machine structure incorporating power and oil supply functions in one body

Space design taking into account smooth ship treatment

“Right” and “Left” structure for the formation of rational automation



Specifications

Description Unit LV500R/L LV500RM/LM
Max Turning Dia mm 550 550
Max Turning Length mm 600 600
Chuck Size inch 15″ 15″
Driving Method - Belt Belt
Spindle RPM r/min 2,000 2,000
Spindle Output kw 18.5/22 18.5/22
Spindle Torque N.m 693/824 693/824
Travel(X/Z) mm 325/625 325/625
Rapid Travel(X/Z) m/min 20/18 20/18
Slide Type - LM LM

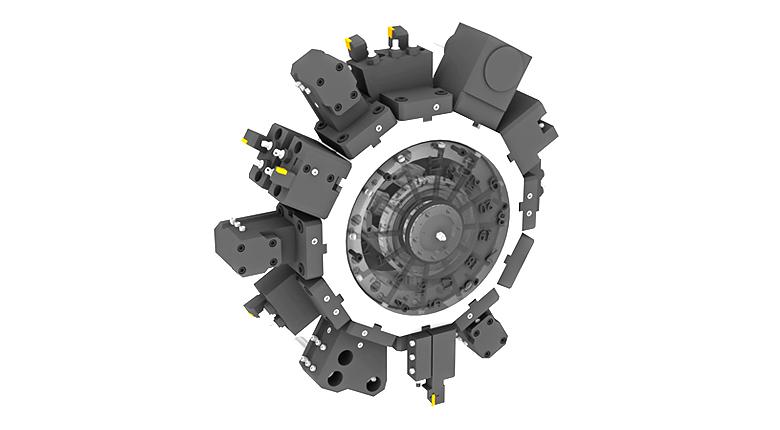

No. of Tools EA 8[12] 8[12]
Tool Size mm 32/50 32/50
Milling Tool Speed r/min - 3,000
CNC - F32i F32i
