HYUNDAI WIA

HYUNDAI WIA

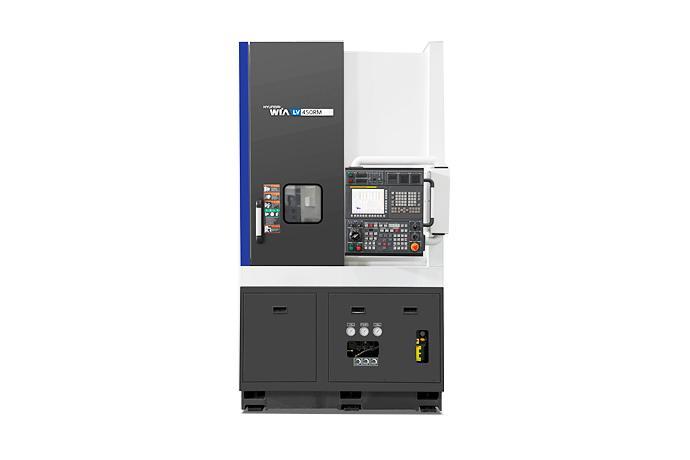

Vertical T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

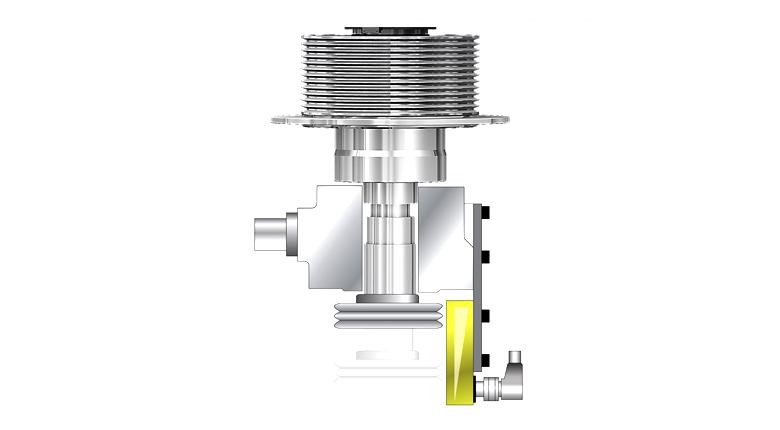

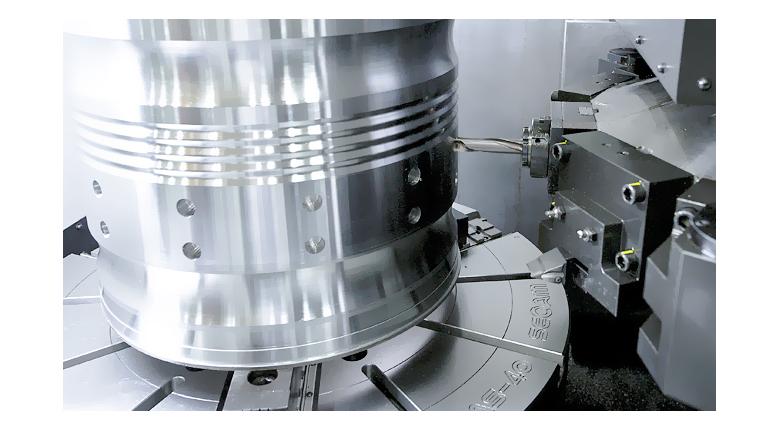

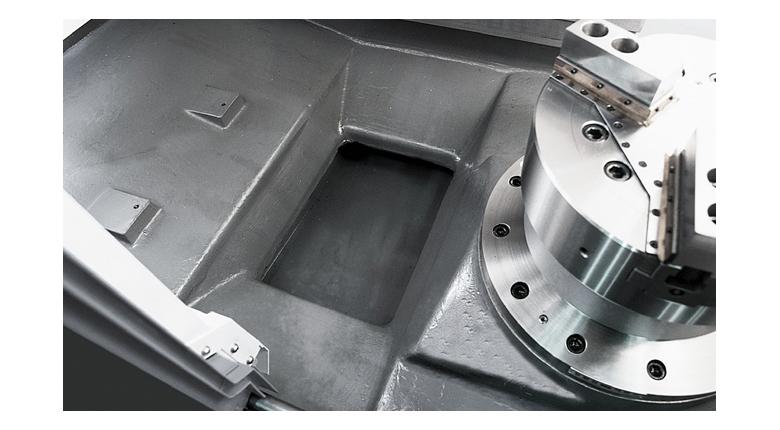

Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)

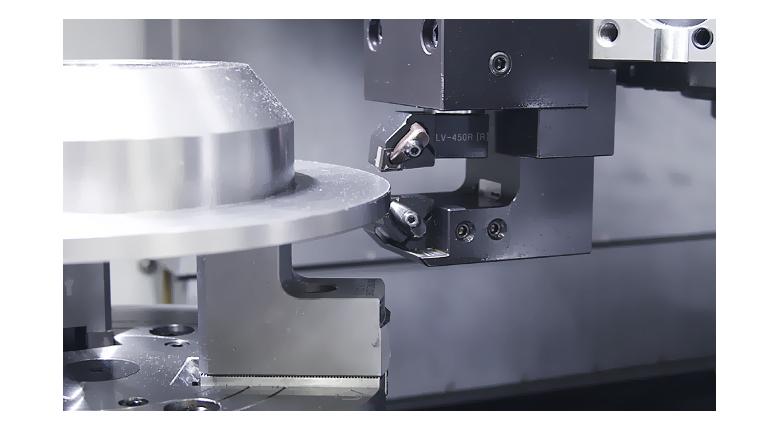

High/Low chucking to minimize material deformation is a standard feature

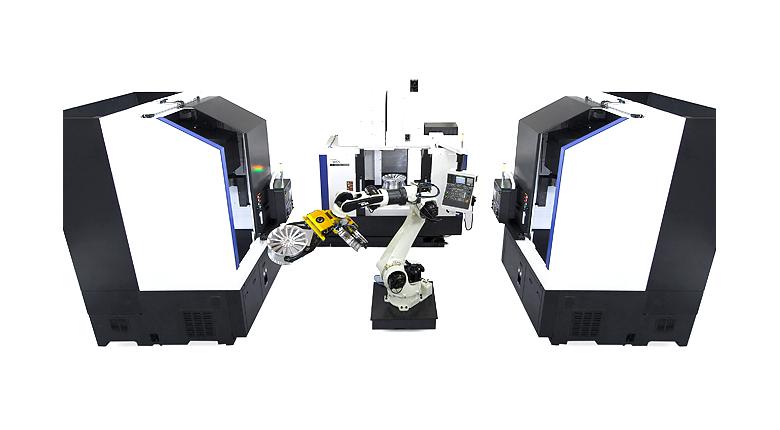

Designed for easy addition of automation and other peripheral accessories

This phrase doesn’t make any sense even in Korean. It needs to be deleted.

Minimal footprint for use of less shop floor space and ease of transportation

Available in “Right” and “Left” hand configurations to minimize pitch between spindle centerlines for ease of operation and the addition of automation



Specifications

Description Unit LV450R/L LV450RM/LM
Max Turning Dia mm 465 465
Max Turning Length mm 465 465
Chuck Size inch 12″ 12″
Driving Method - Belt Belt
Spindle RPM r/min 3,000 3,000
Spindle Output kw 18.5/22 18.5/22
Spindle Torque N.m 614/730 614/730
Travel(X/Z) mm 310/495 310/495
Rapid Travel(X/Z) m/min 20/24 20/24
Slide Type - LM LM

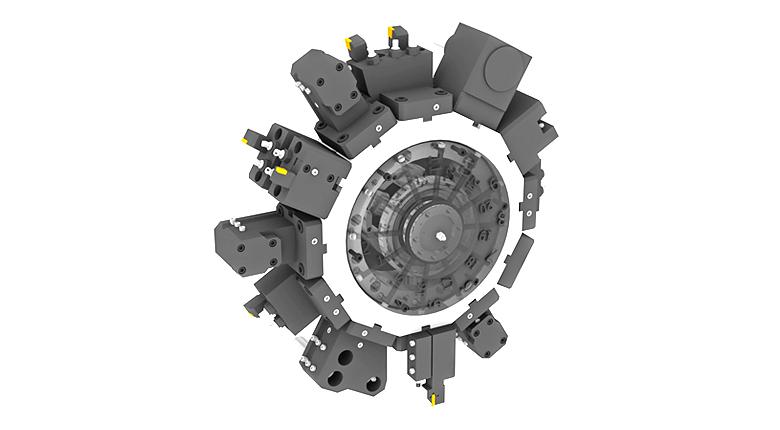

No. of Tools EA 12 12
Tool Size mm 25/50 25/50
Milling Tool Speed r/min - 4,000
CNC - F32i F32i
