HYUNDAI WIA

HYUNDAI WIA

Front Loading T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

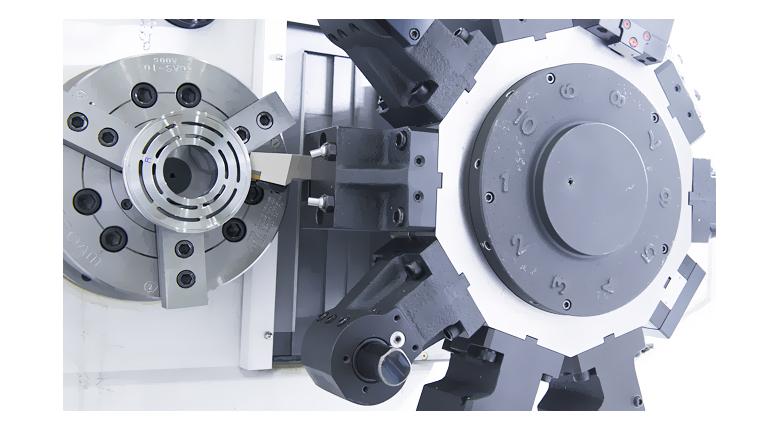

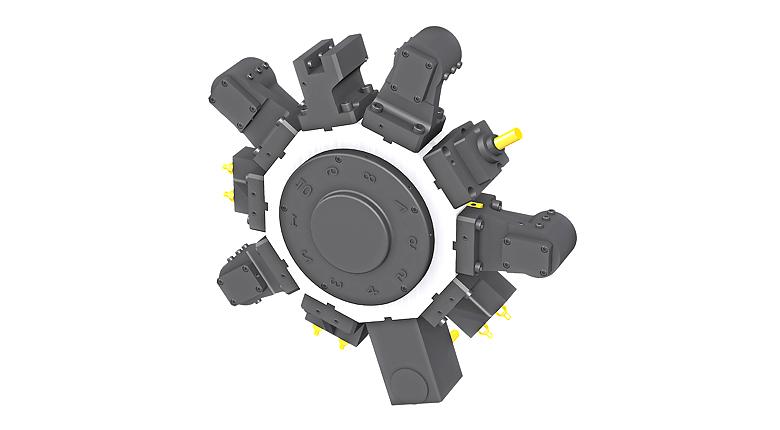

Rigid servo turret

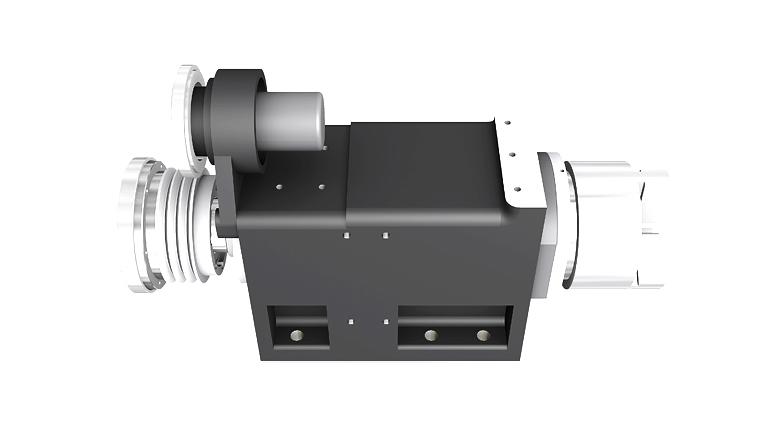

Symmetrical headstock to prevent thermal distortion

Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy

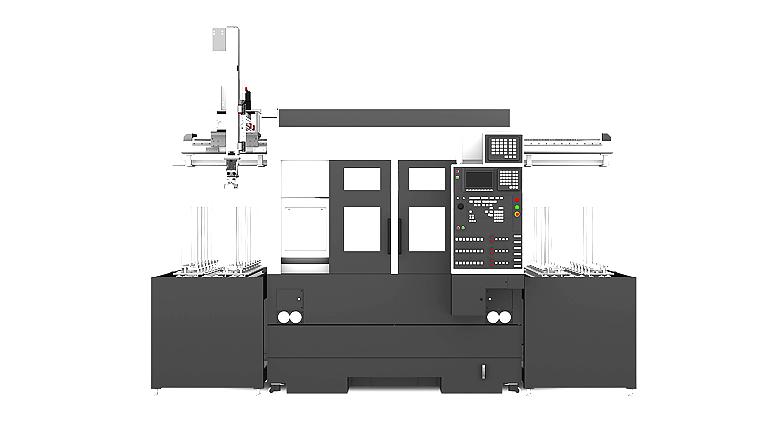

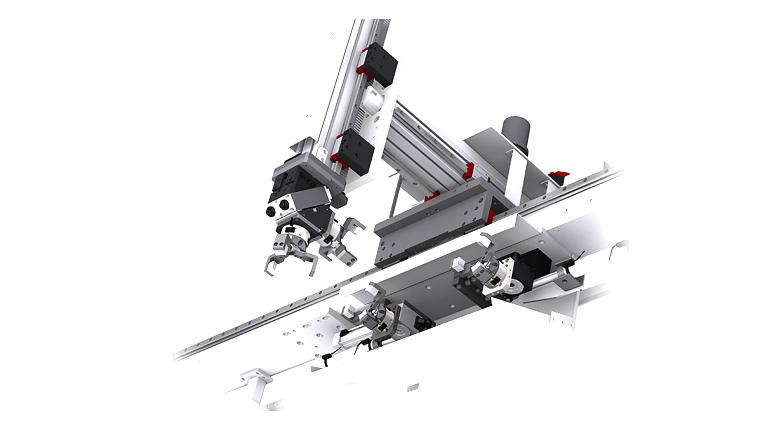

High-speed gantry loader for cycle time reduction

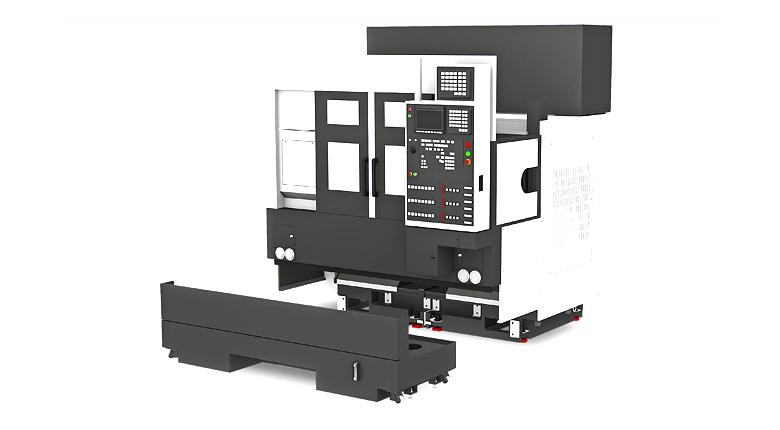

Split bed prevents vibration transfer



Specifications

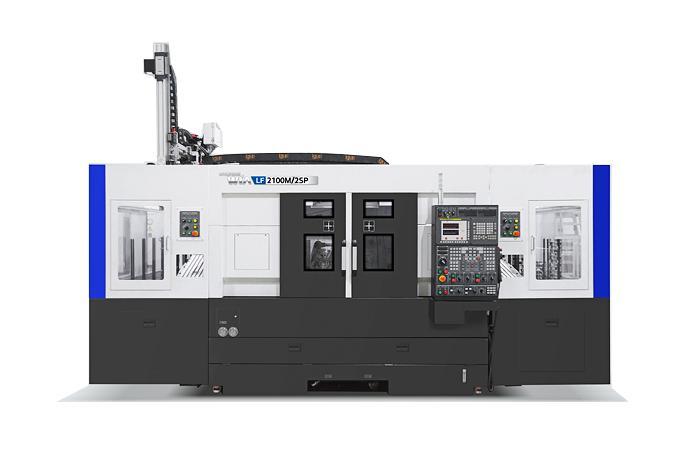

Description Unit LF2100/2SP LF2100M/2SP LF2600/2SP LF2600M/2SP
Max Turning Dia mm 360 360 360 360
Max Turning Length mm 155 155 170 170
Chuck Size inch 8″ 8″ 10″ 10″
Driving Method - Belt Belt Belt Belt
Spindle RPM r/min 4,000 4,000 3,000 3,000
Spindle Output kw 11/15 11/15 18.5/22 18.5/22
Spindle Torque N.m 287 (Max) 287 (Max) 493 (Max) 493 (Max)
Travel(X/Z) mm 190/170 190/170 190/170 190/170
Rapid Travel(X/Z) m/min 24/24 24/24 24/24 24/24
Slide Type - BOX BOX BOX BOX
No. of Tools EA 2 x 10 2 x 10 2 x 10 2 x 10
Tool Size mm 25/40 25/40 25/40 25/40
Milling Tool Speed r/min - 5,000 - 5,000
CNC - F31i F31i F31i F31i
