HYUNDAI WIA

HYUNDAI WIA

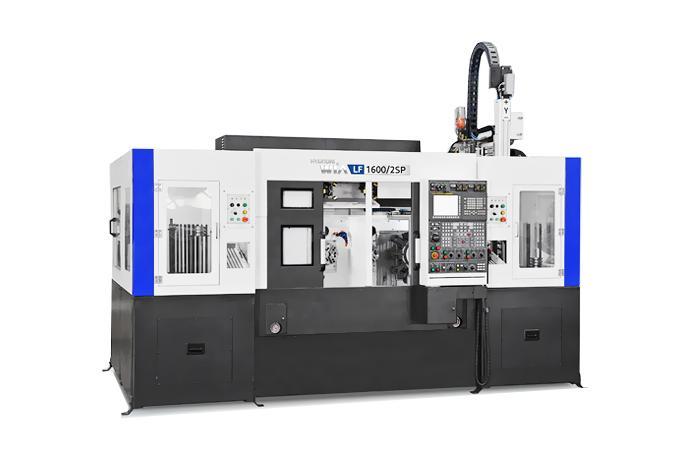

Front Loading T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

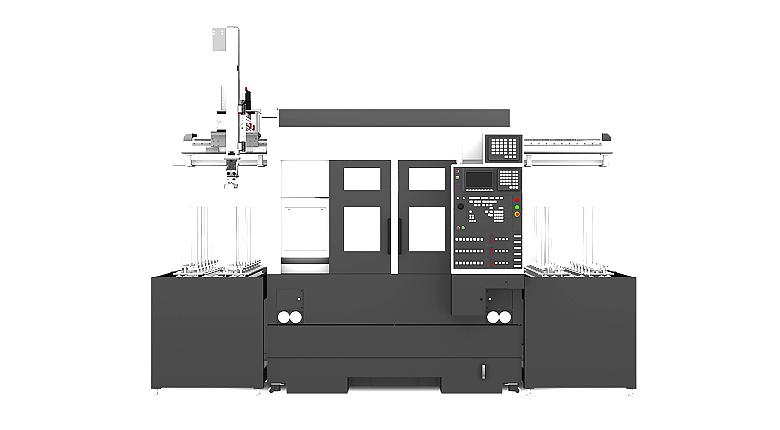

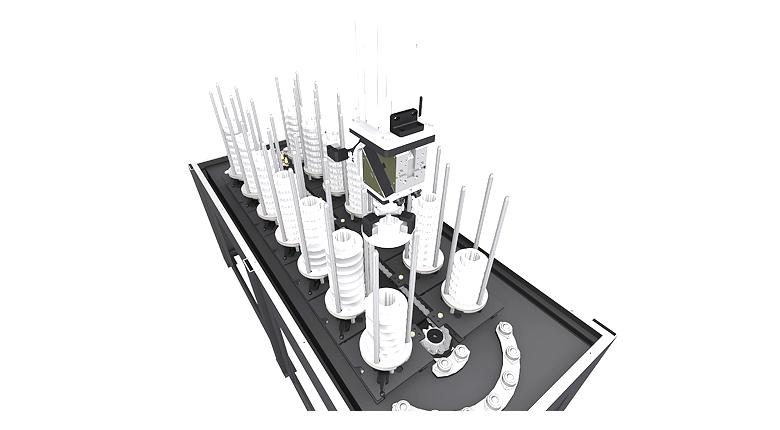

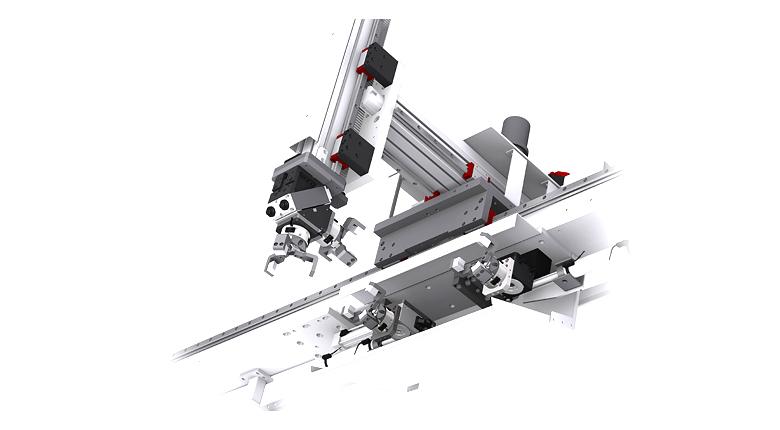

High-speed gantry loader for cycle time reduction

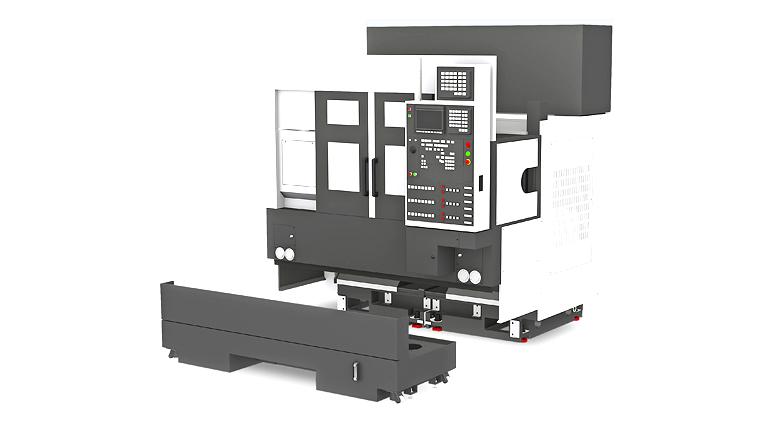

Split bed prevents vibration transfer

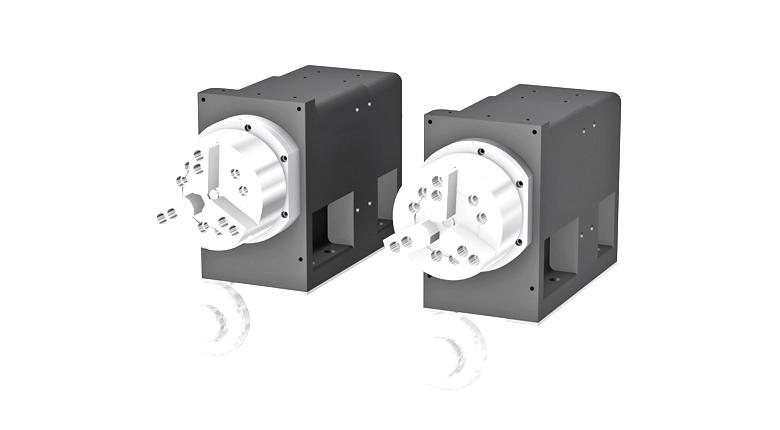

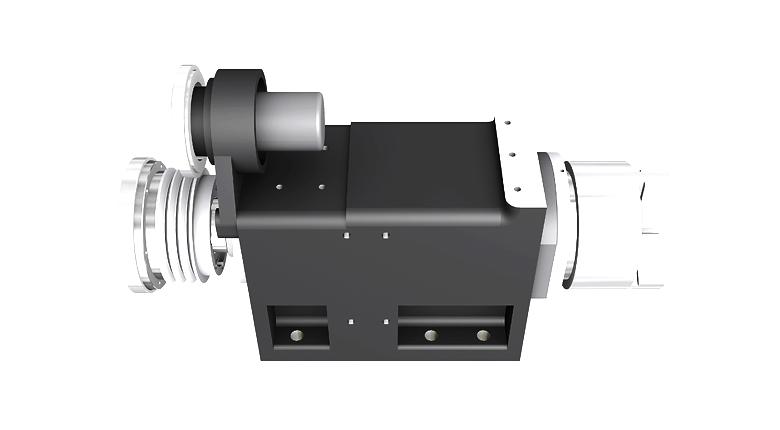

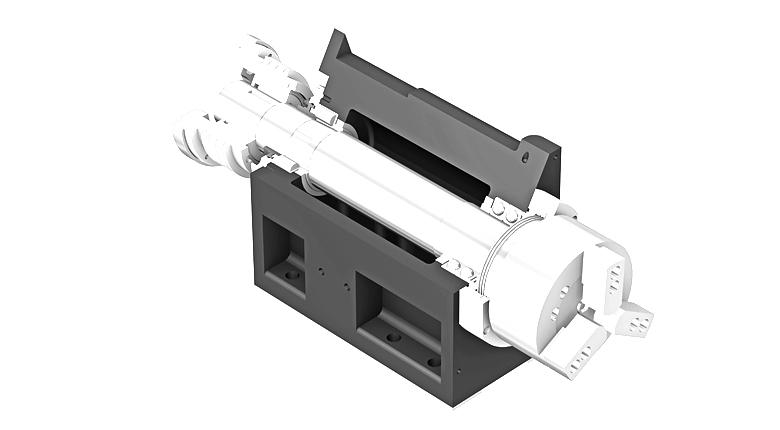

Symmetrical headstock to prevent thermal distortion

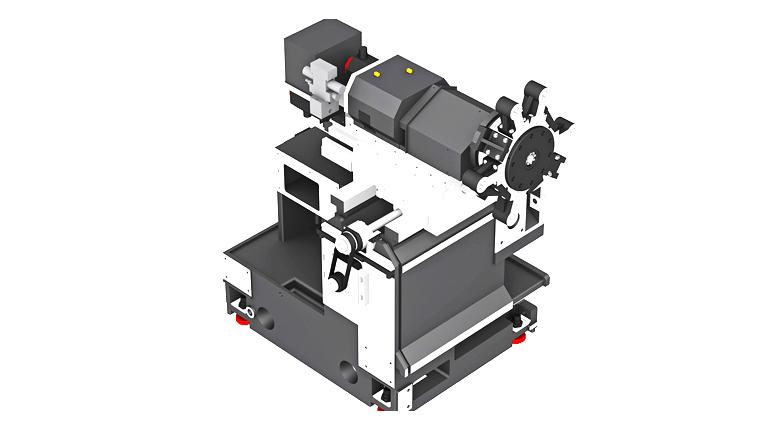

Box Guideways used on all axis

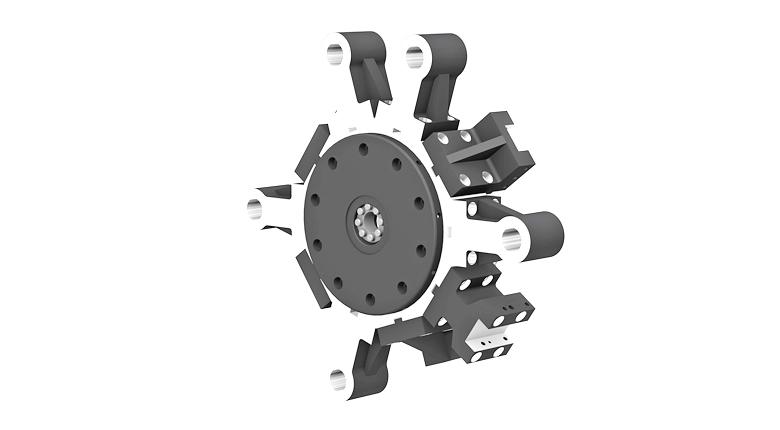

Equipped with rigid and reliable servo turrets



Specifications

Description Unit LF1600/2SP LF1600M/2SP
Max Turning Dia mm 260 260
Max Turning Length mm 165 165
Chuck Size inch 6″ 6″
Driving Method - Belt Belt
Spindle RPM r/min 4,500 4,500
Spindle Output kw 5.5/7.5 5.5/7.5
Spindle Torque N.m 47/64 47/64
Travel(X/Z) mm 140/165 140/165
Rapid Travel(X/Z) m/min 24/24 24/24
Slide Type - BOX BOX
No. of Tools EA 2 x 10 2 x 10
Tool Size mm 20/32 20/32
Milling Tool Speed r/min - 4000
CNC - F31i F31i
