HYUNDAI WIA

HYUNDAI WIA

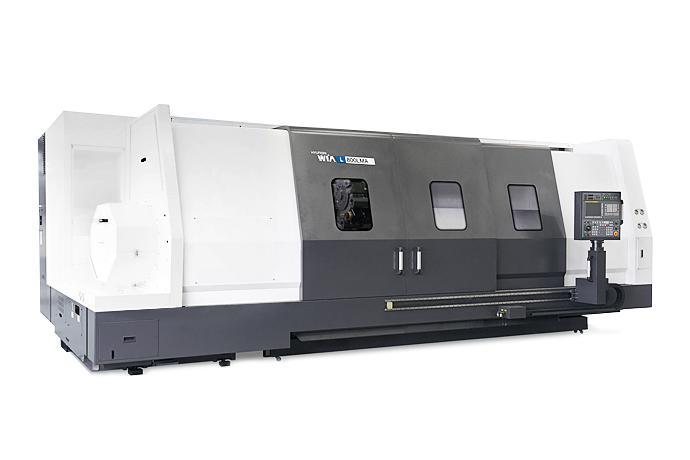

High Performance T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

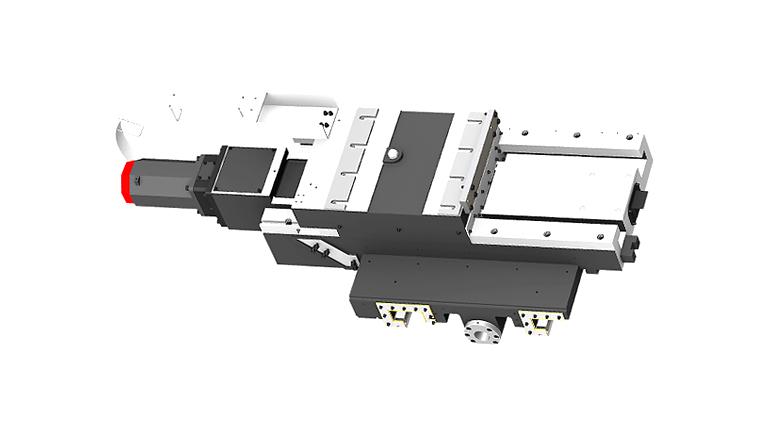

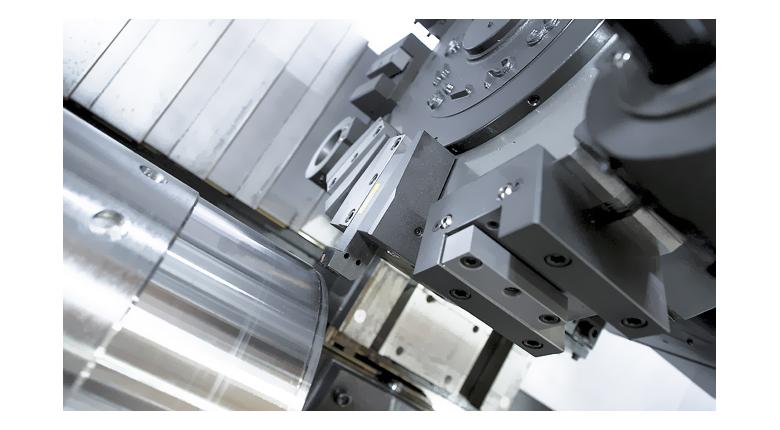

Sturdiness secured through the adoption of an all Axis box guide

All-in-one type structure with direct link for high accuracy and sturdiness

Based on double anchor method for high accuracy pretension

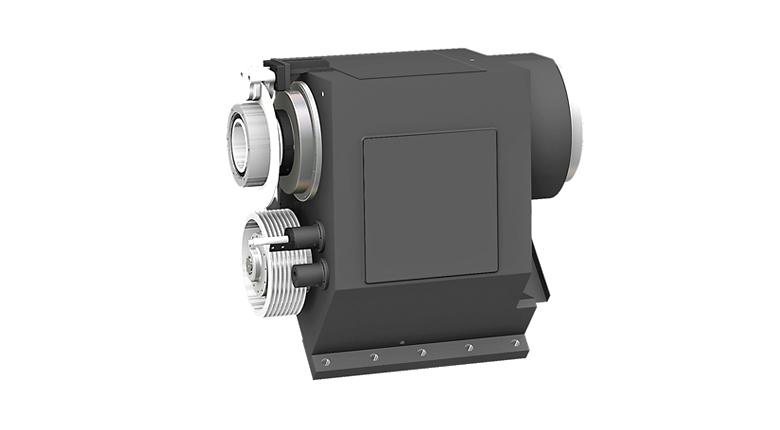

Minimized heat deformation in the main spindle

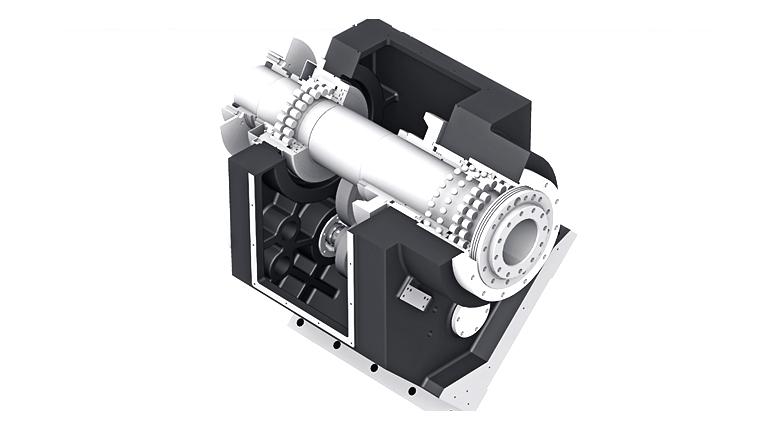

Gear box used for the main spindle (L600/700 Series : 3 step/ L800 Series : 2 step)

Big-bore main spindle with a maximum through diameter of Ø375 (Ø14.7″) (L800D)

Structural design featuring the major axis capable of processing a maximum length of 3,250mm (127.9″) (Long Bed Type)



Specifications

Description Unit L800A L800MA L800LA L800LMA
Max Turning Dia mm 920 920 920 920
Max Turning Length mm 1,650 1,650 3,250 3,250
Chuck Size inch 32″ 32″ 32″ 32″
Driving Method - GEAR GEAR GEAR GEAR
Spindle RPM r/min 700 700 700 700
Spindle Output kw 45/37 45/37 45/37 45/37
Spindle Torque N.m 7,045/5,795 7,045/5,795 7,045/5,795 7,045/5,795
Travel(X/Z) mm 500/1,680 500/1,680 500/3,280 500/3,280
Rapid Travel(X/Z) m/min 12/16 12/16 12/12 12/12
Slide Type - BOX BOX BOX BOX

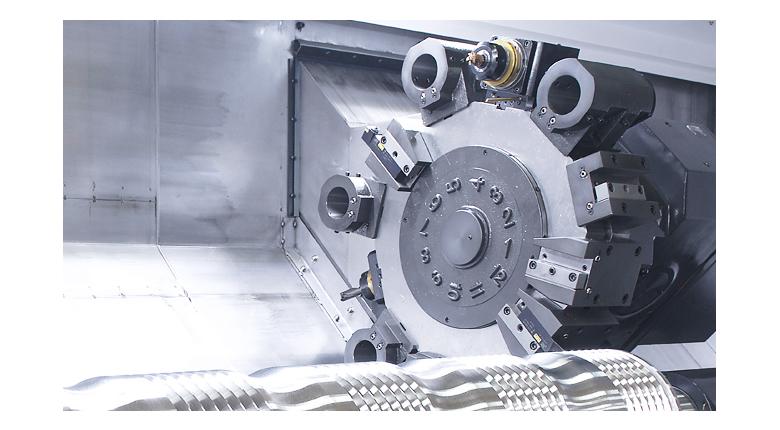

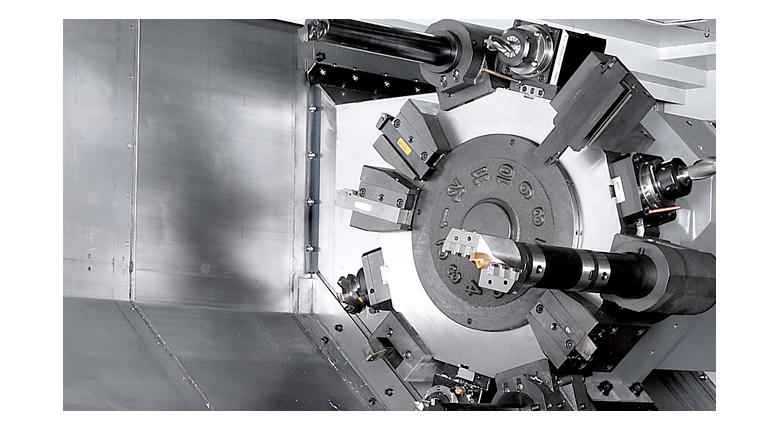

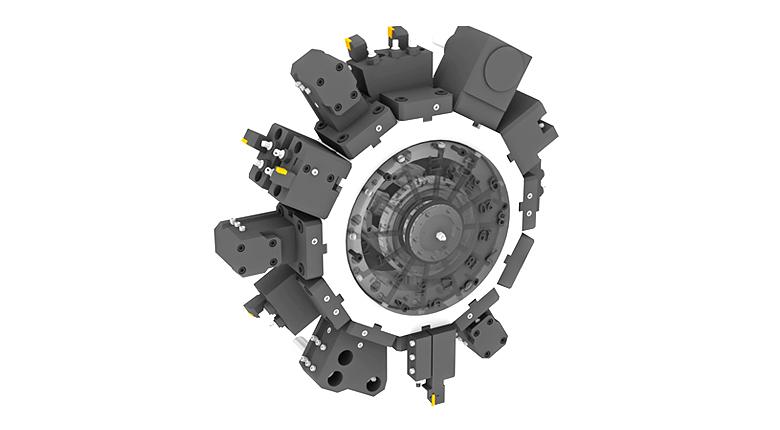

No. of Tools EA 12 12 12 12
Tool Size mm 32/80 32/80 32/80 32/80

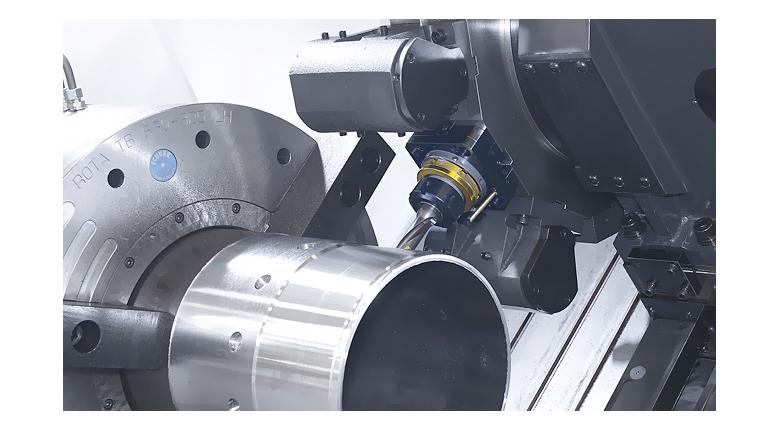

Milling Tool Speed r/min - 3,000 - 3,000
CNC - F32i F32i F32i F32i
