HYUNDAI WIA

HYUNDAI WIA

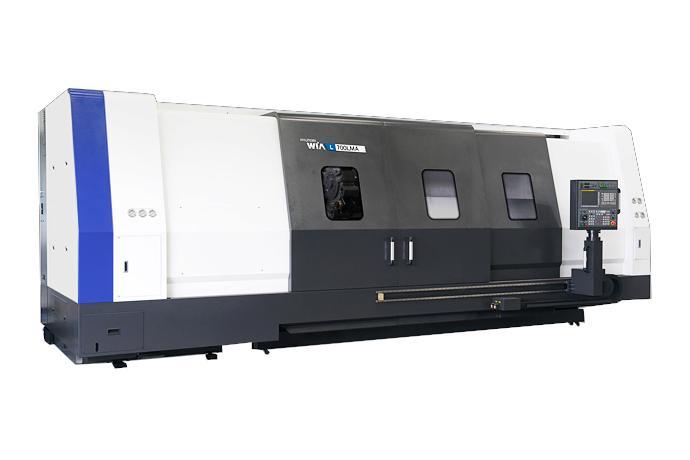

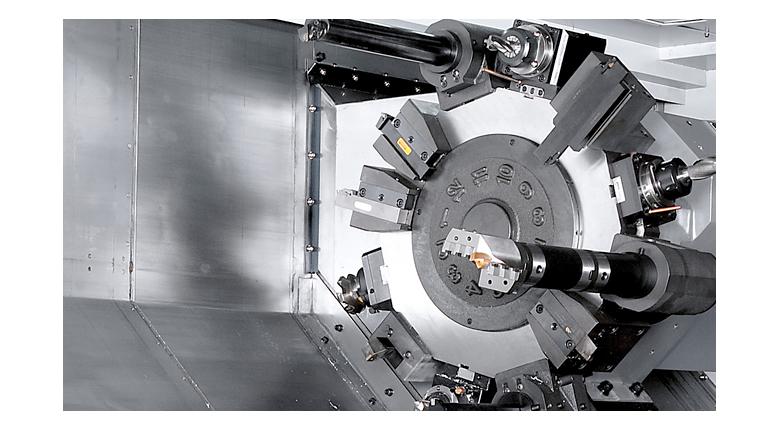

High Performance T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

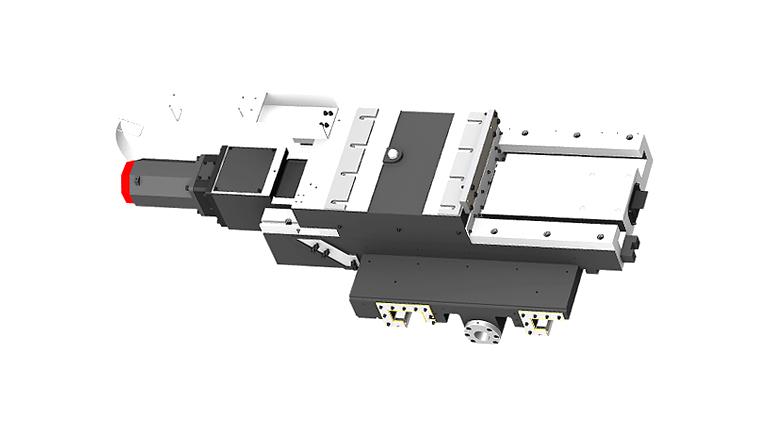

Box guideways on all axis ensuring high rigidity in heavy cutting conditions

One-piece bed structure for high accuracy and sturdiness

Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy

Minimized spindle thermal distortion

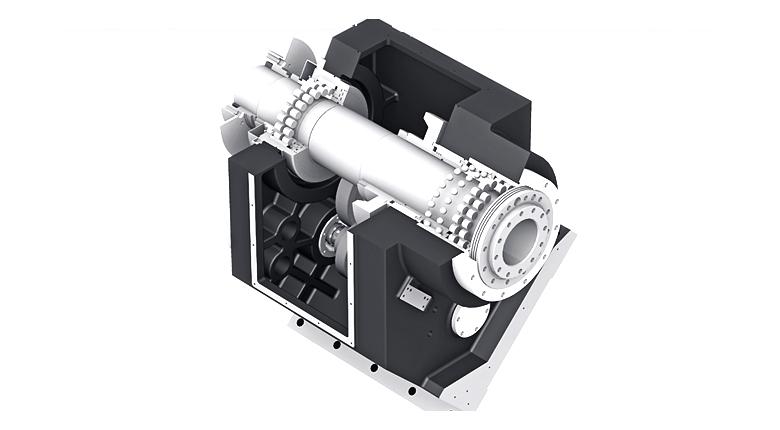

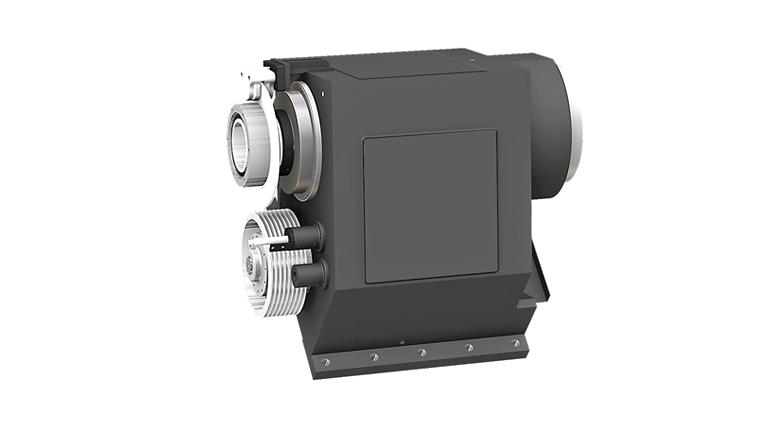

Gear box used for the main spindle (L600/700 Series : 3 step/ L800 Series : 2 step)

Big-bore main spindle with a maximum through diameter of 375 (14.7″) (L800D)

Optional Long Bed design capable of processing a maximum length of 3,250mm (127.9″)



Specifications

Description Unit L700A L700MA L700LA L700LMA
Max Turning Dia mm 920 920 920 920
Max Turning Length mm 1,650 1,650 3,250 3,250
Chuck Size inch 24″ 24″ 24″ 24″
Driving Method - GEAR GEAR GEAR GEAR
Spindle RPM r/min 1,500 1,500 1,500 1,500
Spindle Output kw 45/37 45/37 45/37 45/37
Spindle Torque N.m 6,978/5,700 6,978/5,700 6,978/5,700 6,978/5,700
Travel(X/Z) mm 500/1,680 500/1,680 500/3,280 500/3,280
Rapid Travel(X/Z) m/min 12/16 12/16 12/12 12/12
Slide Type - BOX BOX BOX BOX

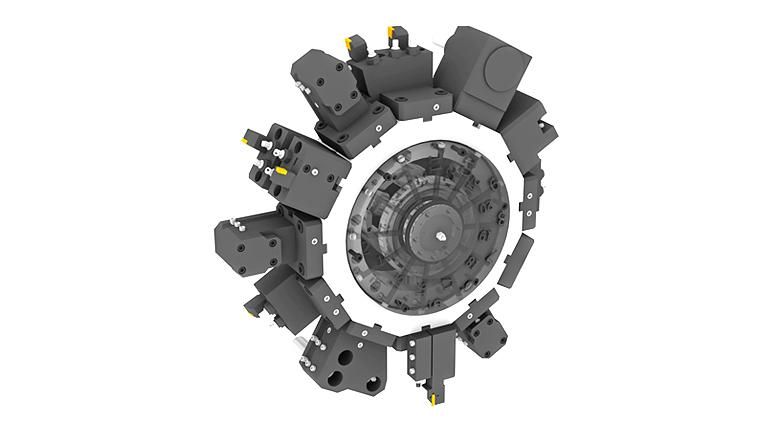

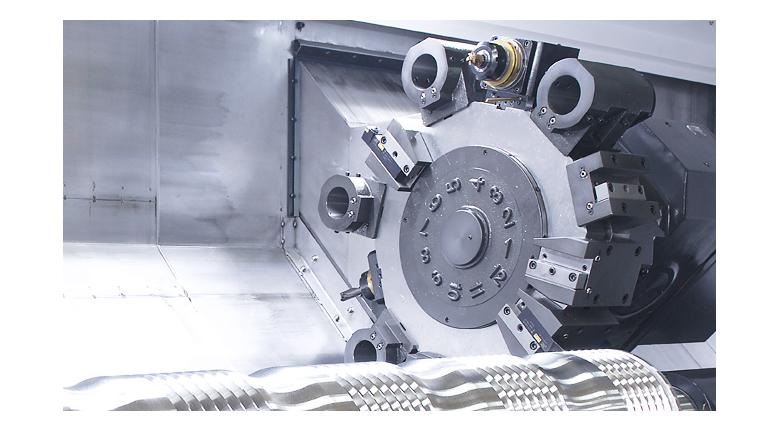

No. of Tools EA 12 12 12 12
Tool Size mm 32/80 32/80 32/80 32/80
Milling Tool Speed r/min - 3,000 - 3,000
CNC - F32i F32i F32i F32i
