Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more
Box guideways on all axis ensuring high rigidity in heavy cutting conditions
Absolute motor encoder in all axes

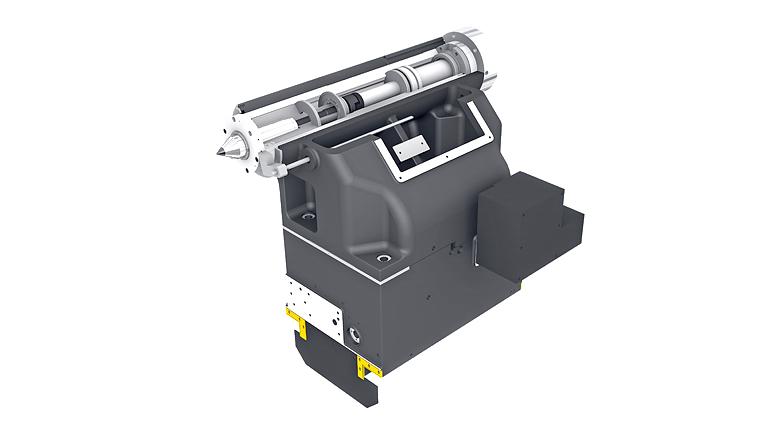

Head stock designed to minimize thermal distortion
30ยฐ Slant Bed Structure
ย

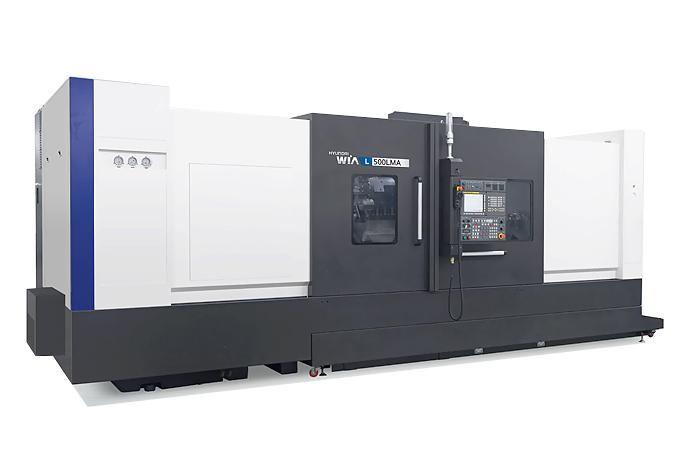

| Description | Unit | L500LA | L500LMA |
| Max Turning Dia | mm | 720 | 690 |
| Max Turning Length | mm | 2,109 | 2,100 |
| Chuck Size | inch | 21โณ | 21โณ |
| Driving Method | - | GEAR | GEAR |
| Spindle RPM | r/min | 1,500 | 1,500 |
| Spindle Output | kw | 45/37 | 45/37 |
| Spindle Torque | N.m | 4,112/3,382 | 2,990/2,459 |
| Travel(X/Z) | mm | 400/2,210 | 400/2,210 |
| Rapid Travel(X/Z) | m/min | 20/18 | 20/18 |
| Slide Type | - | BOX | BOX |

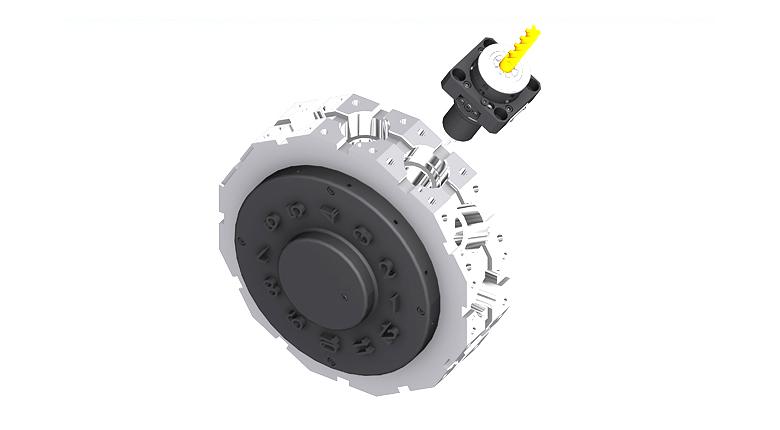

| No. of Tools | EA | 10 | 12 |
| Tool Size | mm | 32/80 | 32/63 |

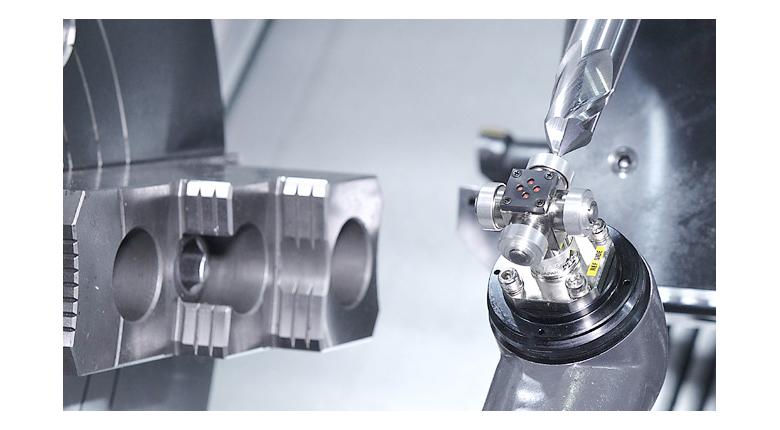

| Milling Tool Speed | r/min | - | 4,000 |
| CNC | - | F32i | F32i |
