HYUNDAI WIA

HYUNDAI WIA

High Performance T/C

Model

Series

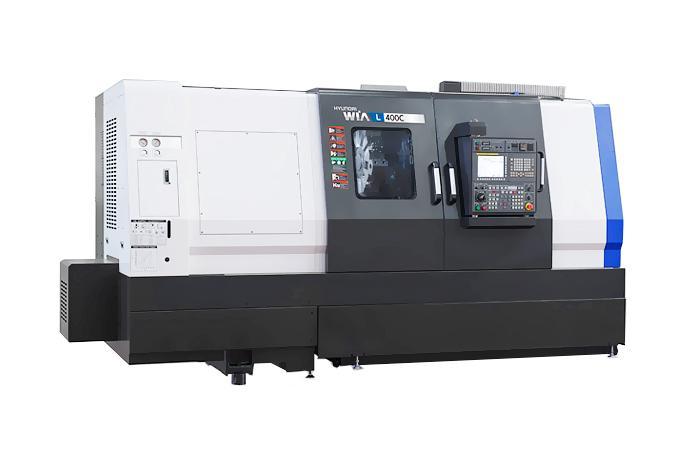

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

Box guideways on all axis ensuring high rigidity in heavy cutting conditions

All-in-one type structure with direct link for high accuracy and sturdiness

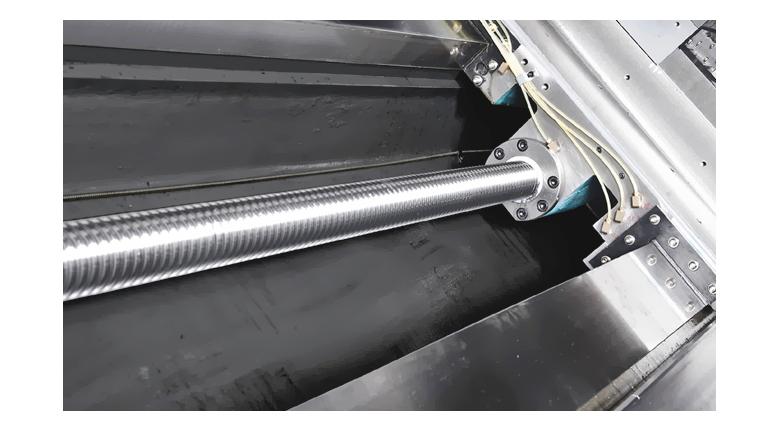

Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy

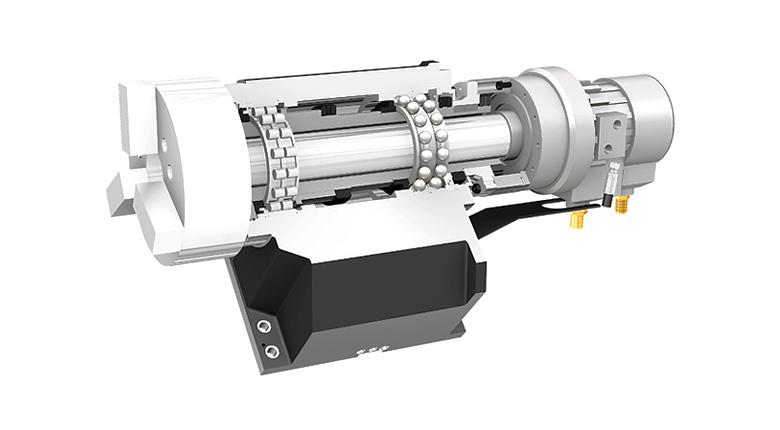

Minimized spindle thermal distortion

Two-Step gear box drives the main spindle across the L400 series. (L400MA : Belt)

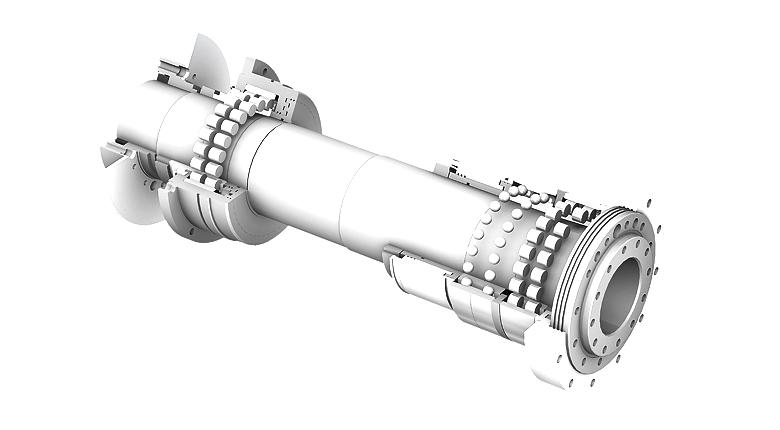

Big Bore Spindle (L400C Series)



Specifications

Description Unit L400C L400LC
Max Turning Dia mm 630 630
Max Turning Length mm 1,170 2,120
Chuck Size inch 15″ 15″
Driving Method - GEAR GEAR
Spindle RPM r/min 2,000 2,000
Spindle Output kw 26/22 37/30
Spindle Torque N.m 1,753/1,483 3,073/2,490
Travel(X/Z) mm 325/1,205 320/2,200
Rapid Travel(X/Z) m/min 20/25 20/20
Slide Type - BOX BOX

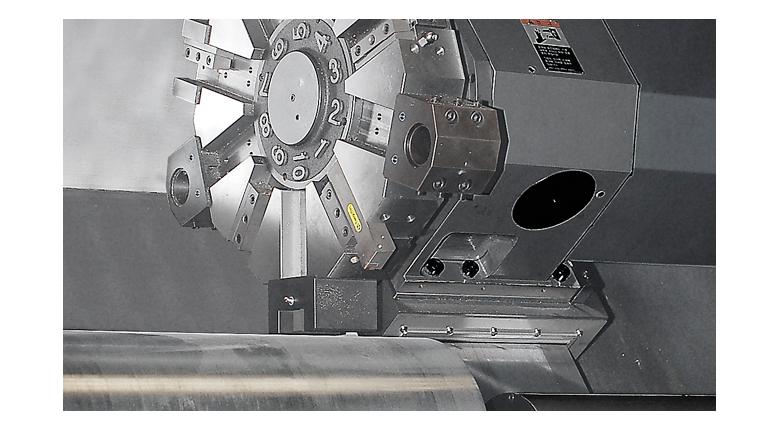

No. of Tools EA 10 10
Tool Size mm 32/50 32/50
CNC - H/W FANUC i H/W FANUC i
