HYUNDAI WIA

HYUNDAI WIA

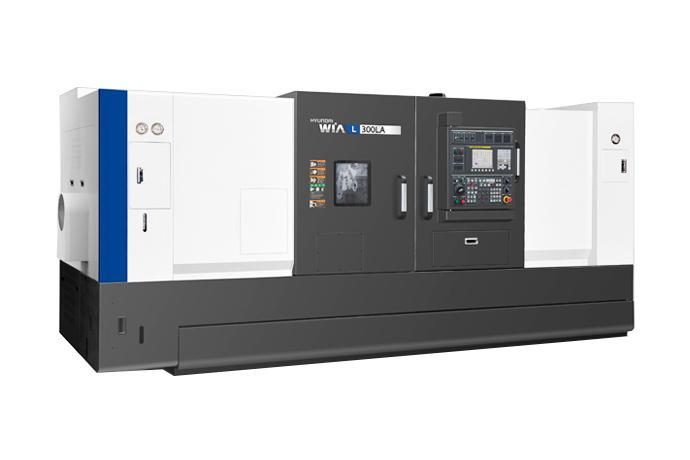

High Performance T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

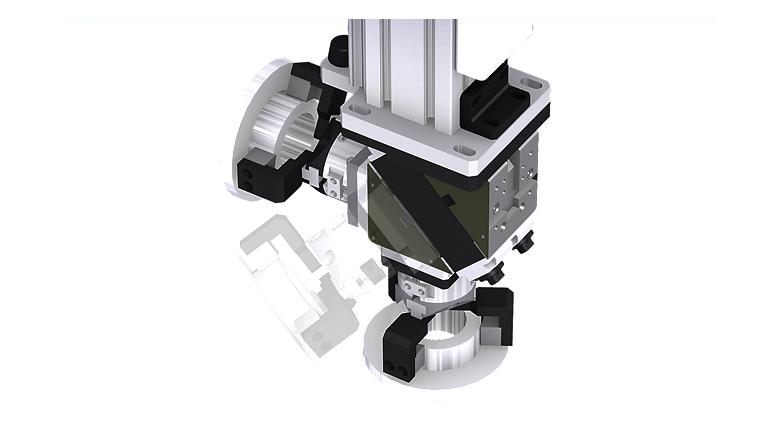

Sturdiness secured through the adoption of an all Axis box guide

Highly accurate direct link and highly sturdy all-in-one structure

Highly accurate pretension double-anchor method

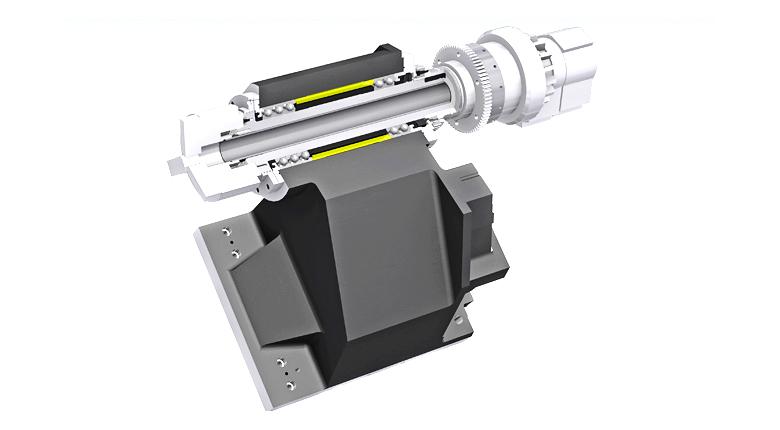

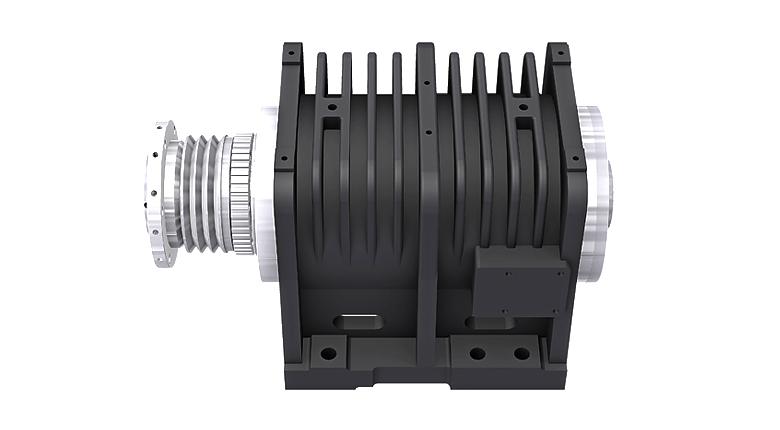

Minimized heat deformation in the main spindle

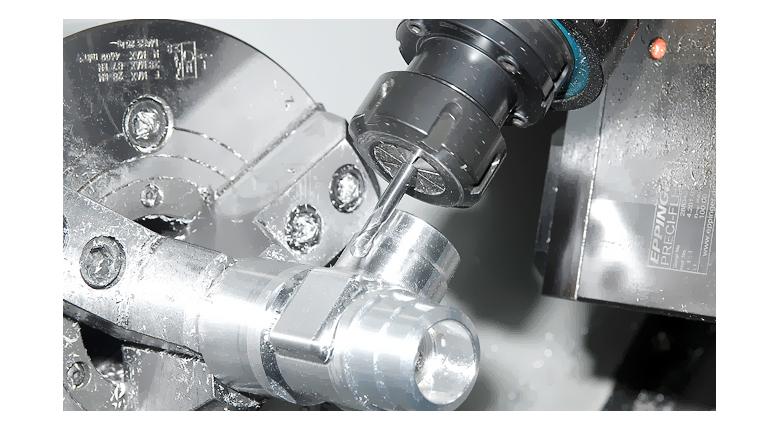

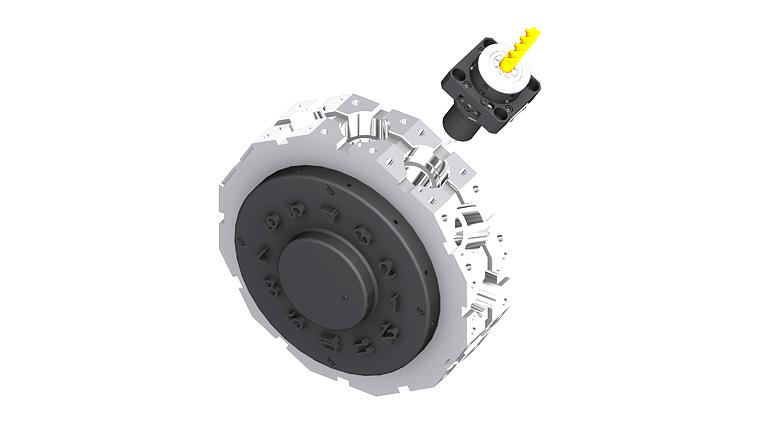

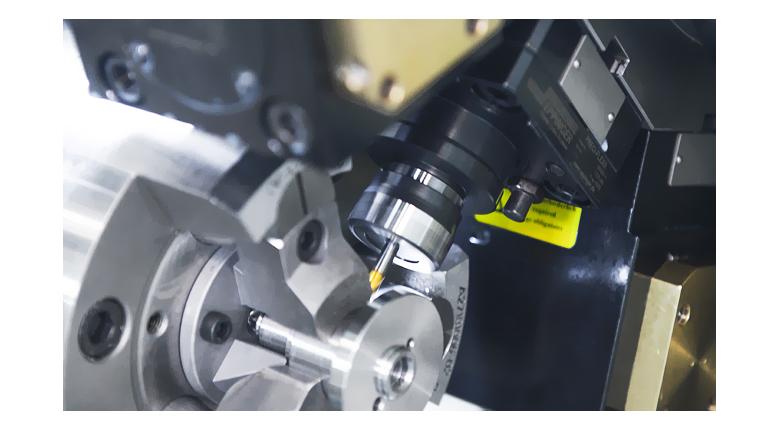

Gearless type main spindle models are all equipped with a mill turret.

Integrated process realized through adoption of 8″ sub spindle : models equipped with sub spindle



Specifications

Description Unit L300LA L300LMA L300LMSA
Max Turning Dia mm 500 410 410
Max Turning Length mm 1,320 1,280 1,250
Chuck Size inch 10″ 10″ Main 10″
Sub 8″

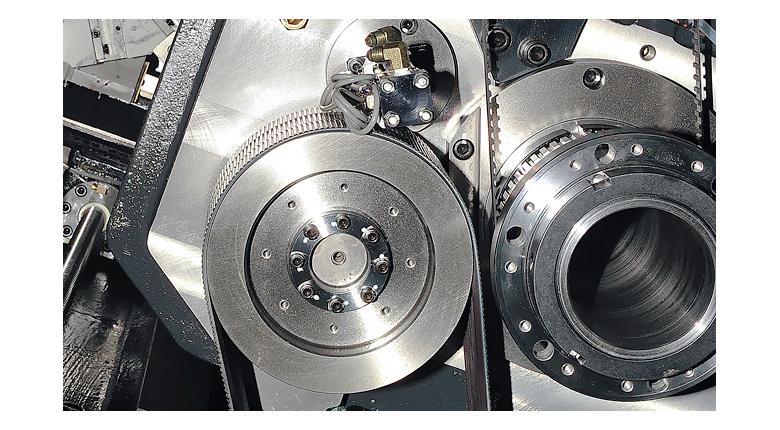

Driving Method - GEAR Belt Belt
Spindle RPM r/min 3,600 3,500 3,500
Spindle Output kw 22/18.5 22/18.5 22/18.5
Spindle Torque N.m 755.8/635.5 493.2/414.7 493.2/414.7
Travel(X/Z) mm 290/1,350 290/1,350 290/1,350/1,200
Rapid Travel(X/Z) m/min 20/24 20/24 20/24/20
Slide Type - BOX BOX BOX
No. of Tools EA 12 12 12
Tool Size mm 25/50 25/50 25/50
Milling Tool Speed r/min - 4,000 4,000
CNC - H/W FANUC i H/W FANUC i F32i
