HYUNDAI WIA

HYUNDAI WIA

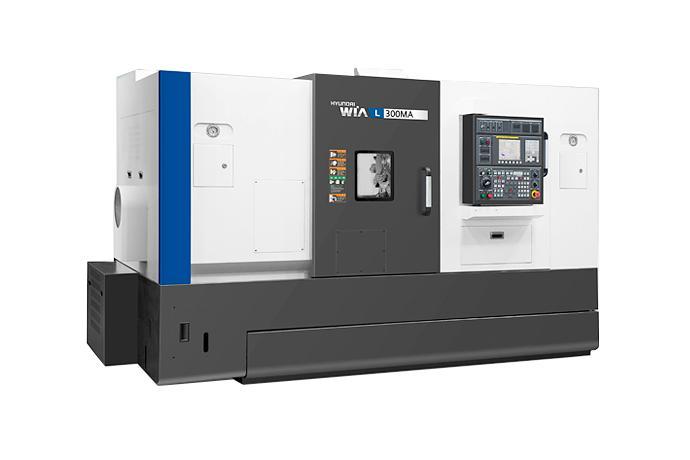

High Performance T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

Box guideways on all axis ensuring high rigidity in heavy cutting conditions

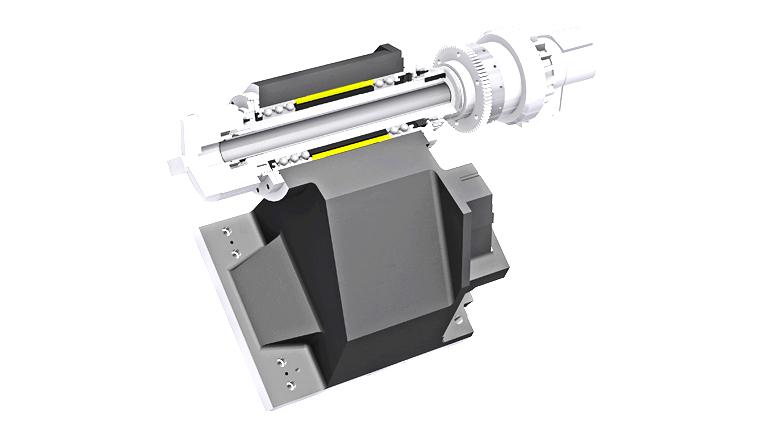

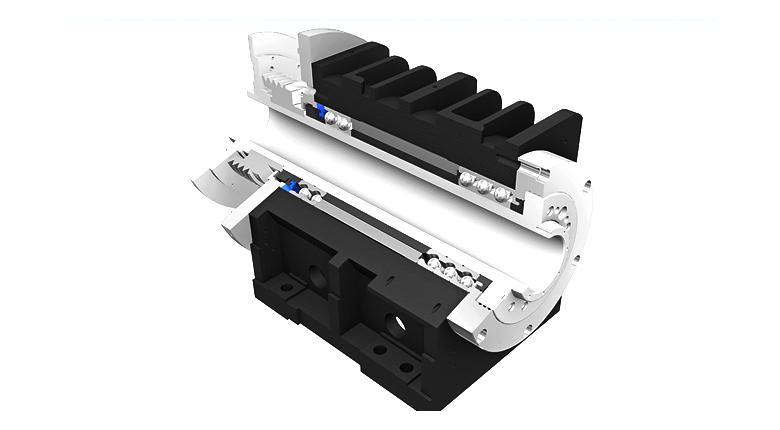

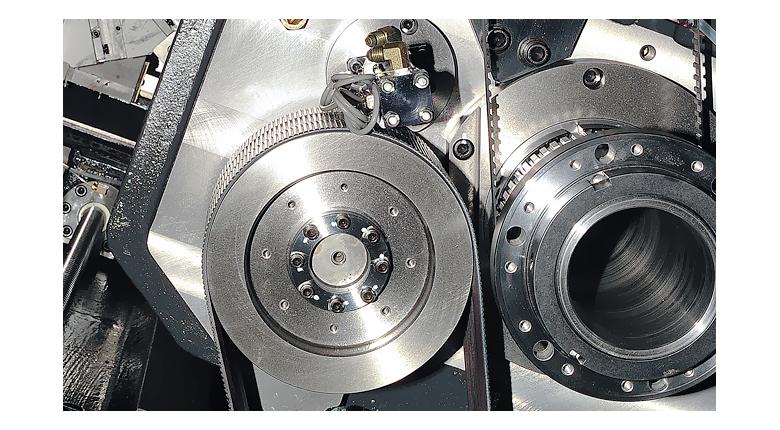

Highly Accurate direct drive spindle design and highly sturdy all-in-one structure

Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy

Minimized spindle thermal distortion

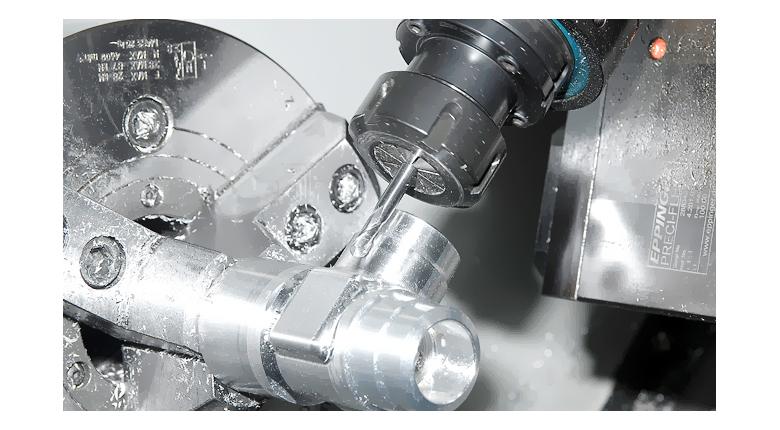

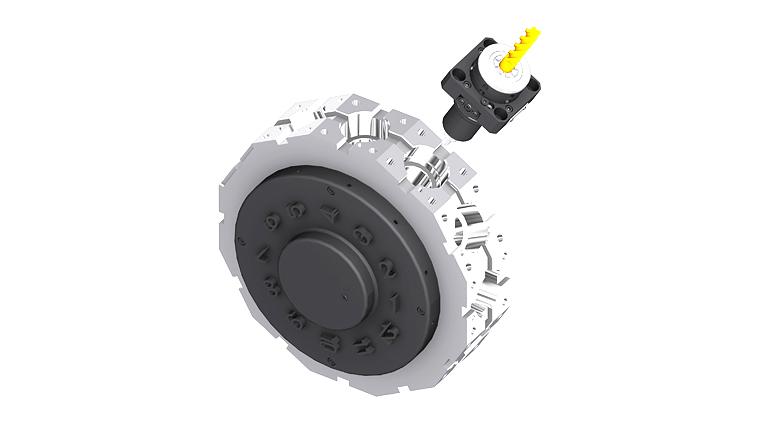

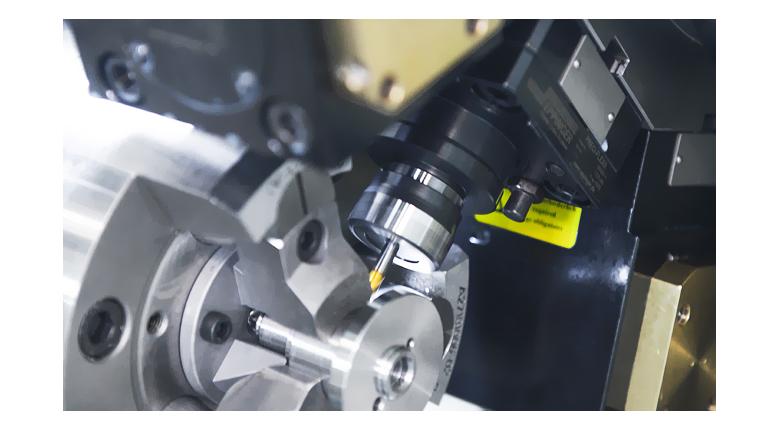

Gearless type main spindle models are all equipped with a mill turret.

Integrated process realized through use of optional 8″ sub spindle

Big Bore Spindle (L300C Series)



Specifications

Description Unit L300A L300MA L300MSA
Max Turning Dia mm 500 410 410
Max Turning Length mm 720 680 680
Chuck Size inch 10″ 10″ Main 10″
Sub 8″
Driving Method - GEAR Belt Belt
Spindle RPM r/min 3,600 3,500 3,500
Spindle Output kw 22/18.5 22/18.5 22/18.5
Spindle Torque N.m 755.8/635.5 493.2/414.7 493.2/414.7
Travel(X/Z) mm 290/750 290/750 290/750/700
Rapid Travel(X/Z) m/min 20/24 20/24 20/24/20
Slide Type - BOX BOX BOX
No. of Tools EA 12 12 12
Tool Size mm 25/50 25/50 25/50
Milling Tool Speed r/min - 4,000 4,000
CNC - H/W FANUC i H/W FANUC i F32i
