HYUNDAI WIA

HYUNDAI WIA

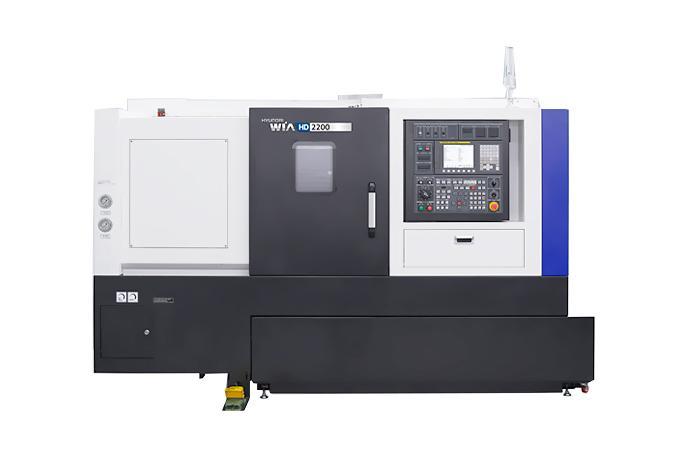

High Performance T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

45° slanted one-piece rigid bed structure

Minimal thermal distortion

User-friendly structure for high productivity

Best in class rapid traverse rate : 30m/min (Z-axis)

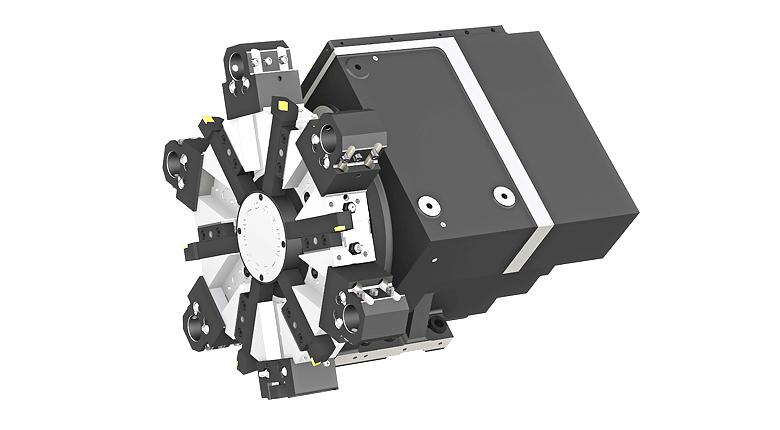

Reliable, high speed servo turret: 0.12sec/step

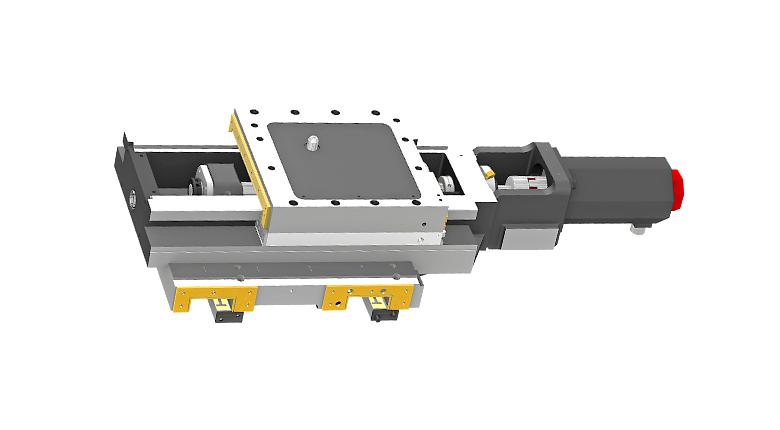

Box guide ways for heavy-duty cutting

Compact design, able to install within a limited space.

Ergonomic design for convenient access to chuck and tool



Specifications

Description Unit HD2200
Max Turning Dia mm 370
Max Turning Length mm 565
Chuck Size inch 8″
Driving Method - Belt
Spindle RPM r/min 4,000
Spindle Output kw 18.5/15
Spindle Torque N.m 206/125.3
Travel(X/Z) mm 210/580
Rapid Travel(X/Z) m/min 24/30
Slide Type - BOX
No. of Tools EA 12
Tool Size mm 25/40
CNC - H/W FANUC i
