HYUNDAI WIA

HYUNDAI WIA

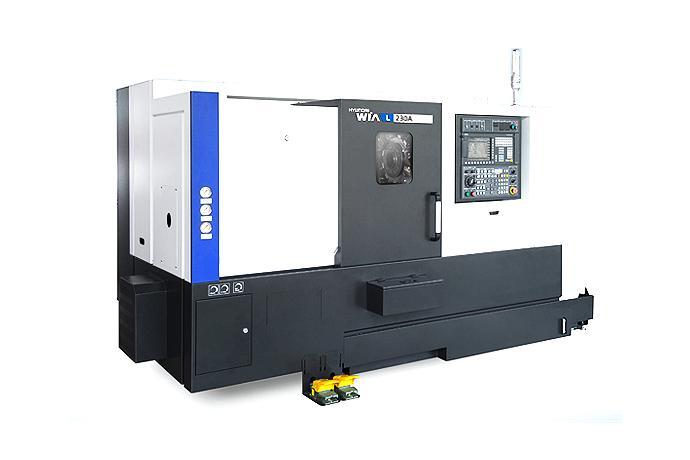

High Performance T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

Shortened cycle time to improve productivity.

Adequate machine structure to produce various products.

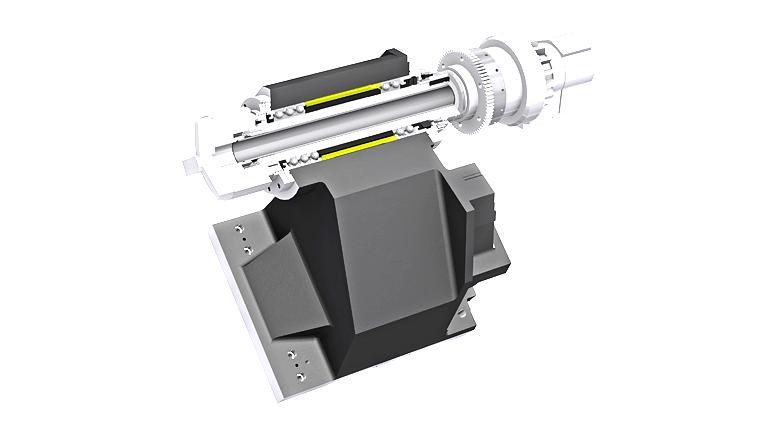

Adopted angular ball bearing to maintain high-rigidity and low heat absortion.

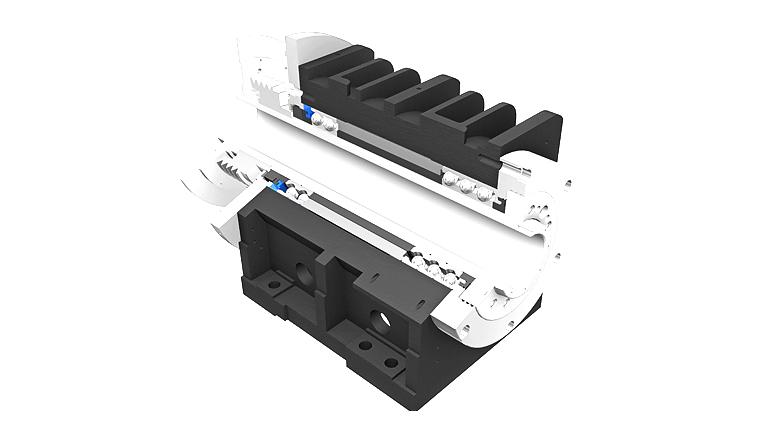

Strengthened Equipment Sturdiness through Structural Analysis

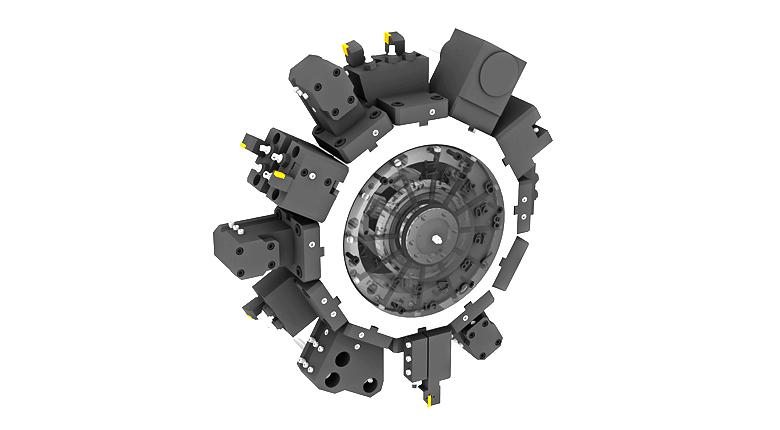

Applied BMT turret to cut heavy-duty products (Mill Turret Attachment Machine)



Specifications

Description Unit L230C L230MC
Max Turning Dia mm 355 310
Max Turning Length mm 422 342
Chuck Size inch 10″ 10″
Driving Method - Belt Belt
Spindle RPM r/min 3,000 3,000
Spindle Output kw 18.5/15 18.5/15
Spindle Torque N.m 461/374 461/374
Travel(X/Z) mm 220/440 220/440
Rapid Travel(X/Z) m/min 36/36 36/36
Slide Type - LM LM
No. of Tools EA 12 12
Tool Size mm 25/40 25/40
Milling Tool Speed r/min - 5,000
CNC - H/W FANUC i H/W FANUC i
