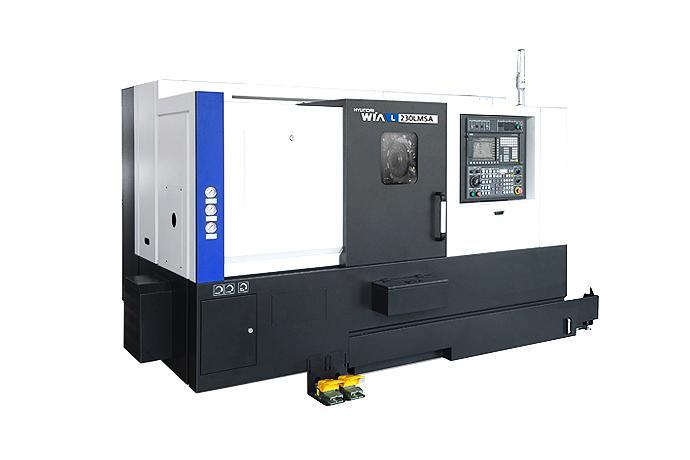

High Performance T/C
Model Name
L230LA
Series
CNC Turning Center
View All
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Product Type
Machine
Brand
-
SKU
13836
Product Name
High Performance T/C
Model Name
L230LA, L230LMA, L230LMSA
Size
-
Weight
-
Product Details

Features

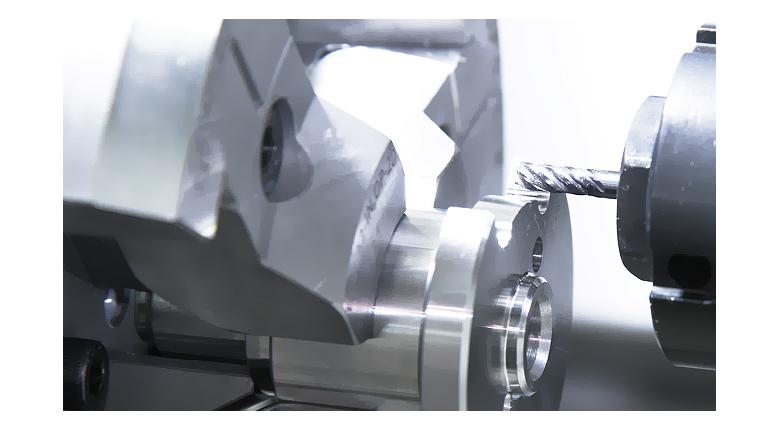

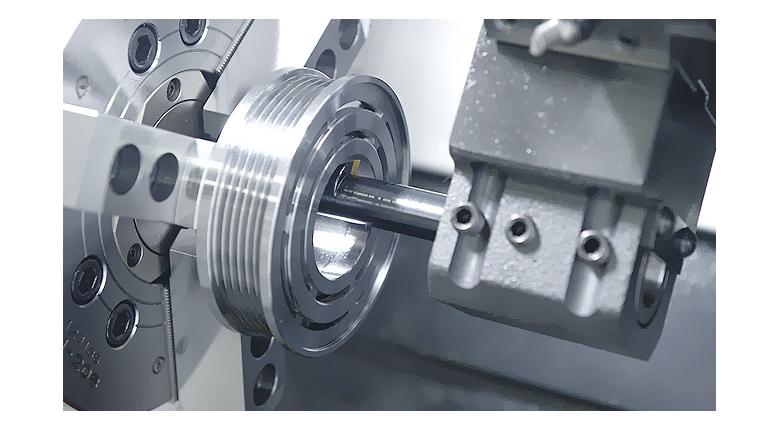

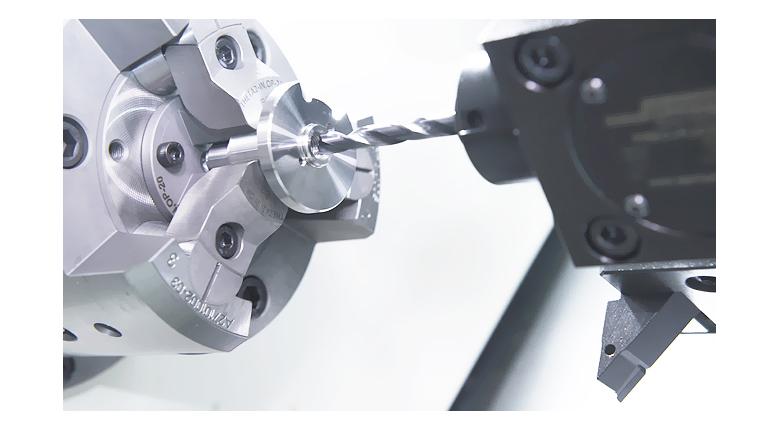

Shortened cycle time to improve productivity.

Adequate machine structure to produce various products.

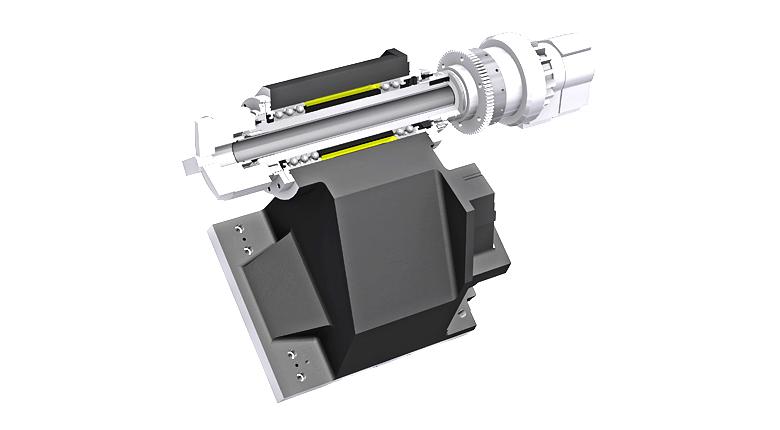

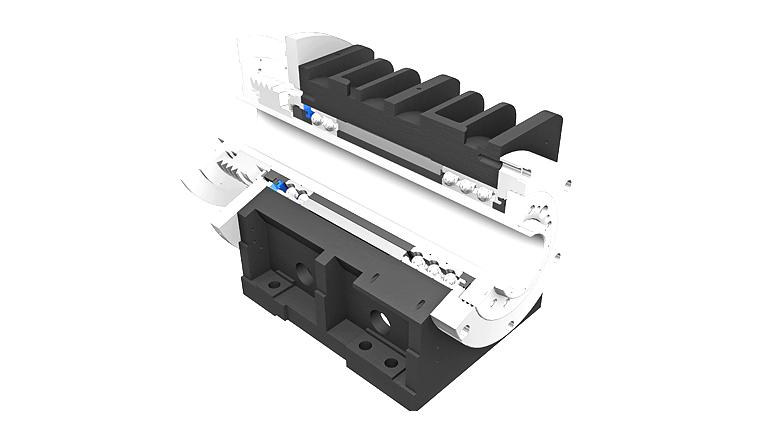

Adopted angular ball bearing to maintain high-rigidity and low heat absortion.

Strengthened Equipment Sturdiness through Structural Analysis

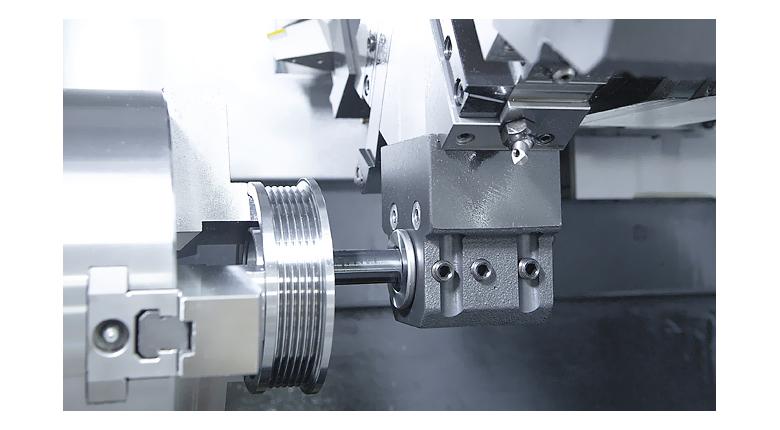

6" sub chuck expands cutting capacity (Sub Spindle Attachment Machine)

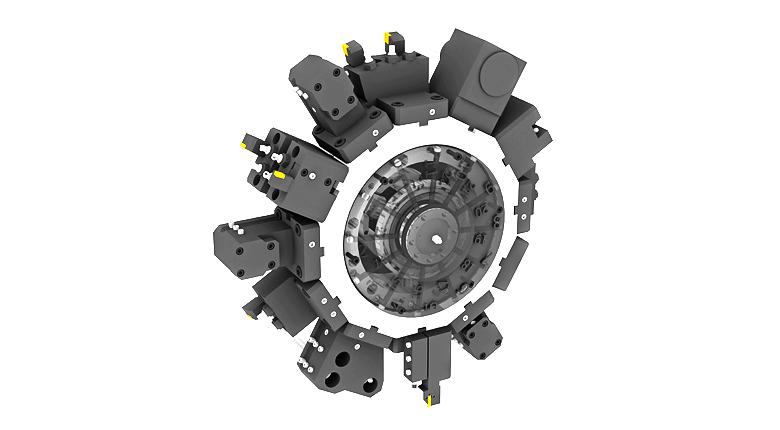

Applied BMT turret to cut heavy-duty products (Mill Turret Attachment Machine)



Specifications

Description Unit L230LA L230LMA L230LMSA
Max Turning Dia mm 355 310 310
Max Turning Length mm 560 521 521
Chuck Size inch 8″ 8″ Main 8″
Sub 6″
Driving Method - Belt Belt Belt
Spindle RPM r/min 4,000 4,000 4,000
Spindle Output kw 15/11 15/11 15/11
Spindle Torque N.m 286.6/210.2 286.6/210.2 286.6/210.2
Travel(X/Z) mm 220/560 220/560 220/560/590
Rapid Travel(X/Z) m/min 36/36 36/36 36/36/30
Slide Type - LM LM LM
No. of Tools EA 12 12 12
Tool Size mm 25/40 25/40 25/40
Milling Tool Speed r/min - 5,000 5,000
CNC - H/W FANUC i H/W FANUC i H/W FANUC i
