HYUNDAI WIA

HYUNDAI WIA

High Performance T/C

Model

Series

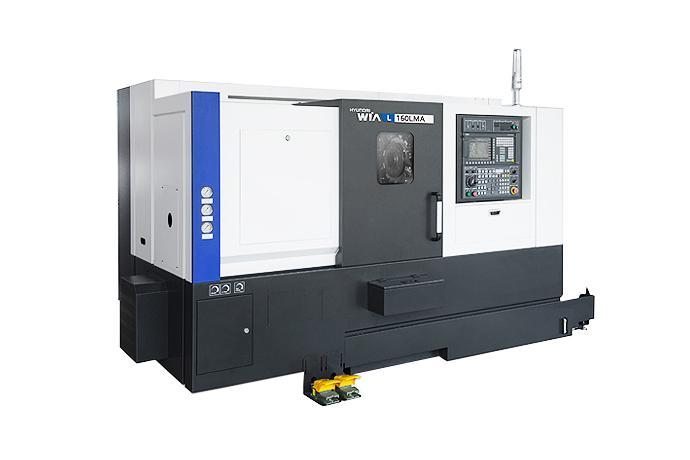

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

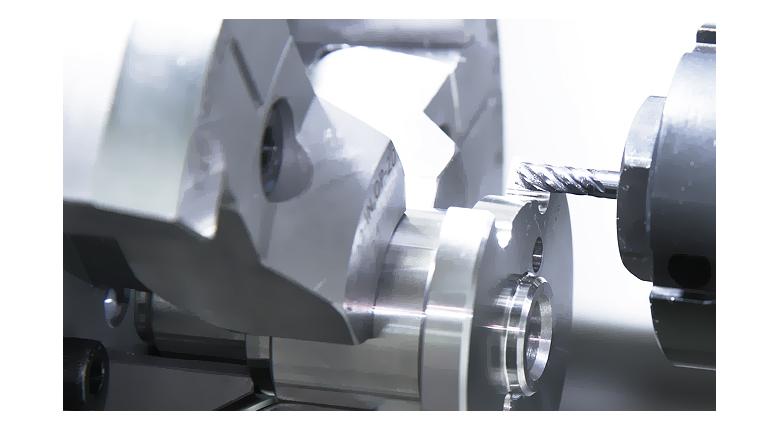

Fast and efficient machine to maximize productivity.

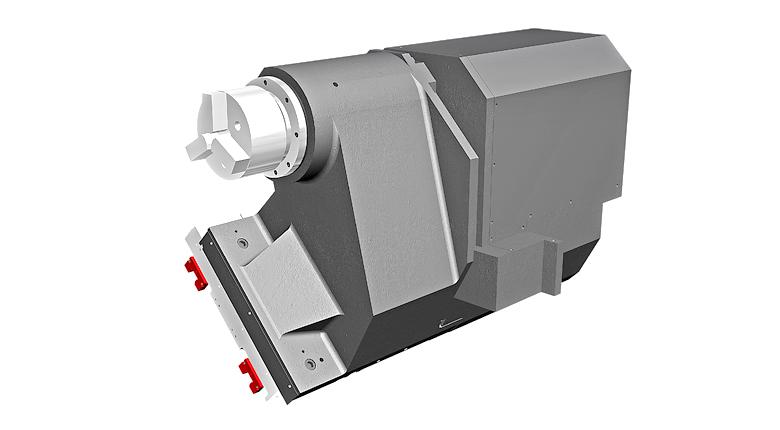

Superior machine structure to produce various products.

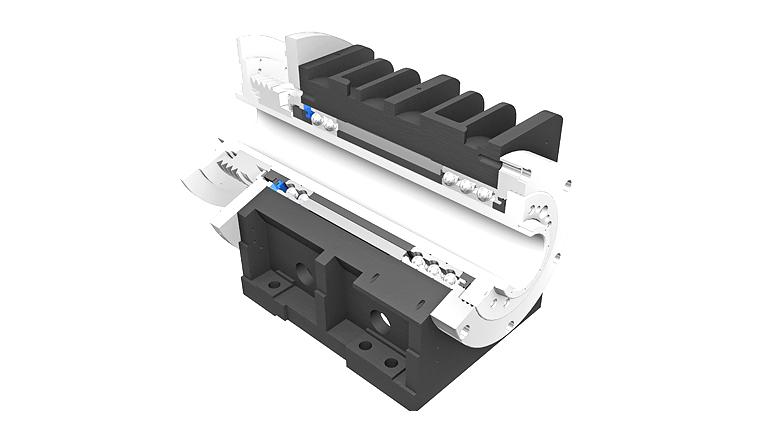

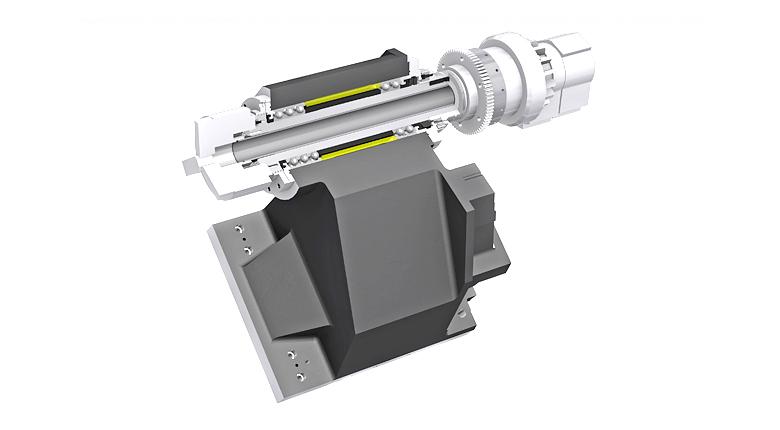

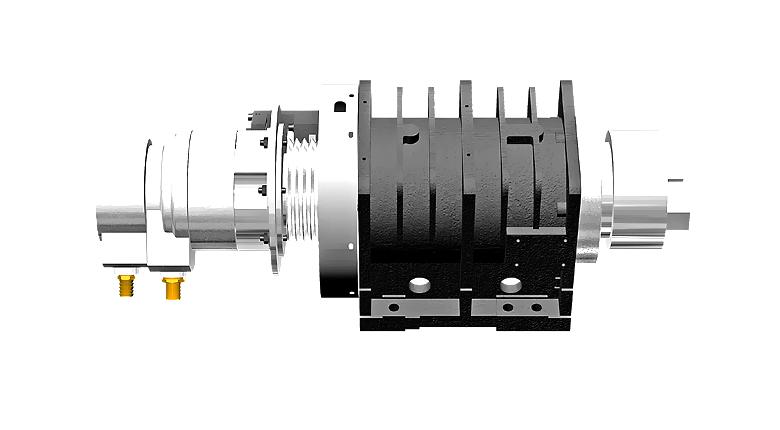

Angular contact ball bearings to maintain high-rigidity and low thermal distortion.

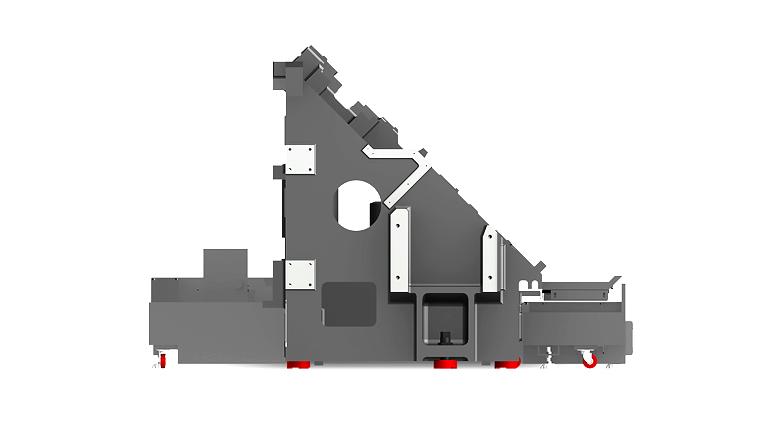

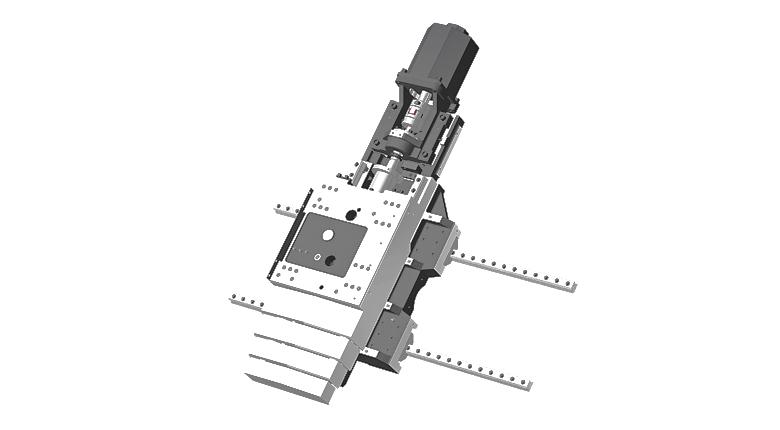

High rigidity through intensive finite element analysis

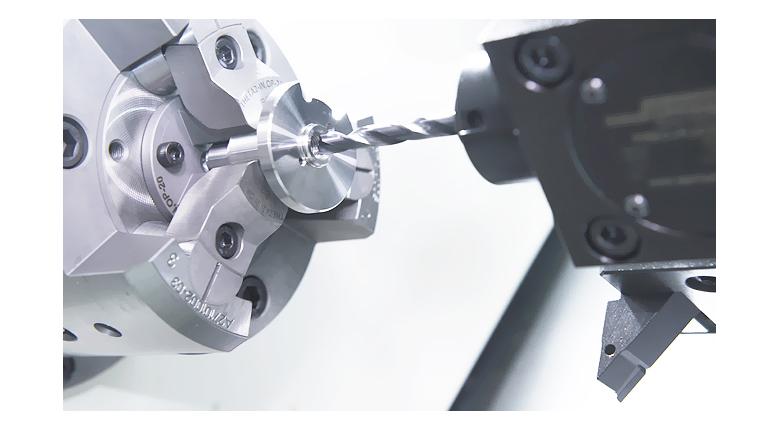

6" sub-spindle expands cutting capacity and capability (optional)

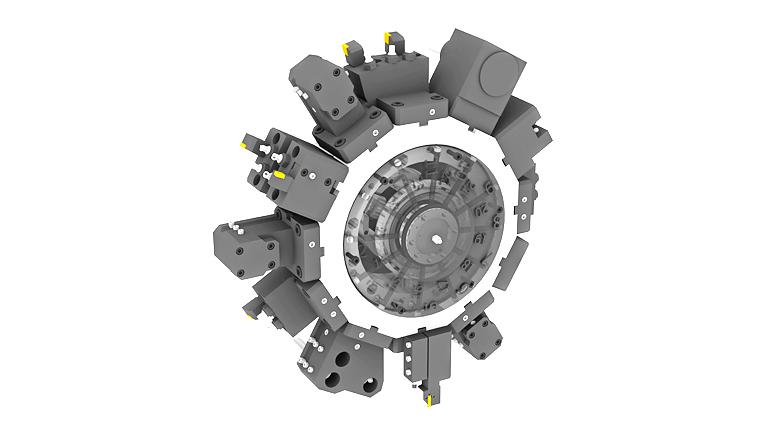

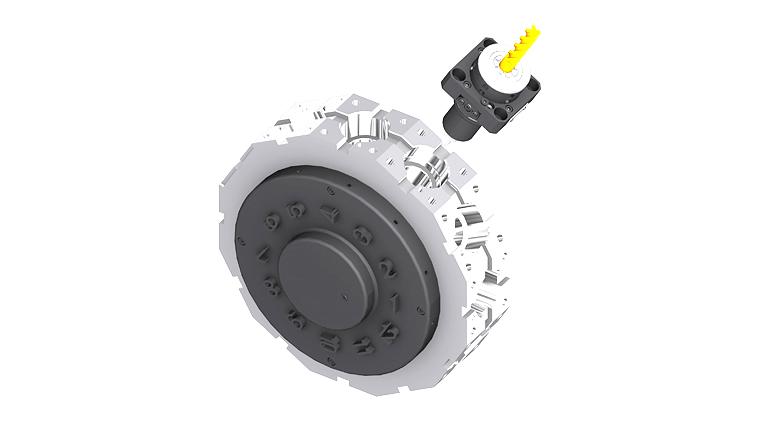

Rigid BMT Turret for heavy cutting (machine equipped with live tools)



Specifications

Description Unit L160A L160MA
Max Turning Dia mm 355 310
Max Turning Length mm 460 388
Chuck Size inch 6″ 6″
Driving Method - Belt Belt
Spindle RPM r/min 6,000 6,000
Spindle Output kw 11/7.5 11/7.5
Spindle Torque N.m 70/48 70/48
Travel(X/Z) mm 220/460 220/400
Rapid Travel(X/Z) m/min 36/36 36/36
Slide Type - LM LM
No. of Tools EA 12 12
Tool Size mm 25/40 25/40
Milling Tool Speed r/min - 5,000
CNC - H/W FANUC i H/W FANUC i
