HYUNDAI WIA

HYUNDAI WIA

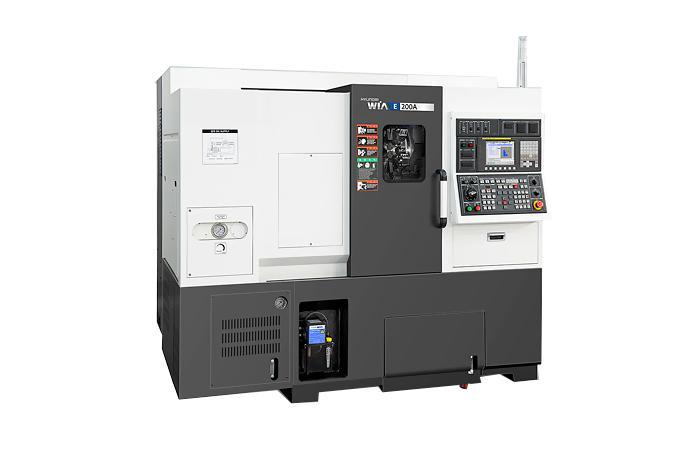

Compact T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

- 45° slanted one-piece rigid bed structure

- Minimal thermal distortion

- Machine structure designed to maximize productivity

- Best in class rapid traverse rate : 36m/min (E200A/MA/C/MC)

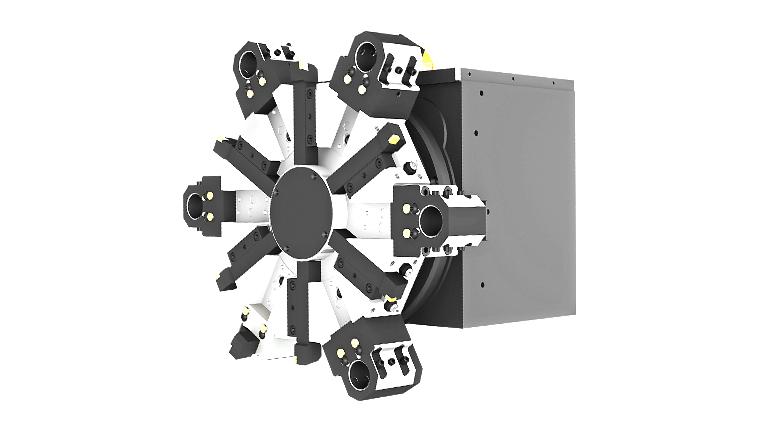

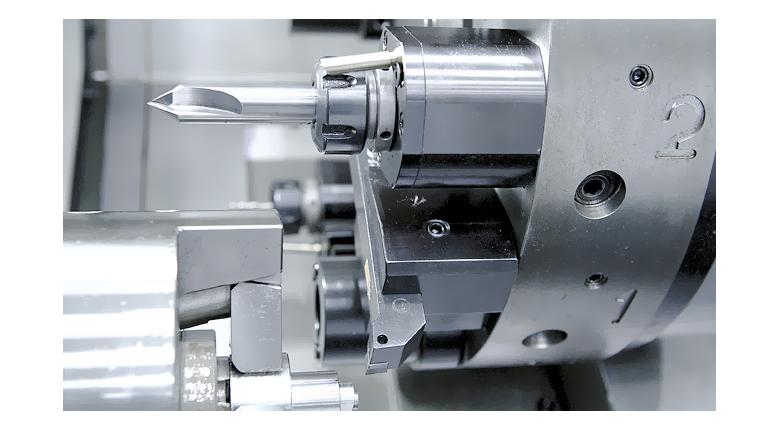

- The most reliable high speed servo turret : 0.1sec/step

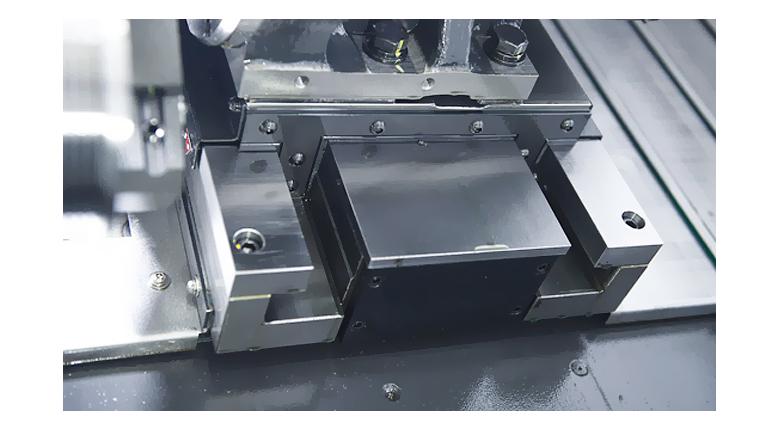

- Box Guideways to handle heavy cutting (E200PA/PC)

- Compact design, able to install within a limited space.

- Ergonomic design allows convenient access to chuck and tool



Specifications

Description

Unit

E200A

E200MA

E200PA

Max Turning Dia

mm

350

290

350

Max Turning Length

mm

300

255

280

Chuck Size

inch

6″

6″

6″

Driving Method

-

Belt

Belt

Belt

Spindle RPM

r/min

6,000

6,000

6,000

Spindle Output

kw

11/15

11/15

11/15

Spindle Torque

N.m

52.5/92.5

52.5/92.5

52.5/92.5

Travel(X/Z)

mm

210/330

210/286

210/330

Rapid Travel(X/Z)

m/min

36/36

36/36

24/24

Slide Type

-

LM

LM

BOX

No. of Tools

EA

12

12

12

Tool Size

mm

25/32

20/32

25/32

Milling Tool Speed

r/min

-

4,500

-
