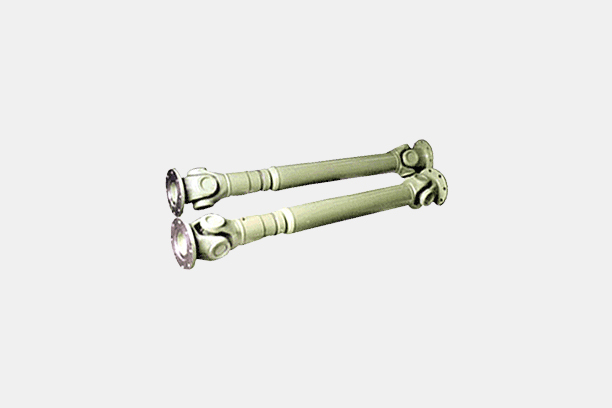

Drawing
Specification
SIZE | Basic Torque (kg·cm) |
Max. Speed r.p.m |
Bore | Dimension(mm) | Weight (kg) |
Size | ||||||||
Min | Max | A | D | L | C | E | Gap | B | F | |||||
HR-60 | 100 | 4.000 | 8 | 12 | 60 | 20 | 32 | 105 | 11 | 5 | 25 | 295 | 0.28 | HR-60 |
HR-100 | 300 | 4.000 | 10 | 22 | 100 | 36 | 66 | 26 | 14 | 10 | 40 | 54 | 1.21 | HR-100 |
HR-135 | 800 | 4.000 | 16 | 30 | 135 | 48 | 90 | 35 | 20 | 14 | 53 | 70 | 2.87 | HR-135 |
HR-180 | 1,500 | 3.000 | 23 | 35 | 180 | 64 | 120 | 46 | 28 | 20 | 70 | 95 | 6.38 | HR-180 |
HR-210 | 3,000 | 3.000 | 28 | 50 | 210 | 76 | 143 | 54 | 35 | 27 | 83 | 110 | 9.40 | HR-210 |
HR-265 | 7,500 | 2.000 | 33 | 60 | 265 | 95 | 178 | 67 | 44 | 32 | 105 | 140 | 19 | HR-265 |
HR-310 | 12,500 | 2.000 | 36 | 70 | 310 | 112 | 208 | 75 | 58 | 36 | 121 | 165 | 31 | HR-310 |
HR-400 | 27,500 | 1.600 | 40 | 85 | 400 | 145 | 270 | 100 | 70 | 44 | 153 | 210 | 70 | HR-400 |
HR-450 | 50,000 | 1,250 | 55 | 100 | 450 | 165 | 300 | 110 | 80 | 50 | 171 | 240 | 101 | HR-450 |
HR-550 | 100,000 | 1.000 | 90 | 130 | 550 | 200 | 365 | 130 | 105 | 53 | 196 | 280 | 170 | HR-550 |
HR-700 | 200,000 | 800 | 100 | 160 | 700 | 255 | 460 | 165 | 130 | 70 | 256 | 364 | 358 | HR-700 |
HR-950 | 500,000 | 600 | 125 | 225 | 950 | 345 | 610 | 220 | 170 | 82 | 372 | 500 | 950 | HR-950 |
