Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139019
Product Name

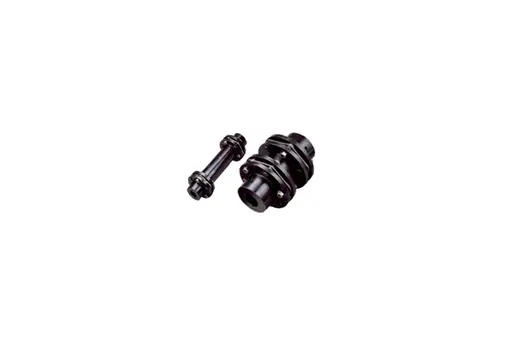

W4-00D Type Disc Flexible Coupling
Model Name
05D, 10D, 15D, 20D, 25D, 30D, 35D, 40D, 45D, 50D, 55D
Size
-
Weight
-
Product Details
도면
사양
| SIZE | 공통 (Common) | W4-00D (Standard) | W4-00SD (Short) | W4-00F (Custom) | |||||||
| 허용토크 (kg-m) | 허용토크 (kg-m) | 허용토크 (kg-m) | 허용토크 (kg-m) | ||||||||
| Torque (kg·m) |
Max. Speed (rpm) |
D (mm) |
Cplg wt (kg) |
GD² (kg·cm²) |
D (mm) |
Cplg wt (kg) |
GD² (kg·cm²) |
B (mm) |
D (mm) |
D Max. (mm) |
|
| 05D | 3.4 | 47,000 | 88.9 | 1.2 | 18 | 36 | 1.1 | 17.8 | 2F+D | 희망하는 축간거리 |
25 |
| 10D | 9.2 | 39,000 | 88.9 | 1.9 | 44 | 39 | 1.7 | 41 | 25 | ||
| 15D | 18 | 34,000 | 101.6 | 2.9 | 84 | 47 | 2.7 | 79 | 29 | ||
| 20D | 25 | 30,000 | 127.0 | 7.1 | 396 | 53 | 6.6 | 136 | 34 | ||
| 25D | 43 | 25,000 | 127.0 | 7.1 | 386 | 62 | 6.6 | 337 | 41 | ||
| 30D | 79 | 22,000 | 127.0 | 10.8 | 800 | 69 | 10.3 | 775 | 48 | ||
| 35D | 130 | 19,000 | 127.0 | 16.3 | 1680 | 78 | 15.6 | 1628 | 57 | ||
| 40D | 210 | 16,000 | 139.7 | 24.7 | 3400 | 89 | 24.0 | 3317 | 64 | ||
| 45D | 340 | 15,000 | 152.4 | 32.5 | 5600 | 97 | 31.5 | 5428 | 76 | ||
| 50D | 500 | 13,000 | 177.8 | 50.0 | 11200 | 109 | 48.4 | 10865 | 89 | ||
| 55D | 600 | 11,000 | 177.8 | 75.0 | 20400 | 134 | 9 | 20127 | 102 | ||
