product Image

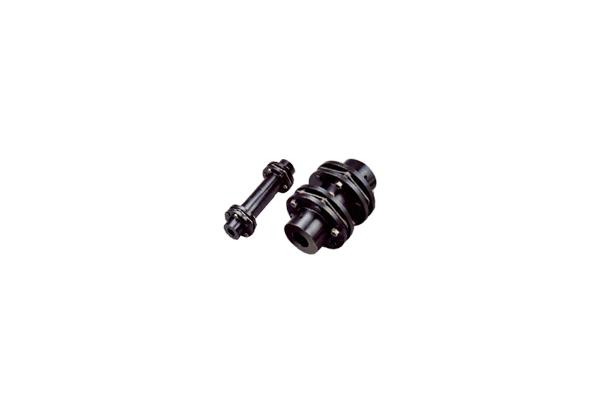

W4-00S Type Disc Flexible Coupling
Model Name
05S
Series
Disc Flexible Coupling
View All
Data
-
Manufacturer information
provider logo
HYUNDAI INDUSTRIAL MACHINERY

Power Transmission Device Manufacturer, Universal Joint, Coupling

Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139018
Product Name
W4-00S Type Disc Flexible Coupling
Model Name
05S, 10S, 15S, 20S, 25S, 30S, 35S, 40S, 45S, 50S, 55S
Size
-
Weight
-
Product Details

도면



사양

IZE 허용토크 (kg-m) 허용최대
Radial
Load		 Max.
Speed
(rpm)		 Bore
die.
(mm)		 Dimensions (mm) Cplg
wt
(kg)		 GD²
1kg
(m²)		 볼트체결
토오크
kg·m
Radial
Load		 1/3
Load		 2/3
Load		 Max
Radial
Load		 Emax. A B F G H J
05S 3.4 1.5 1.2 0.8 15 47000 23 67 55.8 25 5.8 33 16 0.6 8 0.9
10S 9.2 4.1 3.2 2.3 25 39000 32 81 57.1 25 7.1 46 16 1.1 24 0.9
15S 18 8.1 6.3 4.5 56 34000 35 93 66.4 29 8.4 51 24 1.7 48 2.2
20S 25 11.3 8.7 6.0 83 30000 42 104 79 34 11 61 30 2.5 80 2.2
25S 43 19.3 16.0 11.0 120 25000 50 126 93.2 41 11.2 71 27 4.3 224 4.2
30S 79 35.5 27.6 20.0 180 22000 58 143 108.5 48 12.5 84 28 6.9 440 7.3
35S 130 58.5 45.5 32.5 270 19000 74 168 130 57 16 106 26 11.3 1080 7.3
40S 210 94.5 73.4 52.5 380 16000 83 194 145 64 17 118 30 16.7 2080 15.9
45S 340 153 19 85 450 15000 95 214 174.8 76 22.8 137 34 22.7 3520 15.9
50S 500 225 171 125 610 13000 109 246 202 89 24 156 26 35.4 7200 22.1
55S 650 292 227 163 770 11000 118 276 230 102 26 169 42 52.0 12800 55.3
