Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139005
Product Name
Flange Type Ball Joint
Model Name
BJC 75, BJC 95, BJC 100, BJC 125, BJC 150, BJC 175, BJC 200, BJC 225
Size
-
Weight
-
Product Details

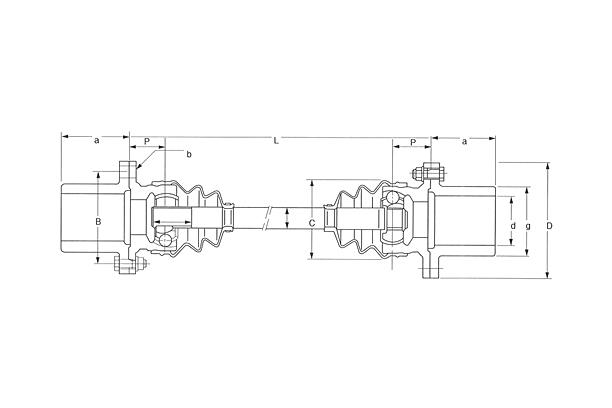

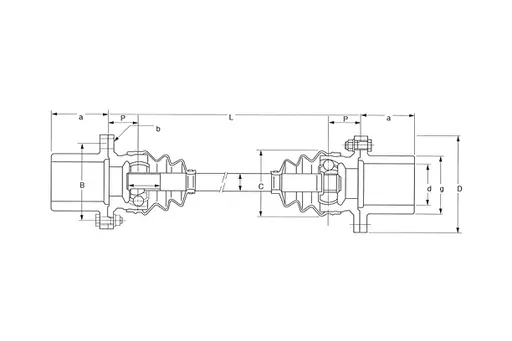

도면
사양
| SIZE ＼ Mark | 외륜 외경C O.D. of Tire |
Flange | P | 전장(L) Total Length |
Torque (kgf · m) |
각도 Angle ( °) |
|||||
| D | g | Max. d | a | B | b | Min. | |||||
| BJC 75 | 81 | 118 | 70 | 45 | 75 | 97 | 3-10.2 | 40 | 240 | 60 | 25° |
| BJC 95 | 108 | 136 | 80 | 50 | 80 | 110 | 3-12.2 | 46 | 290 | 115 | 25° |
| BJC 100 | 112 | 154 | 90 | 60 | 95 | 125 | 3-14.3 | 47 | 305 | 145 | 25° |
| BJC 125 | 148 | 179 | 110 | 70 | 112 | 150 | 3-14.3 | 55 | 375 | 280 | 25° |
| BJC 150 | 165 | 192 | 125 | 80 | 120 | 165 | 6-14.3 | 76 | 448 | 480 | 25° |
| BJC 175 | 172 | 215 | 140 | 90 | 135 | 185 | 6-17 | 83 | 470 | 765 | 25° |
| BJC 200 | 199 | 250 | 160 | 100 | 150 | 215 | 6-19 | 95 | 540 | 1140 | 25° |
| BJC 225 | 222 | 265 | 175 | 110 | 165 | 228 | 6-21 | 105 | 580 | 1500 | 25° |
