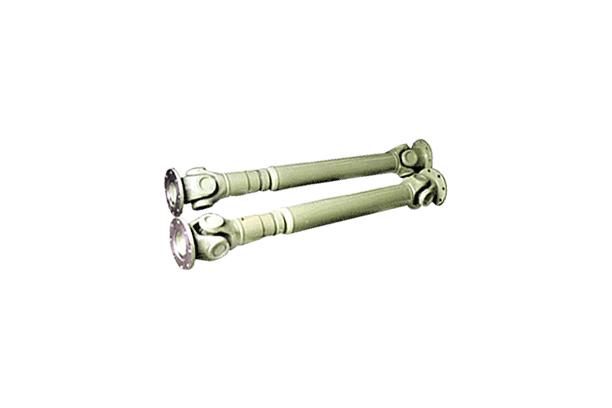

HD Type Universal Joint
Model Name
HD 180
Series
Universal Joint
View All
Data
-
Manufacturer information
provider logo
HYUNDAI INDUSTRIAL MACHINERY

Power Transmission Device Manufacturer, Universal Joint, Coupling

Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139001
Product Name
HD Type Universal Joint
Model Name
HD 180, HD 225, HD 250, HD 280, HD 315, HD 355, HD 380PP2C, HD 400, HD 450, HD 500, HD 550, HD 600, HD 650, HD 700
Size
-
Weight
-
Product Details

도면



사양

기호
Title
Number		 Swing
Dia
D
(mm)		 동적최대
Torque
Dynamic
Max Torque
Contents
(ton/m)		 최대작동각
Maximum
Working
Angle		 주요촌법(mm)Major Measurement Sliding
Strok
(mm)
L1
(Min.)		 D1 H K
Spline
Dia.		 H1 I-H B
HD 180 180 2.2 10° 910 155 115 102 90 8-Ø16 154 70
HD 225 225 4.7 1120 190 140 120 110 8-Ø16 199 75
HD 250 250 6.1 1225 215 155 130 120 10-Ø18 222 90
HD 280 280 9.4 1340 230 170 150 130 10-Ø20 248 100
HD 315 315 13 1495 270 195 170 150 12-Ø22 280 110
HD 355 355 19 1670 300 220 210 170 12-Ø24 317 130
HD 380PP2C 380 25 3° 3120 375 220 - 130 16-Ø25 416 0
HD 400 400 27 10° 1860 325 250 245 190 14-Ø26 358 140
HD 450 450 38 2070 395 280 280 210 14-Ø30 402 150
HD 500 500 49 - - 310 - - 16-Ø33 446 -
HD 550 550 65 - - 340 - - 16-Ø36 492 -
HD 600 600 85 - - 370 - - 18-Ø39 536 -
HD 650 650 105 - - 400 - - 18-Ø42 580 -
HD 700 700 135 - - 430 - - 20-Ø45 625 -

상기 내용 외 제작 주문시 본사에 문의바람.
Inquires for other sizes are welcome.
