Hyundai Automatic Packaging Machine

Hyundai Automatic Packaging Machine

High Speed Continuous Motion Horizontal Cartoner

Model

Series

Packaging Machine


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea


Description

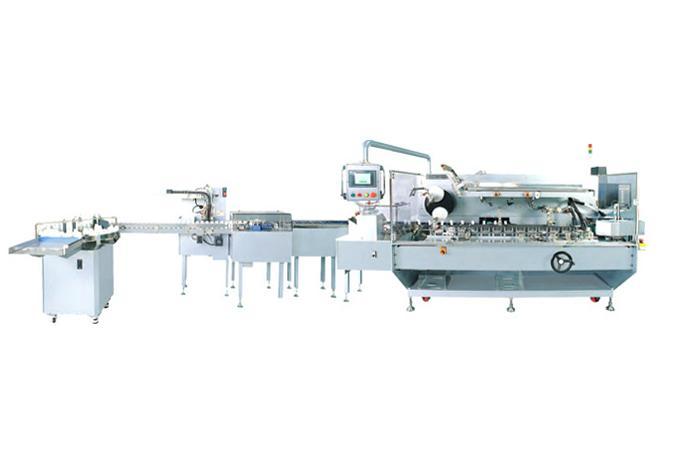

Hyundai Automatic Packaging Machine High Speed Continuous Motion Horizontal Cartoner HC-150 / 200 / 300

* FEATURES
HC-Series is built in balcony construction; a conception allows the complete separation of mechanical working from the

packaging area

+ Stable cartoning in high speed by specially designed forming device
+ Less-noisy & easy maintenance
+ Quick size change-over by digital indication modulator
+ Perfect safty device for operators
2+  pusher type, Turret pusher type



* SPECIFICATION
+ Range of speed : 20~65
+ Carton type : Tuck-in(Reverse, Straight ), Hotmelt
+ Weight : 2,500kg (Main Machine) + Option
+ Power consumption : 1.0KW + Option



* SIZE OF CARTON(mm)
+ Carton Pitch - A TYPE : 101.6
   B TYPE : 127
   C TYPE : 190.5
+ Width: 15~70(A TYPE), 15~95(B TYPE),
   15~165(C TYPE)
+ Height: 15 ~65
+ Length: 70~180



* DIMENSION
+ Width: 1,730mm(A, C Type), 1,475mm(B Type)
+ Height: 1,760mm(A Type), 1,950mm(B, C Type)
+ Length: 2,190mm(A Type), 2,135mm(B Type), 3,600mm(C Type)



*OPTION
+ Date coder (Ink embossing or embossing)
+ Hot melt applicator
+ Leaflet loading device (Magazine, Leaflet folder)
+ Autoloading device (PTP, Bottle, Tube, Pillow etc)
+ Bundling & Special loading device
