Deep Cooled Vacuum Ultra Violet Scientific Cameras
High energy camera detection that can interface with a vacuum chamber for measurement down to 120 nm

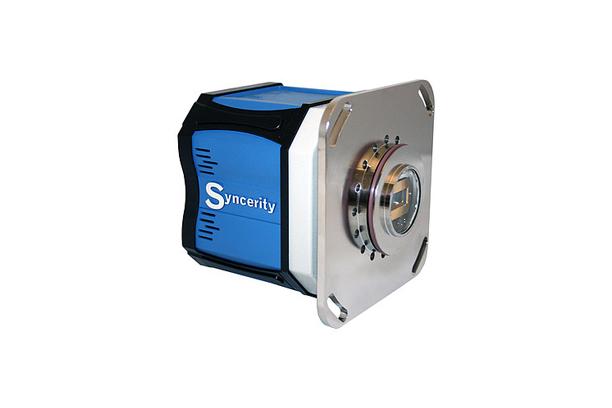

The new Syncerity VUV Camera features :
• High QE in VUV Range 58% @120 nm (no ARC)
• Attachable to High Vacuum Chamber with Viton® O-Ring, down to < 10-6 Torr
• TE-cooled to -50°C (Vacuum) or -30°C with N2 Purge Low Dark Current, Low Noise
“Typical” VUV Response*
Type A
Type B
*This data is reference data only and is not guaranteed.
*Cameras provided without window have no warranty on CCD and need special handling under N2
| Q.E. | Standard Type-A |
Special Type-B |
Special Type-B |
|---|---|---|---|
|
CCD pixel |
2048 x 70 | 2048 x 256 2048 x 512 |
1024 x 128 |
| CCD pixel size | 14 x 14 µm | 12 x 12 µm | 24 x 24 µm |
| CCD height | 1 mm | 3 mm / 6 mm | 3 mm |
| CCD AR coating |
Without AR coating for 115 nm - 200 nm With AR coating for 135 nm - 1100 nm |
||
| Window | No window or with MgF2 window | ||
| Flange | Special flange for vacuum chamber with Viton 0-ring (Standard Syncerity cap + MgF2 window is also available) | ||
| CCD Sensor Format | 2048 × 70 |
| Quantum Efficiency at 20 °C | See type A curve for VUV and UV-VIS QE responses |
| Pixel Size | 14 μm × 14 μm |
| Image Area | 28.7 mm × 0.98 mm; 100% fill factor |
| Deep Thermoelectric Cooling | -50°C under vacuum (10-6 mbar) with +25°C ambient or -30°C under N2 purging |
| Single Pixel Well Capacity | 50 000 e¯/pixel (minimum); 60 000 e¯/pixel (typical) |
| Serial Register Full Well Capacity | 250 000 e¯/pixel (minimum) 500 000 e¯/pixel (typical output register saturation) |
| Scan Rates | 45 kHz and 500 kHz |
| Readout Noise (at 45 kHz and at -50 °C)*1 |
9 e– (typical) to 12 e¯ (maximum) |
| Readout Noise (at 500 kHz and at -50 °C)*1 | 20 e- (Typical) to 25 e- (Maximum) |
| Maximum Spectral Rate | 20 Hz at 45 kHz scan rate 189 Hz at 500 kHz scan rate |
| Digitization | 16 bit ADC |
| Dynamic Range (Typical for Single Pixel)*2 | 55 500:1 |
| Non Linearity (Measured on Each Camera) | <0.15% (typical) at 45 kHz (0.4% maximum) <0.20% (typical) at 500 kHz (1% maximum) |
| Dark Current at -50 °C*3 (Note that pixel size = 14 μm) |
0.05 e – /pixel/s (typical) |
| Software-Adjustable Gains | 2,4 and 10 e-/count at –50°C |
| Environmental Conditions |
|
| Weight | 1.769 kg (3.90 lb) |
| Dimensions | Refer to mechanical drawings |
|
Power Requirements AC-DC Power Supply (Provided) Recommendation for OEM Supplying Camera |
90- 264 Vac, 47 - 63 Hz
|
| Minimum Computer Requirements: |
|
Specifications subject to change without notice
Footnotes :
1. Entire system noise measured for a single pixel
2. Dynamic range is defined as Full Well/Readout Noise, measured at 45 kHz
3. Averaged over CCD area, but excluding any regions of blemishes
Syncerity - Other CCD Format Specifications: Contact us
| 2048 x 256 | 2048 x 512 | 1024 x 128 |
Connecting to Syncerity
| Power Interface: Connector Type: |
PDP-40, Mini PWR DIN, 4-Position, STR Plug |
| Camera Interface: Connector Type: |
USB Standard Type B |
|
Sync I/O Connectors: Input Jack: Output Plug: |
SMB TTL IN (EXT TRIG In) TTL OUT (SHUTTER Out) |
