Product Name
TorqueShield
Model Name
T07B, T09B, T11B, T15B, T19B, T23B
Size
-
Weight
-
Product Details

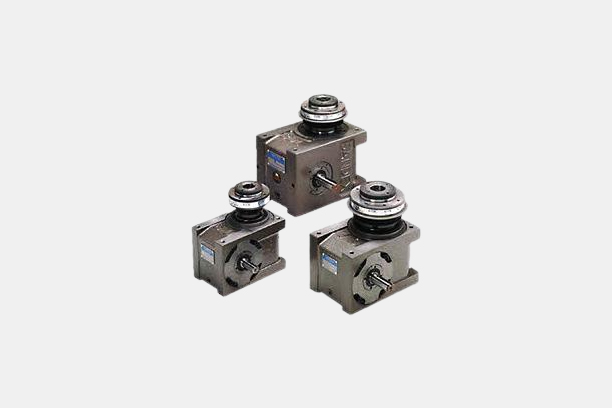

In case of overload on the capability of index output, it causes a huge problem on the index main body.
Torque shield is a safety unit to protect such an accident in advance.
When huge torque is caused on the output, it serves as a role of protecting the main body by blocking this torque.
It is available to select flange type or coupling type depending on the usage.
| MODEL | T07B | T09B | T11B | T15B | T19B | T23B |
|---|---|---|---|---|---|---|
| torque limiting range (N.m) |
40~250 | 60~450 | 90~600 | 300~2200 | 500~4500 | 1200~5500 |
| Maximum allowed number of rotation(rpm) |
200 | 200 | 200 | 140 | 120 | 100 |
Product characteristics
 |
||
| Applied to HA-series in the form of hollow fixed shaft and output flange. | Use the mid-air hole to configure the additional wire or device | Big bore type torque shield is semi-permanent. |
Characteristics chart of big bore type torque shield
Big bore type torque shield is applied to the HA type index.
(example: HA070 model is applied with T7B and HA090 model is applied with T09B torque shield)
| Form | Code | torque limiting range | pitch of torque adjusting nut |
max allowed radial load(N) |
max allowed thrust load(N) |
max allowed bending moment (N.m) |
max allowed RPM |
inertia momen (kg.m2) |
weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| T07B | 15L 25H |
40~150 100~250 |
2 | 2450 | 2950 | 45 | 200 | 0.02 | 4.5 |
| T09B | 20L 45H |
60~200 140~450 |
2 | 5200 | 5000 | 100 | 200 | 0.07 | 9.6 |
| T11B | 23L 60H |
90~230 150~600 |
2 | 7300 | 7000 | 180 | 200 | 0.15 | 15 |
| T15B | 100L 220H |
300~1000 650~2200 |
2 | 11800 | 12000 | 430 | 140 | 0.8 | 43 |
| T19B | 200L 450H |
500~2000 1500~4500 |
2 | 16800 | 17000 | 750 | 120 | 2.1 | 74 |
| T23B | 350L 550H |
1200~3500 2000~5500 |
2 | 24800 | 35000 | 1950 | 100 | 4.5 | 110 |
