Product Name

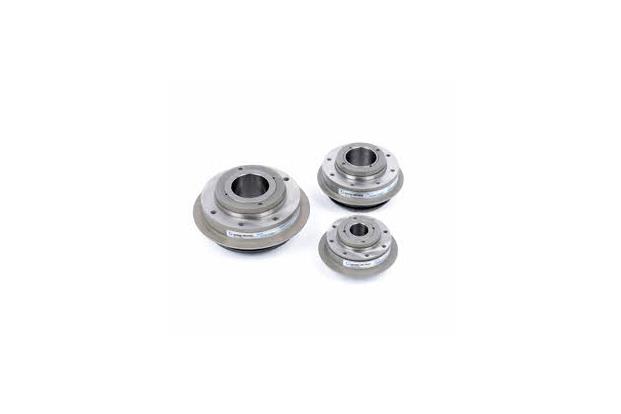

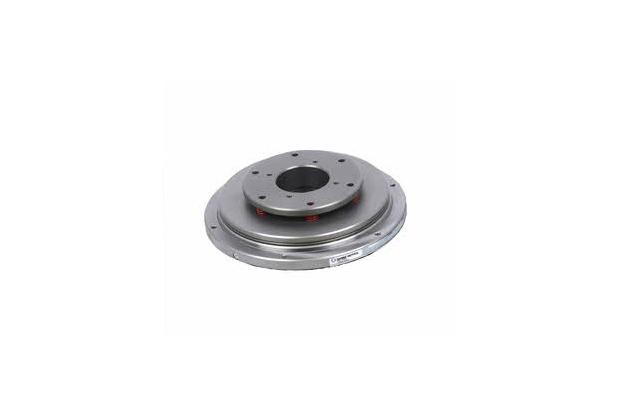

TorqueShield
Model Name
T06C, T07C, T08C, T11C, T14C
Size
-
Weight
-
Product Details
In case of overload on the capability of index output, it causes a huge problem on the index main body.
Torque shield is a safety unit to protect such an accident in advance.
When huge torque is caused on the output, it serves as a role of protecting the main body by blocking this torque.

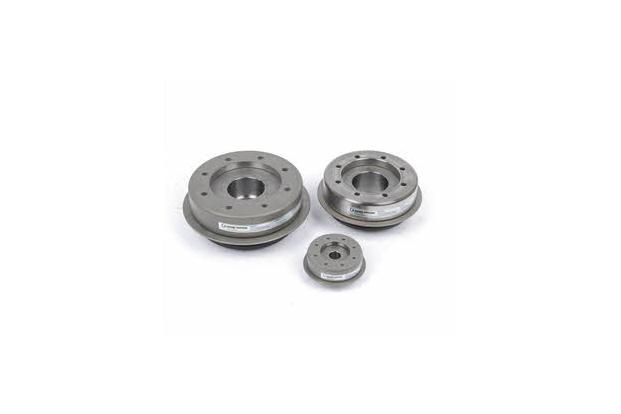

It is available to select flange type or coupling type depending on the usage
| MODEL | T06C | T07C | T08C | T11C | T14C |
|---|---|---|---|---|---|
| torque limiting range (N.m) |
3~50 | 28~350 | 51~450 | 105~1000 | 220~2000 |
| Maximum allowed number of rotation (rpm) |
1000 | 700 | 500 | 400 | 300 |
Product characteristics
 |
|||
| Connecting two of shaft each other, protects index device from the overload in rotation direction | Between index device and output shaft, serves as a complment to concentricity. | When connecting two of shaft each other, compensates for the miss-alignment, Angle deviation and deviation of parallelism. | Torque shields are semi-permanent |
Type installed with index
Value in the () is the thickness of the spacer inserting into the torque shield and index main body
When confirming the values of the option installation, add the thickness on this spacer
| HD기종 | HD045 | HD060 | HD070 | HD080 | HD110 | HD140 | HD170 |
|---|---|---|---|---|---|---|---|
| T06C | ● (5) |
● (10) |
● (19) |
||||
| T07C | ● (7) |
● (15) |
● (17) |
||||
| T08C | ● (9) |
● (34) |
|||||
| T11C | ● (24) |
● (46) |
|||||
| T14C | ● (20) |
Additional spacer is needed when applying it on the HP index (Discuss it with us in advance)
| HP기종 | HP100 | HP125 | HP150 | HP175 | HP200 | HP250 | HP320 |
|---|---|---|---|---|---|---|---|
| T06C | ● | ● | |||||
| T07C | ● | ● | ● | ||||
| T08C | ● | ● | ● | ||||
| T11C | ● | ● | ● | ||||
| T14C | ● | ● |
