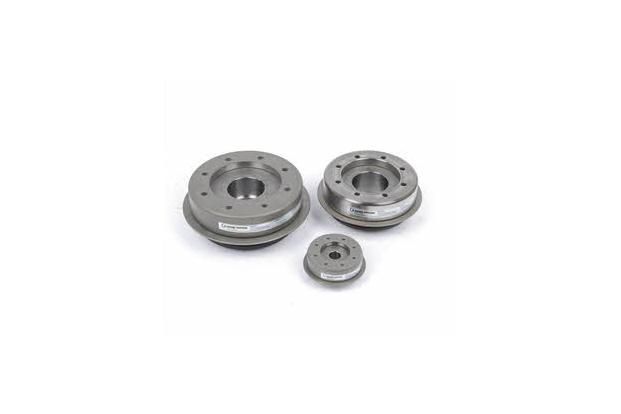

Description
In case of overload on the capability of index output, it causes a huge problem on the index main body.

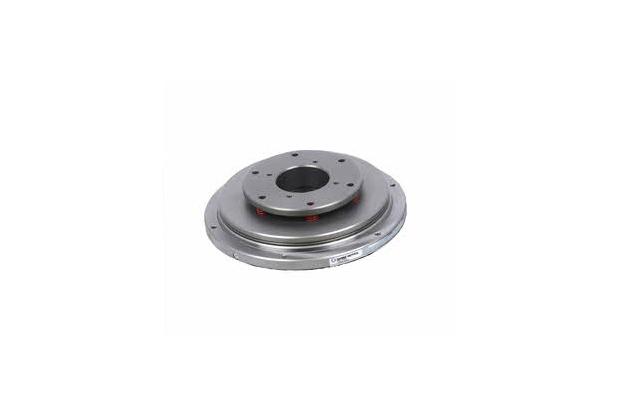

Torque shield is a safety unit to protect such an accident in advance.
When huge torque is caused on the output, it serves as a role of protecting the main body by blocking this torque.

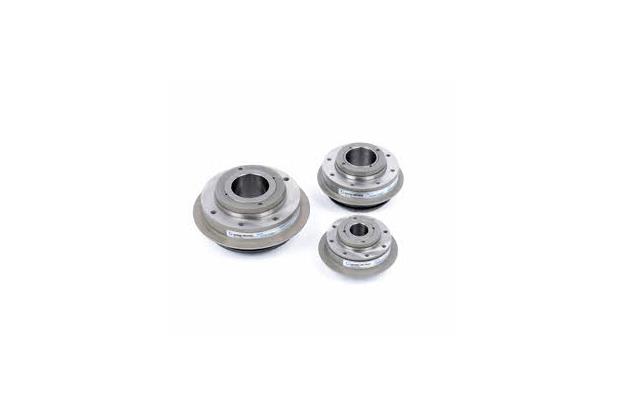

It is available to select flange type or coupling type depending on the usage.
| MODEL | T06F | T07F | T08F | T11F | T14F | T18F |
|---|---|---|---|---|---|---|
| torque limiting range (N.m) |
3~50 | 35~400 | 35~600 | 120~1200 | 110~1800 | 400~5000 |
| Maximum allowed number of rotation (rpm) |
800 | 600 | 400 | 300 | 250 | 180 |
Product characteristics
 |
|||
|
Torque shields is a device that protects the overload in rotation direction. |
Accurately deliver torque with the compact design and structure and also outstanding physical characteristics |
Available to attach table, gear, and sprocket on the flange side |
Torque shields are semi-permanent |
Type installed with index
Value in the () is the thickness of the spacer inserting into the torque shield and index main body.
Add the thickness on this spacer when confirming the values of the option installation.
| HD기종 | HD045 | HD060 | HD070 | HD080 | HD110 | HD140 | HD170 |
|---|---|---|---|---|---|---|---|
| T06F |
● |
● (5) |
● (5) |
||||
| T07F | ● (5) |
● (5) |
● (5) |
||||
| T08F | ● (5) |
● (14) |
|||||
| T11F | ● (5) |
● (21) |
|||||
| T14F | ● (20) |
Additional spacer is needed when applying it on the HP index (Discuss it with us in advance)
| HP기종 | HP100 | HP125 | HP150 | HP175 | HP200 | HP250 | HP320 |
|---|---|---|---|---|---|---|---|
| T07F | ● | ● | |||||
| T08F | ● | ● | ● | ||||
| T11F | ● | ● | ● | ||||
| T14F | ● | ● | ● | ||||
| T18F | ● | ● |
