HANDOL PUMPS, The Republic of Korea - Komachine Supplier Profile and Product List

- Handol Pumps, established in 1993, is a specialized manufacturer of API 610 and API 685 compliant centrifugal pumps. The company provides pump solutions tailored for diverse industrial sectors including power generation, oil & gas, and petrochemicals. Recognized for its world-class technology and quality, it is a global hidden champion exporting products to over 30 countries. Handol Pumps stands as a key contributor to the domestic and international plant industries, leading advancements in pump technology.Handol Pumps, established in 1993, is a specialized manufacturer of API 610 and API 685 compliant centrifugal pumps. The company provides pump solutions tailored for diverse industrial sectors including power generation, oil & gas, and petrochemicals. Recognized for its world-class technology and quality, it is a global hidden champion exporting products to over 30 countries. Handol Pumps stands as a key contributor to the domestic and international plant industries, leading advancements in pump technology.

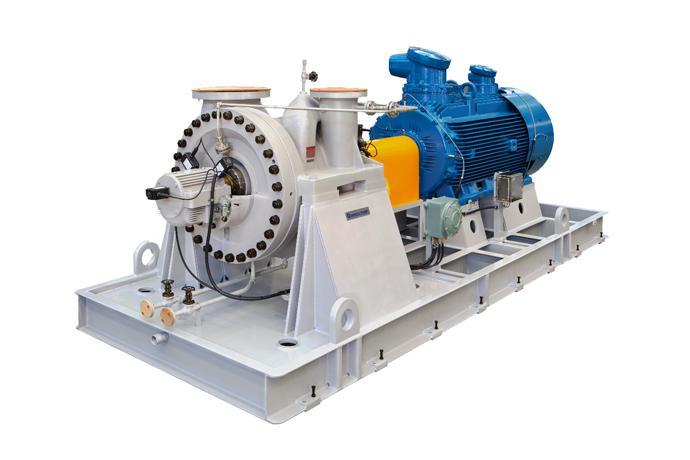

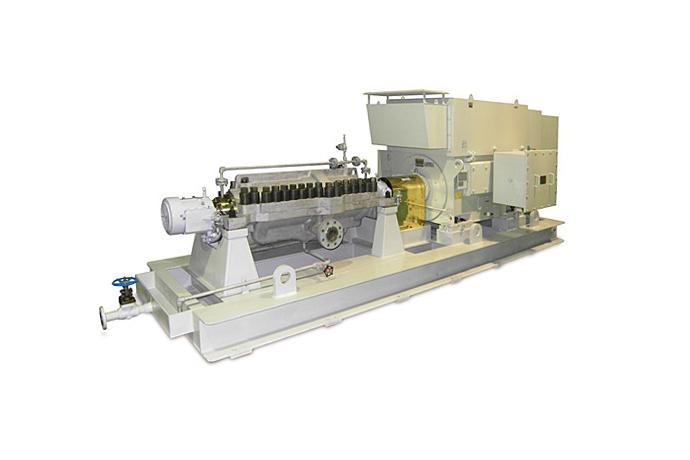

- API 610 Centrifugal Pumps: A comprehensive range of pump types including Overhung, Between Bearing, and Vertically Suspended pumps. Centerline-mounted Single-stage Overhung Pumps (models: IPH, LN, AH, LNA, APVF, IPV) feature heavy-duty centerline-mounted construction for API 610 nozzles and a back pull-out design. Axially Split Double Suction Pumps (models: DSH, DCN, DSA, DCA) offer capacities up to 15,000 m³/h, pressures up to 25 bar, and temperatures up to 150°C. Axially Split Double Volute Type Pump (model: ASM) achieves radial and axial thrust balance through double volute hydraulic passages and opposed impeller mounting. Ring Section Pumps (models: STN, STB, TMN, TMS) comply with API 610/ISO 13709 Type BB4 standards, with capacities up to 900 m³/h, pressures up to 220 bar, and temperatures up to 200°C. Barrel Pumps (model: BTN) feature a double-casing construction and centerline-mounted design.API 610 Centrifugal Pumps: A comprehensive range of pump types including Overhung, Between Bearing, and Vertically Suspended pumps. Centerline-mounted Single-stage Overhung Pumps (models: IPH, LN, AH, LNA, APVF, IPV) feature heavy-duty centerline-mounted construction for API 610 nozzles and a back pull-out design. Axially Split Double Suction Pumps (models: DSH, DCN, DSA, DCA) offer capacities up to 15,000 m³/h, pressures up to 25 bar, and temperatures up to 150°C. Axially Split Double Volute Type Pump (model: ASM) achieves radial and axial thrust balance through double volute hydraulic passages and opposed impeller mounting. Ring Section Pumps (models: STN, STB, TMN, TMS) comply with API 610/ISO 13709 Type BB4 standards, with capacities up to 900 m³/h, pressures up to 220 bar, and temperatures up to 200°C. Barrel Pumps (model: BTN) feature a double-casing construction and centerline-mounted design.
- API 685 Sealless Magnetic Drive Pumps: The MDA model fully complies with the latest API 685 edition, providing high performance with capacities up to 1000 m³/h, pressures up to 50 bar, and temperatures ranging from -40℃ to 300℃. Its heavy-duty centerline-mounted construction for API 610 nozzles and back pull-out design ensure ease of maintenance.API 685 Sealless Magnetic Drive Pumps: The MDA model fully complies with the latest API 685 edition, providing high performance with capacities up to 1000 m³/h, pressures up to 50 bar, and temperatures ranging from -40℃ to 300℃. Its heavy-duty centerline-mounted construction for API 610 nozzles and back pull-out design ensure ease of maintenance.
- Pump Systems & Solutions: Provision of container solutions, skid systems, wastewater treatment plants, and water treatment system solutions. Capabilities include the construction of customized systems such as fuel oil forwarding pump skids, sewage systems, water intake/supply systems, and booster stations.Pump Systems & Solutions: Provision of container solutions, skid systems, wastewater treatment plants, and water treatment system solutions. Capabilities include the construction of customized systems such as fuel oil forwarding pump skids, sewage systems, water intake/supply systems, and booster stations.
- International Standard Compliance and High-Quality Technology: Development and manufacturing capabilities for products that strictly adhere to rigorous international standards such as API 610, API 685, and ISO 5199 (ISO 13709). Operation of a stringent quality verification system, including performance, NPSH, and vibration analysis, at its in-house testing facilities.International Standard Compliance and High-Quality Technology: Development and manufacturing capabilities for products that strictly adhere to rigorous international standards such as API 610, API 685, and ISO 5199 (ISO 13709). Operation of a stringent quality verification system, including performance, NPSH, and vibration analysis, at its in-house testing facilities.
- Customized Product Development and Short Lead Times: Agile technological capability to develop and manufacture new products in short periods, meeting diverse customer requirements. Offering competitive pricing and prompt delivery compared to competitors, leading to increased market share.Customized Product Development and Short Lead Times: Agile technological capability to develop and manufacture new products in short periods, meeting diverse customer requirements. Offering competitive pricing and prompt delivery compared to competitors, leading to increased market share.
- Broad Industrial Application and Global Export Reach: Provision of optimized pump solutions for critical industrial sectors including power generation, oil & gas, petrochemicals, chemicals, pulp & paper, and water treatment. Establishment of international technological recognition and reliability through exports to over 30 countries worldwide.Broad Industrial Application and Global Export Reach: Provision of optimized pump solutions for critical industrial sectors including power generation, oil & gas, petrochemicals, chemicals, pulp & paper, and water treatment. Establishment of international technological recognition and reliability through exports to over 30 countries worldwide.
- High-Difficulty Environment Response and Proprietary Technology Development: Possession of heavy-duty design technology capable of handling heads up to 2,400m, capacities up to 15,000 m³/h, and temperatures from -100℃ to 450℃. Strengthening proprietary technology development capabilities, including the founder's adaptation of US, Japanese, and German technologies to create unique models. Position as one of the few companies globally capable of designing for a wide range of pump specifications.High-Difficulty Environment Response and Proprietary Technology Development: Possession of heavy-duty design technology capable of handling heads up to 2,400m, capacities up to 15,000 m³/h, and temperatures from -100℃ to 450℃. Strengthening proprietary technology development capabilities, including the founder's adaptation of US, Japanese, and German technologies to create unique models. Position as one of the few companies globally capable of designing for a wide range of pump specifications.
- Experience in Major Domestic and International Projects: Accumulation of experience in large-scale projects through participation in the Saudi Aramco plant project and Sudan national projects. Securing stable performance by supplying pumps to major power plants, including six domestic public power generation companies and Korea Hydro & Nuclear Power.Experience in Major Domestic and International Projects: Accumulation of experience in large-scale projects through participation in the Saudi Aramco plant project and Sudan national projects. Securing stable performance by supplying pumps to major power plants, including six domestic public power generation companies and Korea Hydro & Nuclear Power.
- Power Generation: Essential equipment for power plants, including boiler feed water pumps, condensate extraction pumps (CEP), cooling water pumps, turbine oil pumps, and seawater pumps.Power Generation: Essential equipment for power plants, including boiler feed water pumps, condensate extraction pumps (CEP), cooling water pumps, turbine oil pumps, and seawater pumps.
- Oil & Gas: Systems for petroleum refining, production and distribution, liquefied gas industry services, and hydrocarbon and water transfer.Oil & Gas: Systems for petroleum refining, production and distribution, liquefied gas industry services, and hydrocarbon and water transfer.
- Petrochemical & Chemical: Heavy-duty chemical processing, chemical industry process engineering, and high-pressure water services.Petrochemical & Chemical: Heavy-duty chemical processing, chemical industry process engineering, and high-pressure water services.
- Water & Wastewater: Water intake, distribution, boosting, circulation, drainage, firefighting, seawater desalination, wastewater treatment plants and systems.Water & Wastewater: Water intake, distribution, boosting, circulation, drainage, firefighting, seawater desalination, wastewater treatment plants and systems.
- Pulp & Paper: Pumps for pulp and paper industry processes.Pulp & Paper: Pumps for pulp and paper industry processes.
- District Heating and Private Power Plants: Equipment for small to medium-sized district heating and private power plants.District Heating and Private Power Plants: Equipment for small to medium-sized district heating and private power plants.
- Other Industries: Various industrial processes such as biogas plants, evaporation and crystallization plants, and desulfurization plants.Other Industries: Various industrial processes such as biogas plants, evaporation and crystallization plants, and desulfurization plants.
- Algeria, Egypt, Ghana, Libya, Sudan, South SudanAlgeria, Egypt, Ghana, Libya, Sudan, South Sudan
- Bangladesh, China, India, Indonesia, Iran, Iraq, Japan, Jordan, Korea, Malaysia, Qatar, Saudi Arabia, Singapore, Sri Lanka, Taiwan, Thailand, U.A.E, VietnamBangladesh, China, India, Indonesia, Iran, Iraq, Japan, Jordan, Korea, Malaysia, Qatar, Saudi Arabia, Singapore, Sri Lanka, Taiwan, Thailand, U.A.E, Vietnam
- Austria, Azerbaijan, Belarus, Bulgaria, Croatia, Russia, SerbiaAustria, Azerbaijan, Belarus, Bulgaria, Croatia, Russia, Serbia
- USA, CanadaUSA, Canada
- Brazil, Chile, ColombiaBrazil, Chile, Colombia
- KT New Excellent Technology (NET) Mark (1996, for high-pressure multi-stage turbine technology)KT New Excellent Technology (NET) Mark (1996, for high-pressure multi-stage turbine technology)
- ISO 9001:2008 Certification (2009)ISO 9001:2008 Certification (2009)
- ISO 14001:2004 Certification (2010)ISO 14001:2004 Certification (2010)
- ISO 45001 Certification (2020)ISO 45001 Certification (2020)
- CE-ATEX Certification (for API 610 Type BB2, VS6, OH2, OH3, BB3 pumps)CE-ATEX Certification (for API 610 Type BB2, VS6, OH2, OH3, BB3 pumps)
- GOST R Certification and Rostekhnadzor Permit (Russia)GOST R Certification and Rostekhnadzor Permit (Russia)
- Authorized Economic Operator (AEO) Certification (2018)Authorized Economic Operator (AEO) Certification (2018)
- Minister of Trade, Industry and Energy Commendation (1997, for excellent capital goods development)Minister of Trade, Industry and Energy Commendation (1997, for excellent capital goods development)
- Ten Million Dollar Export Tower Award (61st Trade Day)Ten Million Dollar Export Tower Award (61st Trade Day)
- KOTRA Quality Assurance Mark (2009)KOTRA Quality Assurance Mark (2009)
- Small Giant Company of Korea Certification (2018)Small Giant Company of Korea Certification (2018)
- Korea World-Class Product Award (2016)Korea World-Class Product Award (2016)
