HAN IL MACHINERY

HAN IL MACHINERY

코로나처리기

Model

Series

Corona Treater


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

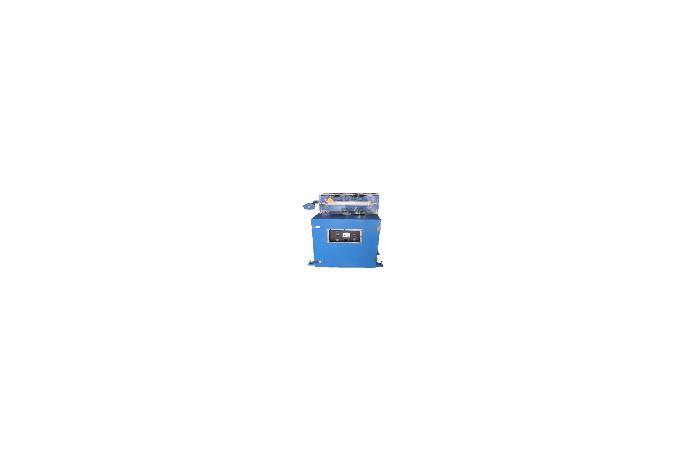

HAN IL MACHINERY 코로나처리기 H-2KF-HS

□ 소재들간의 접착성 향상
□ 각종 인쇄물 및 필름의 인쇄성 강화
□ Increase adhesive power between material.
□ Effective printing for film and other vinyl, wire, etc .





HAN IL MACHINERY 코로나처리기 H-2KF-HS 1

코로나 처리기의 사양
Specifications

 1. Use - Plasma surface treatment
 2. Cap - Outer dia below 10mm
 3. Speed - Max 1,000m/min
 4. Center Height - 1,0000mm
 5. Power - AC220V  2Phase 50/60HZ
 6. Output Pulse - 3∼16KV
 7. Electric Data
     Output Pulse Power  Max 2KW
     Pulse Peak Voltage16KV
     Pulse Peak Current15A
     Maximum Pulse Energy10J
     Pulse Voltage Rising Time< 2nsKV
     Pulse Current Rising Time< 2000A/μs
     Pulse Duration< 1μs
     Pulse Repetition Rate1∼50,000 pps
 8. DisplayAverage Current Display
 9. RectifierSilicon Diode. IGBT Type
10. Net Weight 110Kg
11. Dimension 550x800x1400 (mm)



HAN IL MACHINERY 코로나처리기 H-2KF-HS 2

   1. 상/하 분리형 노즐

   2. 대경용 코로나 노즐
