HAN IL MACHINERY

HAN IL MACHINERY

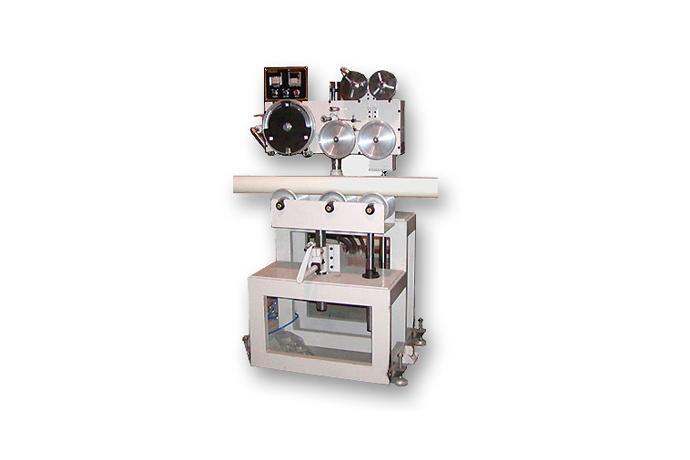

Tape indent length printer for water-pipe

Model

Series

Pipe printer (Gravure & Offset type)


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

Specifications

Use : Tape indent length printer for pipe
applicable : Pipe dia 50 to 500mm
Printing type : Heating tape stamp printing
Line speed : Max. 50m/min
Line center height : 1,000mm
Main wheel : 318mm
Tape : Al coating tape, 10×150mm(about 900m)
Tape reduction : Tape backup ass'y
Drive : None
Power/pneumatin source : AC 220V 50/60Hz 2Ph, min 5.0 psi
Lay out dimension : W 850, B 750, H 1,900mm



Option

1. Caster or Rail
2. Counter set(for Lot No.) : 2.5mm × 4 digits
3. Segment type(metal)



Diagram

HAN IL MACHINERY Tape indent length printer for water-pipe H-201-PE
