FLOWBUS

FLOWBUS

Pneumatic Actuator

Model

Series

Pneumatic Actuators


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

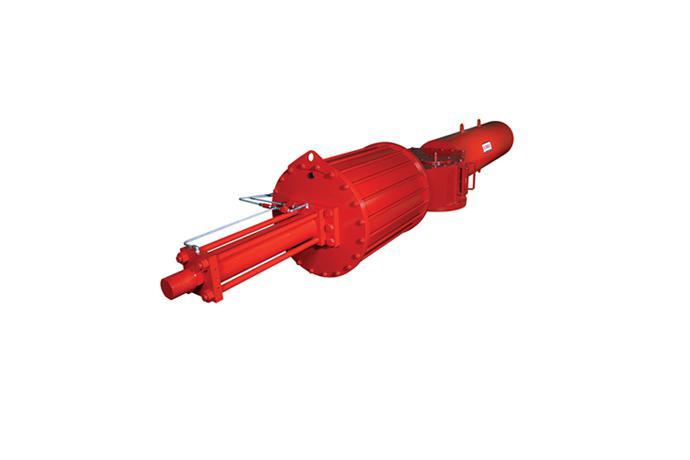

The EPT Series heavy duty scotch yoke actuators are designed for rotary on-off or modulating duty, and can be provided with either symmetrical or canted torque output to suit the duty requirements of the valve. They have been certified to meet SIL 3, 4 ratings in accordance with IEC 61508/61511, which will support plant operations under safety instrumentation systems. The EPT series actuator utilizes both PTFE and rubber seals. The PTFE seal offers a high level of sealing performance and is self-lubricating providing superior wear resistance and extends the life of all sealing components. Specially designed dowel pins in the main actuator main module ensure simple and accurate alignment of models when assembling the actuator or performing maintenance.


ㆍReliable Heavy Duty Design
ㆍPneumatic Air Pressure up to 12bar (170psig)
ㆍTorque Range 398 N.m(3,682inch-lbs) to 800,000 N.m (7,088,000 inch-lbs)
ㆍSymmetric and Canted Scotch Yoke Mechanism
ㆍExternal Tie Rods for Protection the Cylinder Tube
ㆍWear and Corrosion Resistance
ㆍAdvanced Sealing Compounds
ㆍSuitable for Severe Applications

Download

Catalog-FLOWBUS-Pneumatic Actuators-EPT Series
