E-LASER

E-LASER

CO2 laser Glass tube module

Model

Series

Custom Order


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

레이저를 쉽게 자동화 장비에 적용할수 있습니다.
기존 설계한 장비의 PLC나 기타 컨트롤러에 모두 적용 가능하며 특별한 레이저 지식이 없어도 운영이 가능합니다.

DC type Laser 이므로 RF type대비 8배 이상 유지비가 저렴합니다.
또한 단상 220V 전원이면 충분합니다.

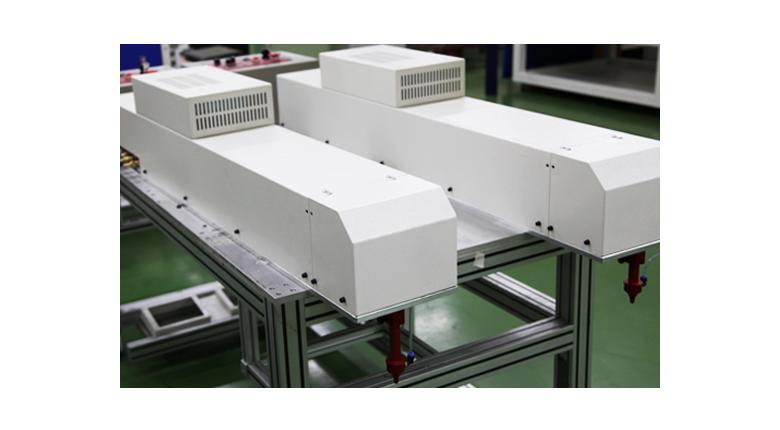

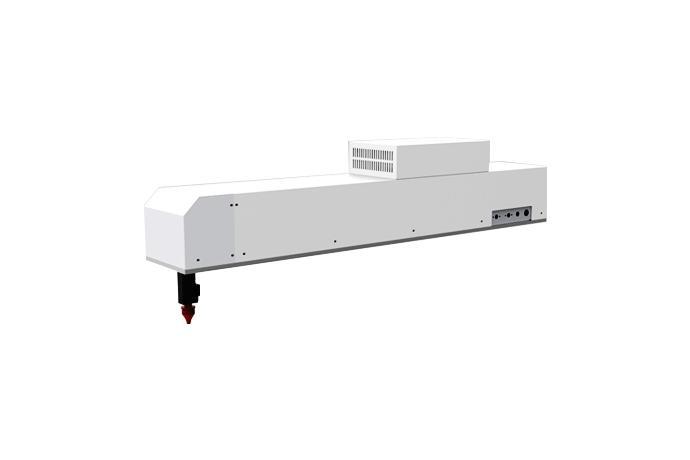

레이저 구동부위는 1개의 모듈 형태이므로 설치가 편리합니다.

이레이저에서 제작한 모듈은 고객의 요구에 따라 제작 가능합니다.



Specifications

ㆍ레이저  CO2 glass tube laser (50W / 60W / 80W / 100W / 120W / 150W / 180W)
ㆍPower supply  glass tube 전용 power supply (레이저 파워에 따라 달라짐)

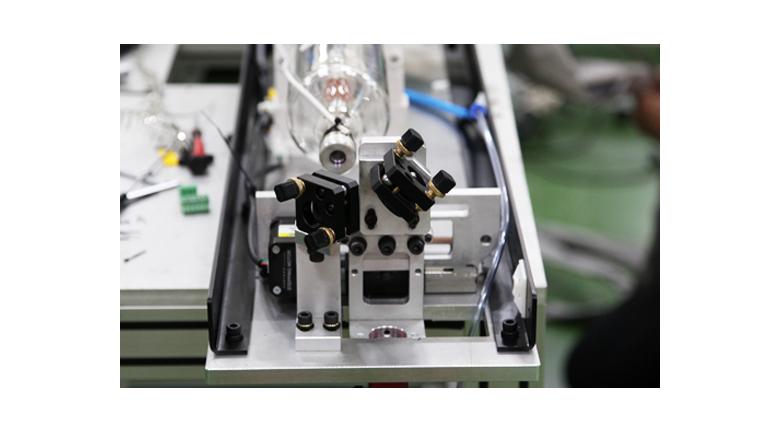

ㆍMirror system  2개 또는 3개로 Laser beam을 제어할 수 있는 mount system

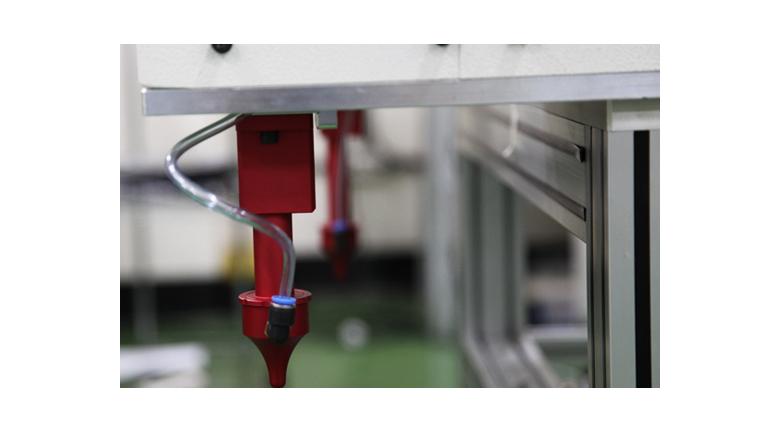

ㆍ레이저 전용 노즐  20⦰ / 25⦰ / 30⦰ size 랜즈 포함 전용 노즐
ㆍ모듈 Size  1400 X 280 X 350mm
ㆍ모듈 중량  30Kg 이하
ㆍ전원  AC 단상 220V 60Hz / AC 삼상 220V 60Hz / AC 삼상 380V 60Hz
