Dream TNS

Dream TNS

-

Model

Series

Ladder Trucks


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

· Model: DLC 56-TL

· Number of section : 9

· Max height for operation
  (Number of floors available for operation): 56M

· Material : High tensile aluminium alloy

· Size: Length: 8990, Width: 2410, Height: 3620 (MM)

· Power source: P.T.O(Vacuum)

· Fuel: Diesel

· Carrier size: 2400x1520x550(Expended)

· Max load: 400kg

· Speed: 60m/min

· Outrigger: Hydraulic 4EA

· Outrigger Slide: Two-stage cylinder (Largest extention length 6,890mm)

· Automatic transfer equipment : Nation's first adoption of SISI 640

· Front auxiliary outrigger: Nation's first adoption of Photoelectric Sensors(Optional)

· Remote Controller: Cable(Standard), Wireless(Optional)

· Mounting vehicle: Hyundai 5ton Mega Truck

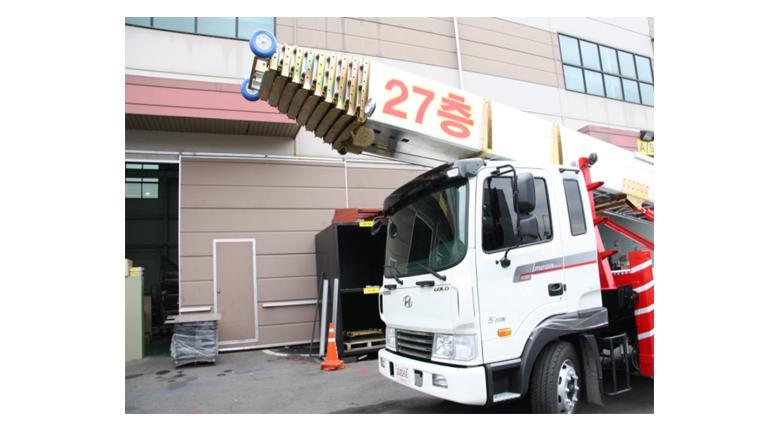

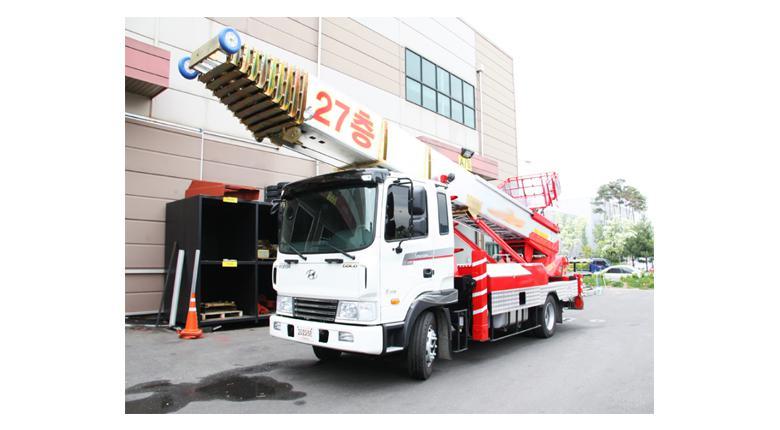

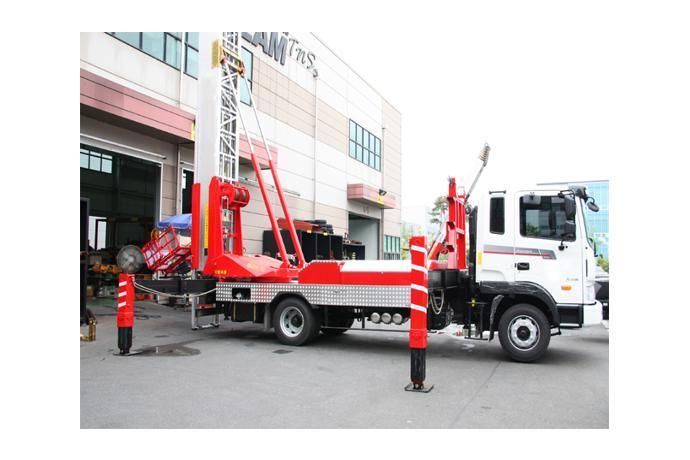

Dream TNS  DLC56-TL


Dream TNS  DLC56-TL 1
