Dream TNS

Dream TNS

Ladder Trucks

Model

Series

Ladder Trucks


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

· Model: DLC 45-XL

· Number of section : 9

· Max height for operation
  (Number of floors available for operation): 45M (Approximately 17 floors)

· Material : High tensile aluminium alloy

· Size: Length: 7715, Width: 2160, Height: 3140 (MM)

· Power source: P.T.O(Vacuum)

· Fuel: Diesel

· Carrier size: 2400x1520x550(Expended)

· Max load: 400kg

· Speed: 60m/min

· Outrigger:  Hydraulic 4EA

· Auxiliary outrigger: Optional

· Automatic transfer equipment : Nation's first adoption of SISI 640

· Front auxiliary outrigger: Nation's first adoption of Photoelectric Sensors(Optional)

· Remote Controller: Cable(Standard), Wireless(Optional)

· Mounting vehicle: Hyundai 3.5ton Mighty GOLD

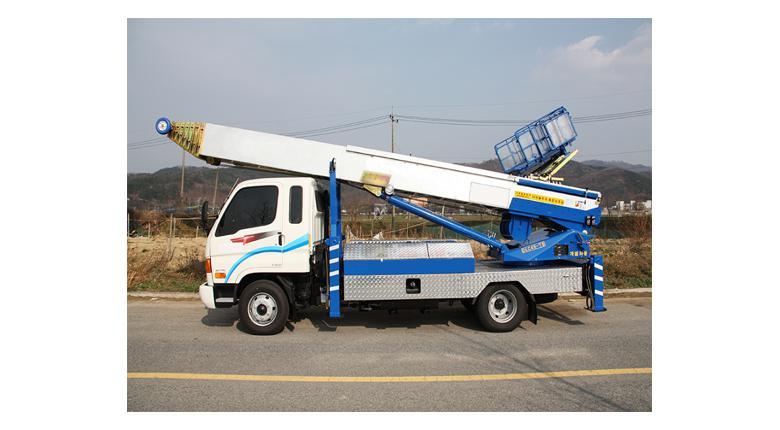

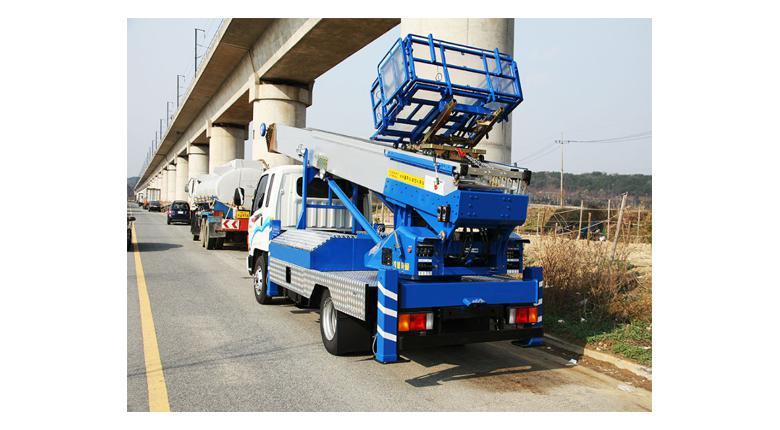

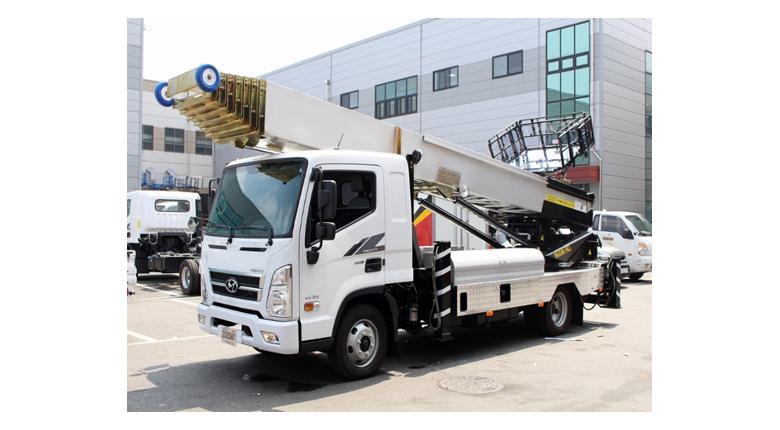

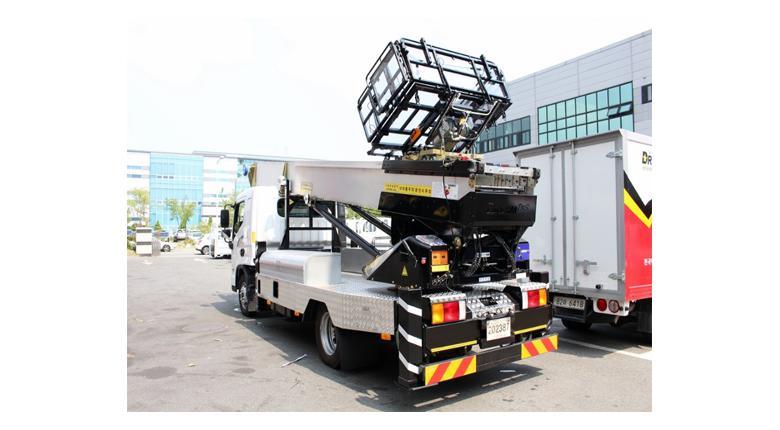

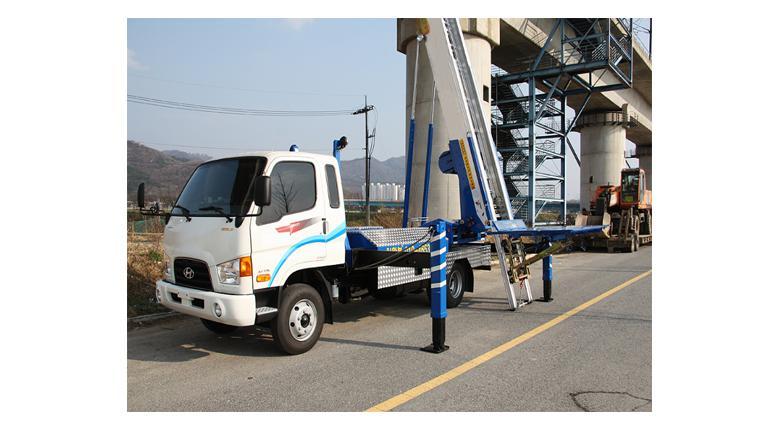

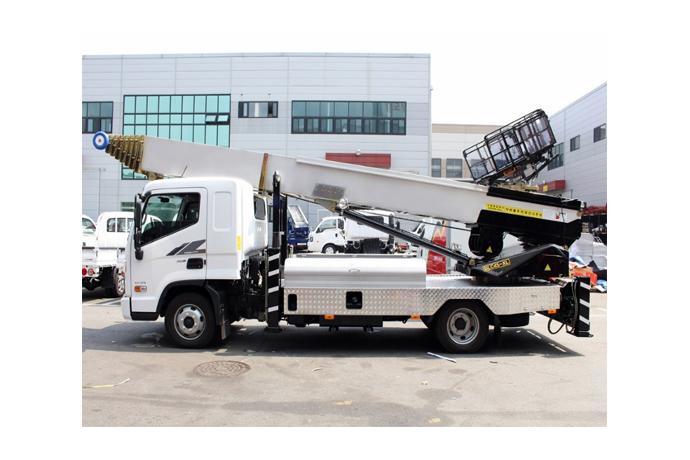

Dream TNS  DLC45-XL


Dream TNS  DLC45-XL 1
