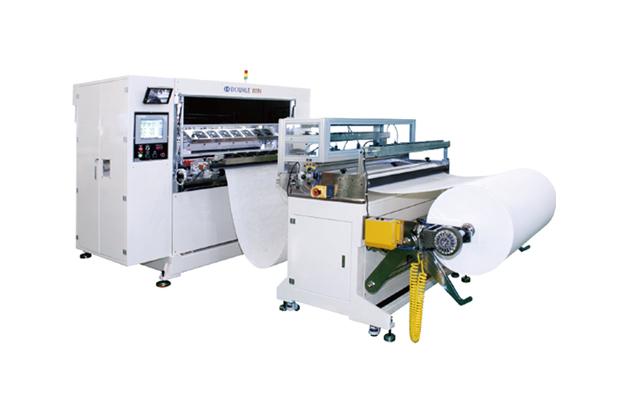

Product Name HEPA PLEATING MACHINE (STANDARD TYPE)
Model DBWH-W700TS, DBWH-W800TS, DBWH-W1000TS, DBWH-W1300TS, DBWH-W1600TS
Series HEPA PLEATING MACHINE
Catalog Catalog-Dobulewin-HEPA PLEATING MACHINE (STANDARD TYPE).pdf
Product Description

This is designed to pleat Glass Fiber Media, Various hot melt dispensing pattern is supported through the installed hot melt applicator system.

SPEC.DBWH-W700TSDBWH-W800TSDBWH-W1000TSDBWH-W1300TSDBWH-W1600TS
MAX. PRODUCTION CAPACITY20M/MIN20M/MIN20M/MIN20M/MIN
20M/MIN
MAX. WIDTH OF MEDIA650MM750MM950MM1,250MM1,550MM
WORKING PLEAT HEIGHT20~100MM20~100MM20~100MM20~100MM25~100MM
MAIN DRIVE MOTOR1.5KW*3P1.5KW*3P
1.5KW*3P
1.5KW*3P
2.25KW*3P
AC SERVO MOTOR220V*1.2KW*3P220V*1.2KW*3P220V*2.0KW*3P220V*3.0KW*3P220V*3.0KW*3P
HOT MELT TANK60KG*2UNITS60KG*2UNITS60KG*2UNITS60KG*2UNITS60KG*2UNITS
HOT MELT ADHESIVE GUN26SETS *2LINES = 52 NOZZLES30SETS * 2LINES = 60 NOZZLES38SETS * 2LINES = 76 NOZZLES50SETS * 2LINES = 100 NOZZLES62SETS * 2LINES = 124 NOZZLES
FEATURE
Touch Screen & PLC Controller (Multilingual Support)
Media Feeding Speed Controlled by Inverter
Servo System
Automatic Height Adjustment
Media Holding by 3 inch air shaft
Media Tension Controlled by Powder Brake System
Cutter Assembly: Air Cylinder Type
Working Media: Glass Fiber (ULPA, HEPA, and Medium)
Pitch of Hot Melt Adhesive Nozzle: 25.0mm (1inch (25.4mm) is optional.)
5 different dispensing pattern
Air Cooling Pressure controlled by Inverter System
Teflon-coated Roller
•Safety Guard System on doors
