Feature
- The work of machine is designed by energy-saving type, and it’s easy to work machine.
- According to mold height, one can use it controlling the open distance of machine.
- As it can be made by multi-stage structure, this machine can improve the productivity by mounting several molds.
- As to the heating mode, it’s possible to apply selectively according to the heating plate size.
- As heater single line unit is installed inside, it’s possible to check whether each heater line is cut or not and whether it works right or not.
- Thanks to the built-in touch screen, one can confirm easily all informations of machine.
- Body casting is over FCD-45, so it is firm and untransformable.
- All specifications of manufacture are changeable on demand of customer.
Specifications
|
항목 |
형식 |
||||||
|
DSAM- |
DSAM- |
DSAM- |
DSAM- |
DSAM- |
DSAM- |
||
|
Clamping Force |
ton |
100 |
150 |
200 |
250 |
300 |
450 |
|
Clamping System |
ton |
직압식 / HY.D-RAM |
|||||
|
Heating Plate |
mm |
400×400 |
450×450 |
500×500 |
550×550 |
600×600 |
800×850 |
|
Day-Light |
mm |
300 |
400 |
400 |
500 |
500 |
600 |
|
Clamping Stroke |
mm |
300 |
350 |
350 |
450 |
450 |
500 |
|
Min Mold Thickness |
min. |
0 |
50 |
50 |
50 |
50 |
100 |
|
Heating Plate Capacity |
kW |
8 |
10 |
12 |
14 |
15 |
28 |
|
Moter Power |
kW |
5.5 |
7.5 |
7.5 |
11 |
11 |
15 |
|
Vacuum Moter Power |
kW |
14 |
18 |
20 |
26 |
27 |
44 |
|
Total Electric Power |
kW |
13.5 |
17.5 |
27 |
29 |
37 |
48 |
|
Overall Dimension |
m |
2.6×1.67×1.81 |
2.9×1.69×1.81 |
3.3×1.6×1.9 |
3.4×1.6×1.9 |
4×2.05×2.2 |
4.9×2.1×2.55 |
|
Machine Weight |
ton |
3.5 |
5.5 |
7 |
9 |
11 |
15 |
NOTE.
These specifications can be changed without any previous notice for improvement of product quality.

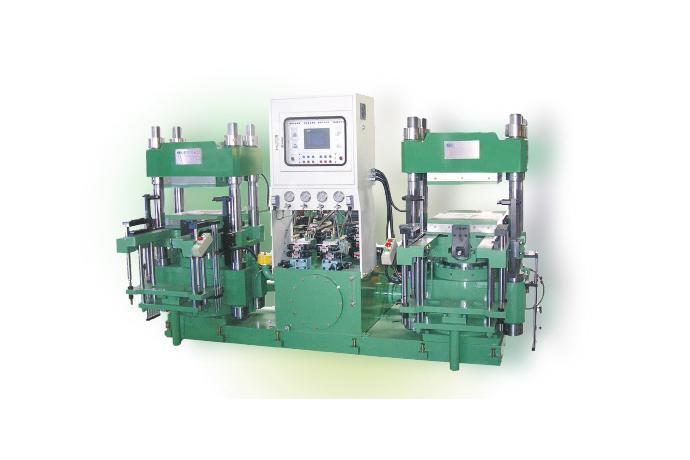

These specifications are for 2 machines/1 set.
It’s possible to manufacture according to the specifications, demanded by customer.
