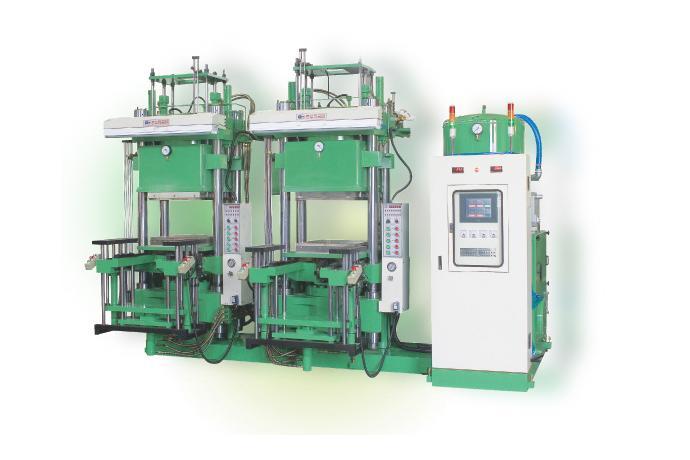

Feature
- By elimination of air and gas within product with the installation of vacuum chamber system, it has rarely badness of product.
- It’s easy to extract the product and clean the mold with selection of method by which the upper and lower molds are opened and closed before operator after completion of molding
- With the installed transfer unit, it is easy to work transfer mold.
- Thanks to low working height, the operator can work without difficulty.
- Working of machine is smooth, and pressure & speed are controlled automatically with regularity into the set-up value by selection of electronic proportion system.
- With touch screen, it can easily confirm the working or trouble state of the machine.
- By installing thermometer inside touch screen, it made the precision of temperature and maintenance easy.
Specifications
|
항목 |
형식 |
||||||
|
DSVM- |
DSVM- |
DSVM- |
DSVM- |
DSVM- |
DSVM- |
||
|
Clamping Force |
ton |
150 |
200 |
250 |
350 |
450 |
650 |
|
Clamping System |
ton |
직압식 / HY.D-RAM |
|||||
|
Heating Plate |
mm |
450×450 |
500×500 |
550×550 |
600×600 |
800×850 |
1000×1000 |
|
Day-Light |
mm |
400 |
400 |
500 |
500 |
600 |
700 |
|
Clamping Stroke |
mm |
350 |
350 |
450 |
450 |
500 |
600 |
|
Min Mold Thickness |
min. |
50 |
50 |
50 |
50 |
100 |
100 |
|
Heating Plate Capacity |
kW |
10 |
12 |
14 |
15 |
28 |
36 |
|
Moter Power |
kW |
7.5 |
7.5 |
11 |
11 |
15 |
15 |
|
Vacuum Moter Power |
kW |
3 |
3 |
3 |
3.7 |
3.7 |
5.5 |
|
Total Electric Power |
kW |
21 |
23 |
29 |
31 |
48 |
57 |
|
Overall Dimension |
m |
3.5×1.83×2.25 |
3.56×1.83×2.25 |
4.05×2.05×2.4 |
4.14×2.88×2.145 |
4.75×2.45×2.95 |
3×3.1×3 |
|
Machine Weight |
ton |
10 |
11 |
12 |
15 |
18 |
20 |
NOTE.
These specifications can be changed without any previous notice for improvement of product quality.
These specifications are for 2 machines/1 set.
It’s possible to manufacture according to the specifications, demanded by customer.
