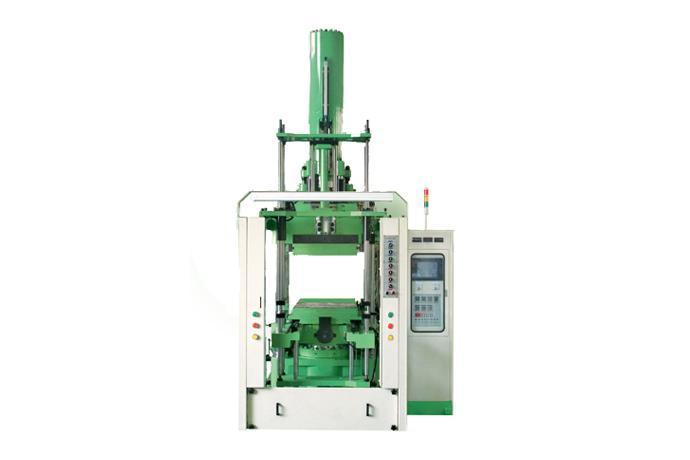

Feature
- With selection of differentiated hydraulic system and electric system, even beginner can operate it easily.
- Using touch screen, it can set up easily the temperature condition and time etc. at each mold giving the number to each mold.
- Remained quantity of rubber maintain the condition of immature molding by cooling up to the nozzle range
- As heater single line equipment are installed inside, it’s possible to check whether each heater line is cut or not and whether heater operate right or not.
- It’s easy to replace the mold thanks to the ball transfer, installed in the low heat plate.
- By L.M bearing, fixed in slide, it can work smoothly.
- To save the power cost and for the precise control, it applied the electronic proportion control system.
Specifications
|
항목
|
형식
|
|
DSIM-
150
|
DSIM-
250
|
DSIM-
300
|
DSIM-
450
|
DSIM-
650
|
DSIM-
1000
|
|
Clamping Force
|
ton
|
150
|
250
|
350
|
450
|
650
|
1000
|
|
Clamping System
|
ton
|
직압식 / HY.D-RAM
|
|
Injection Volume
|
ST’D
|
cc
|
1000
|
2000
|
3000
|
4000~
6000
|
7000~
10000
|
10000~
16000
|
|
Injection Pressure(Max.)
|
kgf/cm2
|
1600 ~ 2000
|
|
Screw Diameter
|
mm
|
40
|
50
|
50
|
60
|
60
|
70
|
|
Screw R.P.M
|
rpm
|
0 ~ 120
|
|
Heating Plate
|
ST’D
|
mm
|
500×500
|
600×600
|
650×650
|
800×900
|
1000×1000
|
1200×1200
|
|
Day-Light
|
mm
|
550
|
600
|
700
|
800
|
900
|
1000
|
|
Clamping Stroke
|
mm
|
450
|
500
|
500
|
550
|
650
|
750
|
|
Min Mold Thickness
|
min.
|
100
|
100
|
100
|
150
|
250
|
250
|
|
Heating Plate Capacity
|
kW
|
12
|
15
|
18
|
28
|
38
|
46
|
|
Moter Power
|
kW
|
11
|
11
|
15
|
15
|
22
|
30
|
|
Total Electric Power
|
kW
|
30
|
32
|
38
|
53
|
70
|
90
|
|
Overall Dimension
|
m
|
1.7×2.5×3.0
|
2.0×2.5×3.4
|
2.0×2.7×3.7
|
2.5×3×4.0
|
2.7×3.0×4.3
|
4.2×5.5×5.5
|
|
Machine Weight
|
ton
|
7
|
8.5
|
10
|
18
|
23
|
46
|
NOTE.
These specifications can be changed without any previous notice for improvement of product quality.
These specifications are for 1 machines/1 set.
It’s possible to manufacture according to the specifications, demanded by customer.
